ELECTRICAL ADJUSTMENT PROCEDURE

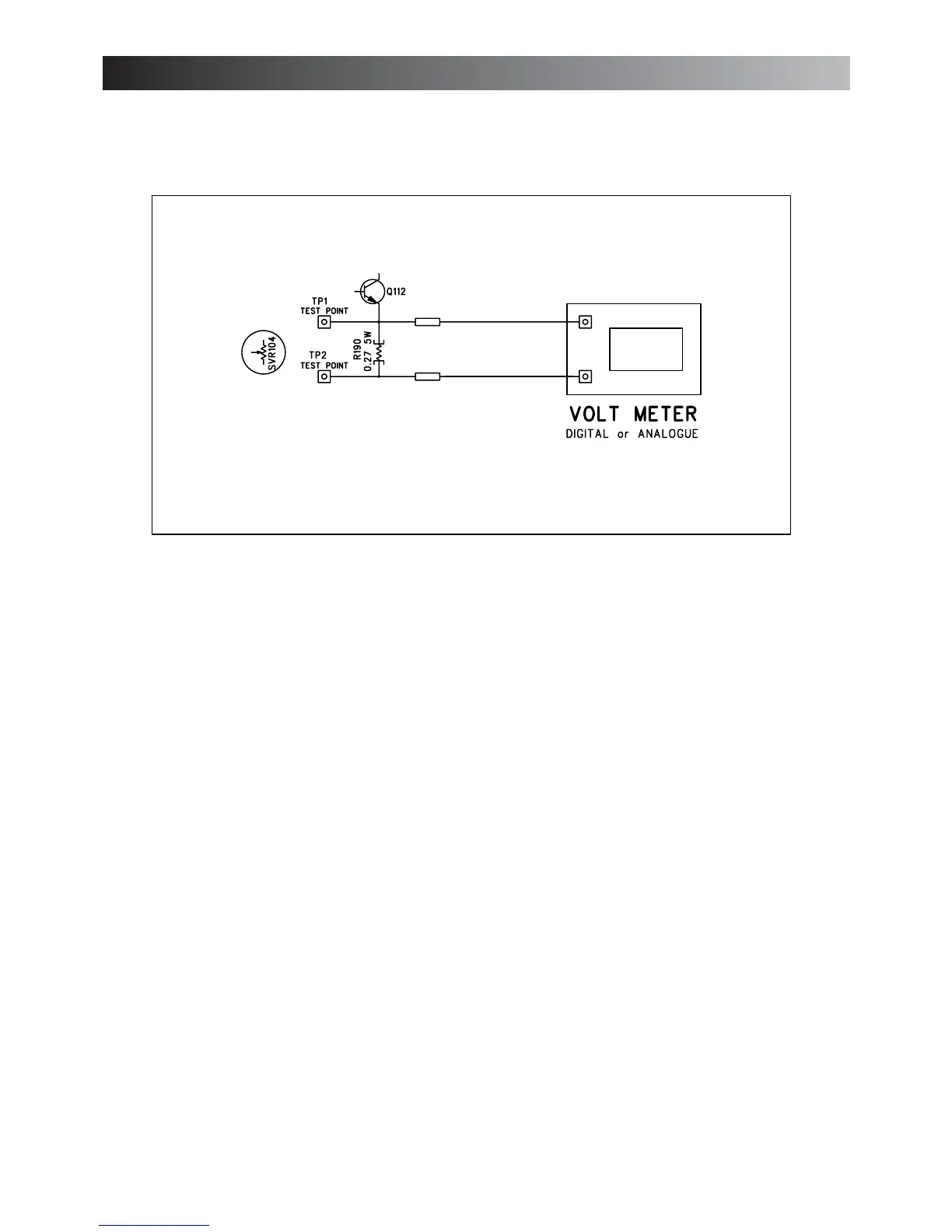

1. Connection
2. Adjustment
- Adjust SVR104 so that the current through the R190 become 4~7mV.
When that voltage across the Positive “TP1” to Negative “TP2” becomes 4~7mV,
the current becomes 15~26mA.
