Interklima Dx Cassette Units
II-IO CCV1 R410A / Rotary / Scroll
15

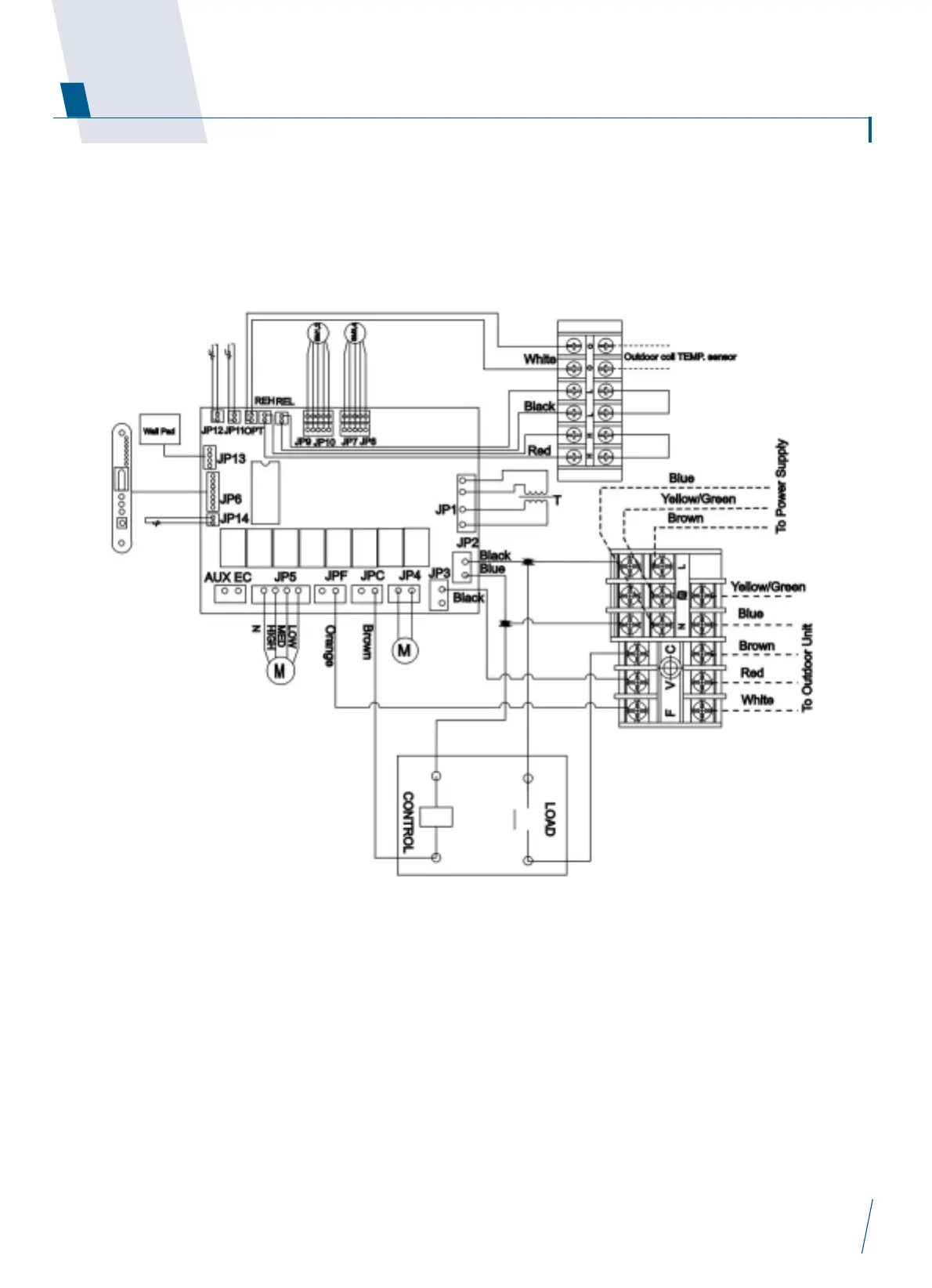

Wiring Diagrams4.
Legend:
JP1 Transformer
JP2 Power
JP3 Reversing Valve
JP4 Pump
JP5 Indoor Fan
JP6 Remote Receiver
JP7 Stepping Motor
JP8 Stepping Motor
JP9 Stepping Motor
JP10 Stepping Motor
JP11 Indoor Temp Sensor
JP12 Indoor Coil TEMP Sensor
JP13 Wall Pad
JP14 Float Switch
JPC Compressor
JPF Outdoor Fan
OPT Outdoor Coil TEMP Sensor
REH High Pressure Protector
REL Low Pressure Protector
AUX EC Electric Heater
II09/12/18/24C (Indoor Unit)
With/Without Outdoor Fan Speed Control
To Next Page
