Interklima Dx Cassette Units
II-IO CCV1 R410A / Rotary / Scroll
29

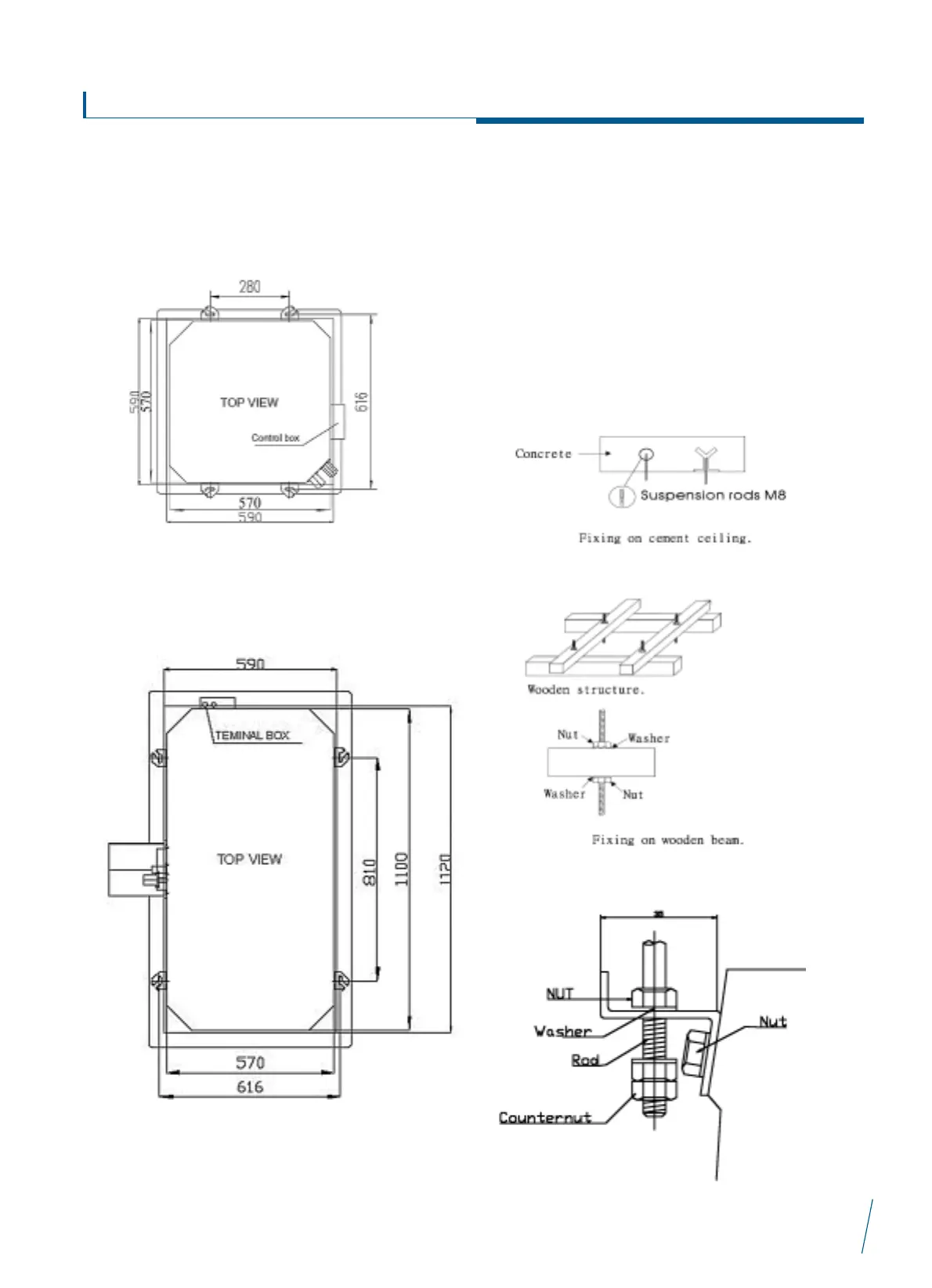

Installation method
Cassette Unit
ñ Using the installation template open ceiling panels and install
the suspension bolts as in Fig.6 below
590 x 590: Dimensions for opening
616 x 280: Suspension Bolts
MODELS II09/12/18/24CCV1
590 x 1120: Dimensions for opening
517.5 x 1047.5: Suspension Bolts
MODELS II-25/30/35/40/50CCV1
Opening Dimensions and Positions for Suspension Bolts
ñ Mark position of suspension rods, piping lines and
condensate drain pipe, power supply cables and remote
control cable.
Supporting rods can be fixed, depending on the type of
ceiling, as shown in Fig. 7 and Fig.8.
ñ Fit suspension brackets supplied with the unit to the threaded
rods (Fig.9).
Do not tighten nuts and counter nuts; this operation has to
be done only after final leveling of the unit, when all the
connections have been completed.
Fig. 6
Fig. 7
Fig.9
Fig. 8
