Interklima Dx Cassette Units
II-IO CCV1 R410A / Rotary / Scroll
34
have to make sure the float switch is not hung up inside the unit
and you will have to loosen it by hand.
2. Make sure that air filter is clean and properly installed.
3. Ensure that voltage and current values correspond with the
unit nameplate values; check electrical connections.
4. Verify that air outlets are not closed.

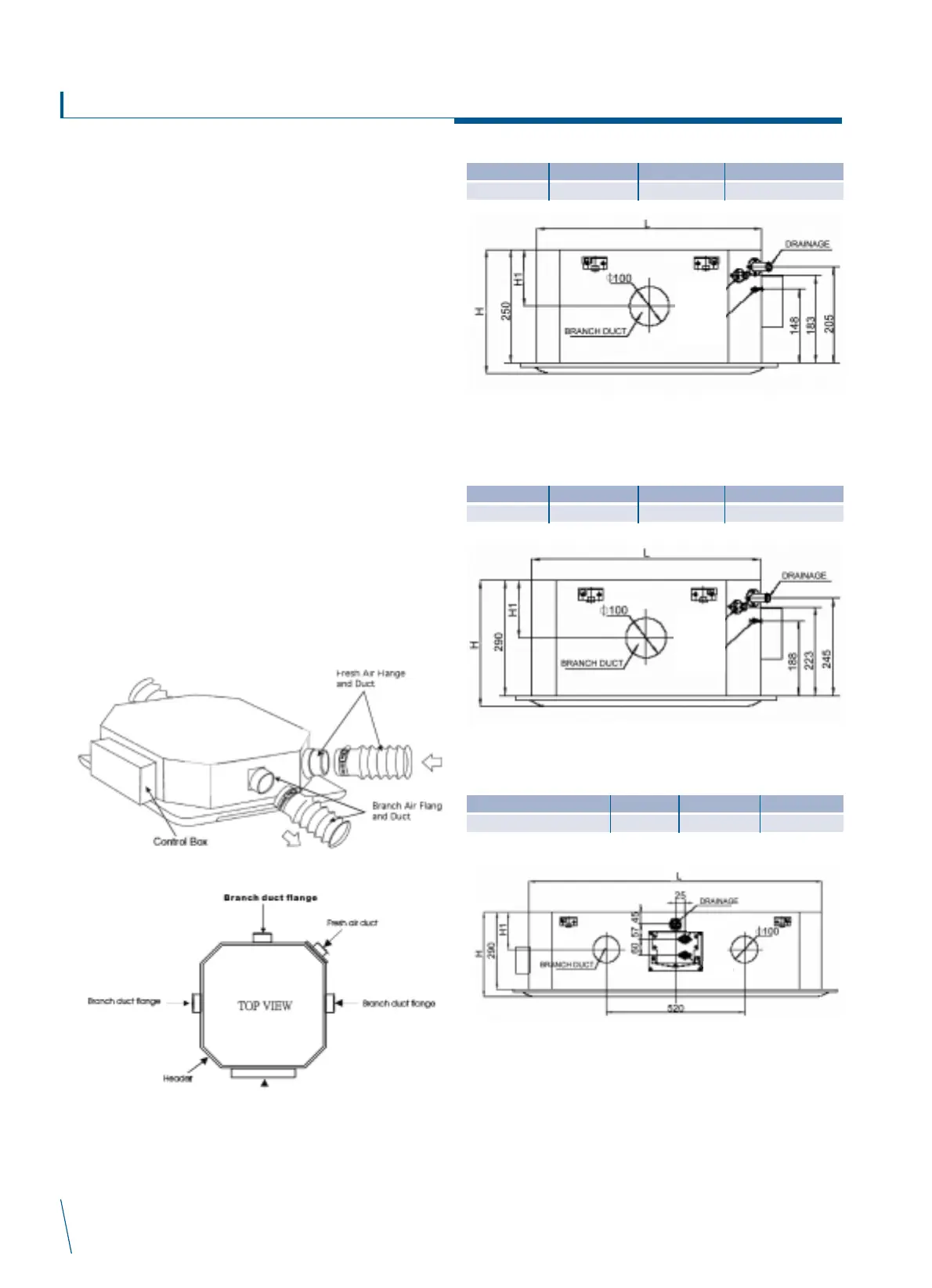

FRESH AIR RENEWAL AND BRANCH DUCTING
1. The side opening allows separate ductwork to be installed for
outside air intake and branch ducting. See Fig.26
2. Cut and remove anti-condensate insulating material.
3. Install your flanges and conduits to casing. Conduit can be
flexible polyester with spring core or corrugated aluminium
externally coated (dia.4 in.) with anti-condensate material
(fiberglass 12-25 mm thickness).
Fresh air - There is one (1) opening for connecting a fresh air
duct for II-09/12/18/24CCV1,
There are two (2) openings for connecting fresh air
ducts for II-25/30/35/40/50CCV1.
Branch air- II-09/12/18/24CCV1: Two(2) openings each.
II-25/30/35/40/50CCV1: Four (4) openings each.
Order flanges (spigots) and blanking plates as
accessories separately.
NOTE:
- Branch duct flange (Optional part)
- Fresh air duct flange (Optional part)
- Blanking plate (Optional part)
Fig.26
MODEL L H H1
II 09/12CCV1 570 278 125
MODEL L H H1
II 18/24CCV1 570 318 145
MODEL L H H1
II 25/30/35/40/50CCV1 1100 318 140
