Selection location
ñ Do not install the unit in rooms where flammable gas or
alkaline acid substances are present.
Aluminum/copper coils and/or internal plastic components
can be damaged irreparably.
ñ Do not install in workshops or kitchens; oil vapors drawn in by
treated air might deposit on the coils and alter their
performance or damage the internal plastic parts of the unit.
ñ Installation of the unit will be facilitated by using a stacker and
inserting a plywood sheet between the unit and the elevated
stacker.(Fig.2)

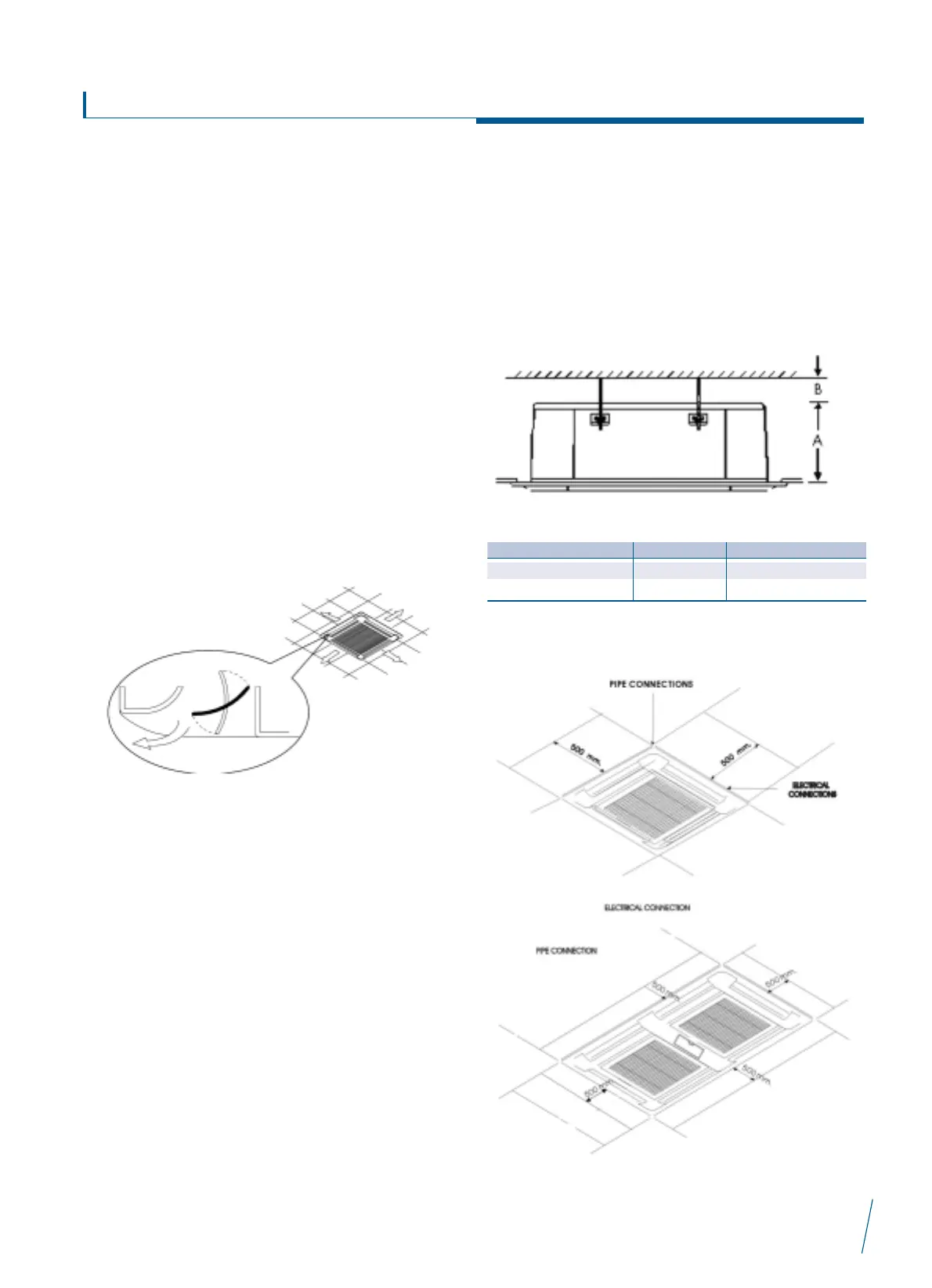

ñ It is recommended to position the unit as centrally as possible
in the room to ensure optimum air distribution. (Fig.3)
Generally the best louver position is the one which allows air
diffusion along the ceiling.
Alternatively intermediate positions can be selected.
ñ Check that it is possible to remove panels from ceiling in the
selected position, to allow enough clearance for maintenance
and servicing operations.
Installation location
Install the unit in a position:
ñ Having sufficient strength to carry the weight of the unit.
ñ Where the inlet and outlet grilles are not obstructed and the
conditioned air is able to blow all over the room.
ñ From where condensate can be easily run to drain.
ñ Check the distance between the upper slab and false ceiling to
ensure the unit will suit the distance. See Fig.4
ñ Ensure there is sufficient space around the unit to service it.
See Fig.5
Interklima Terminal Units
PCE -VS ñ Hydronic cassette
17
