Interlogix Simon XT Quick Operation Guide

4 Simon XT Talking Touch Screen Quick Operation Guide
Avoid touching the touch screen face while you are
replacing the batteries.
3. Briefly disconnect the AC power (this will clear the battery
fault).
4. Reconnect AC power.
Note: If AC power is lost and batteries are not present or are
depleted, the touch screen will not power up until AC power is
restored (even if new batteries are installed).
Cleaning the touch screen
If necessary, use a soft cloth to clear smudges on the screen;
do not use glass cleaner on the screen.
Reset button
The Reset button is located on the bottom left side of the touch
screen mounting plate. To power cycle the touch screen, use a
toothpick to depress the recessed Reset button.

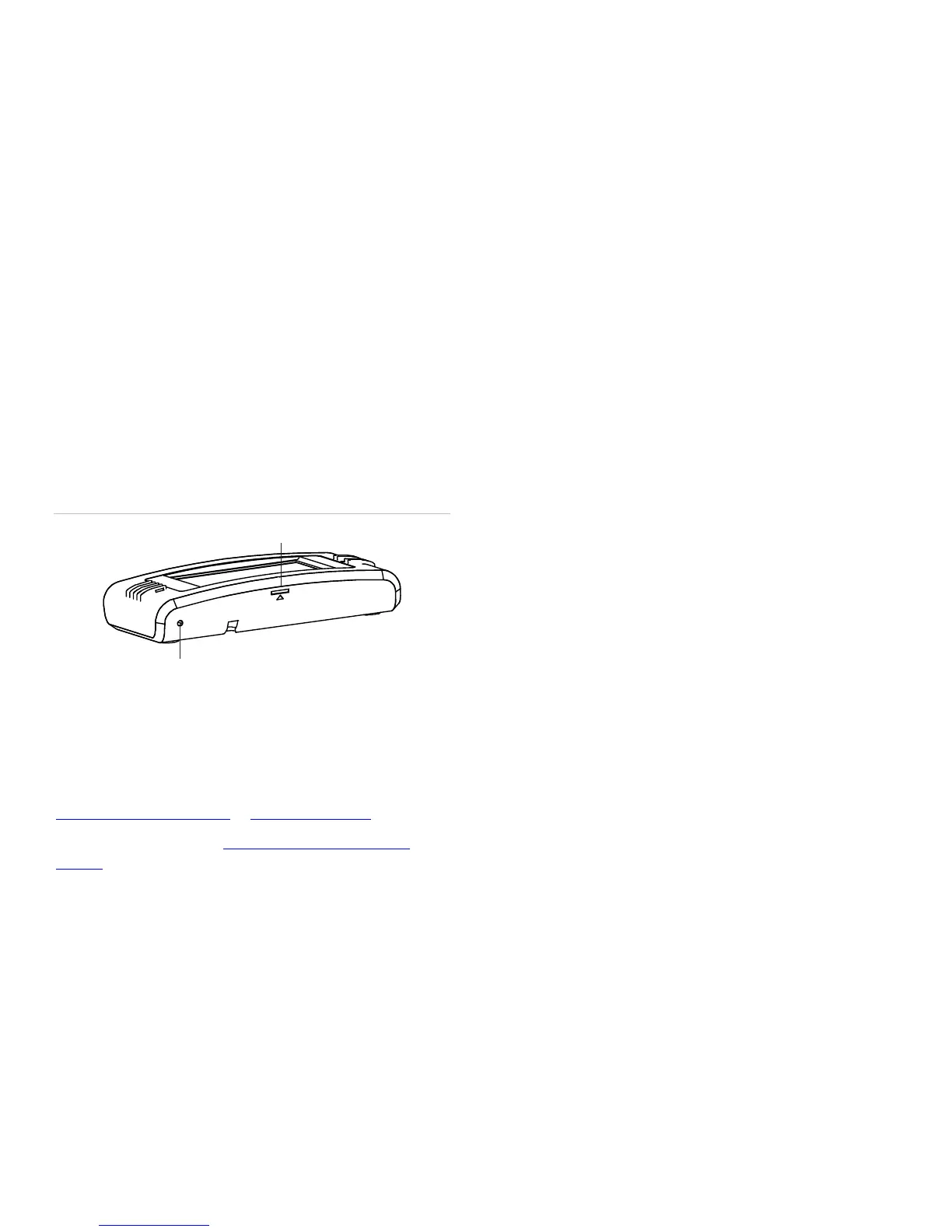

Figure 1: Reset button
Opening slot
Reset button
Note: Dispose of the touch screen only in accordance with
local regulations.
Contact information
www.utcfireandsecurity.com or www.interlogix.com
For customer support, see www.interlogix.com/customer-
support
© 2013 UTC Fire & Security Americas Corporation, Inc.
Interlogix is part of UTC Climate Controls & Security, a unit of
United Technologies Corporation. All rights reserved.

Interlogix Simon XT Specifications

Power

power requirements	6V nominal
standby current	30mA (10mA in PowerSave Mode)
peak current	1.7 A

Operating Environment

operating temperature	32 to 120°F (0 to 49°C)
storage temperature	-30 to 140°F (-34 to 60°C)
max. relative humidity	90% non-condensing

Dimensions

height	4 1/16 in.
width	1 7/8 in.
