Digital Command Control (DCC) Installation & Operation:
Your N Scale AC-8/10/11/12 is equipped with a 10 pin NMRA compliant plug for the installation of a decoder
in your locomotive. The following instructions will guide you in the installation of your decoder. To install a
decoder in your AC-8/10/11/12 locomotive requires only the removal of the tender body.
1.Prepare the locomotive by placing it on a protected surface. The foam pad included in your presentation
package would work just fine.

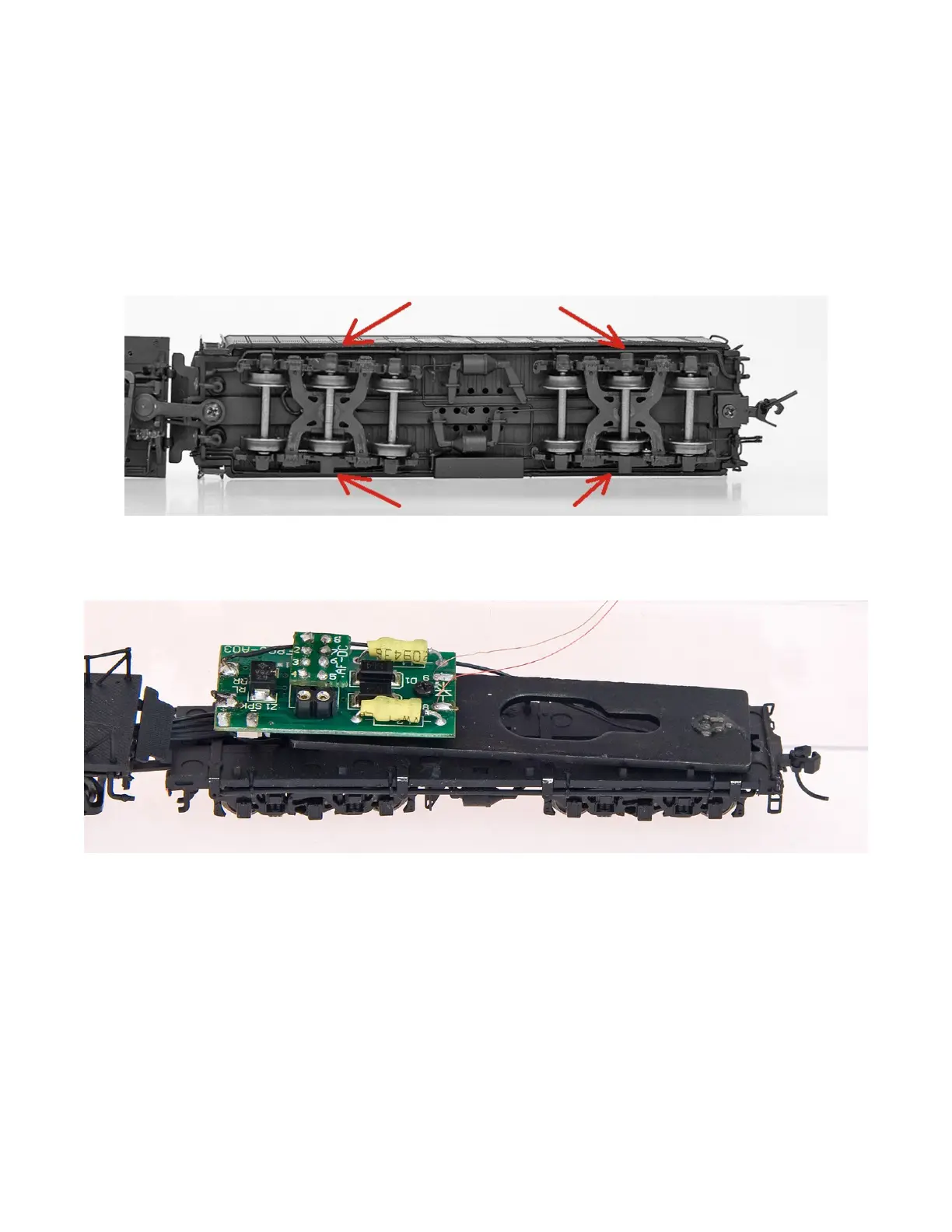

2.Remove the tender body by inserting a flat tool between the edges of the body and sliding it back and forth.
This will release the body from the base frame. You will need to do this on both sides.
3.Remove the tender body, being careful not to pull on the tender light wires.
AC-12 LokSound Documentation Insert - V2.3.odt
4
