SSEETT--UUPP IINNSSTTRRUUCCTTIIOONNSS
POOL SET UP (continued)
This pool may have been purchased with the Intex Krystal Clear™
filter-pump. The filter-pump has a separate set of installation instructions
and is to be set-up after assembling this unit.

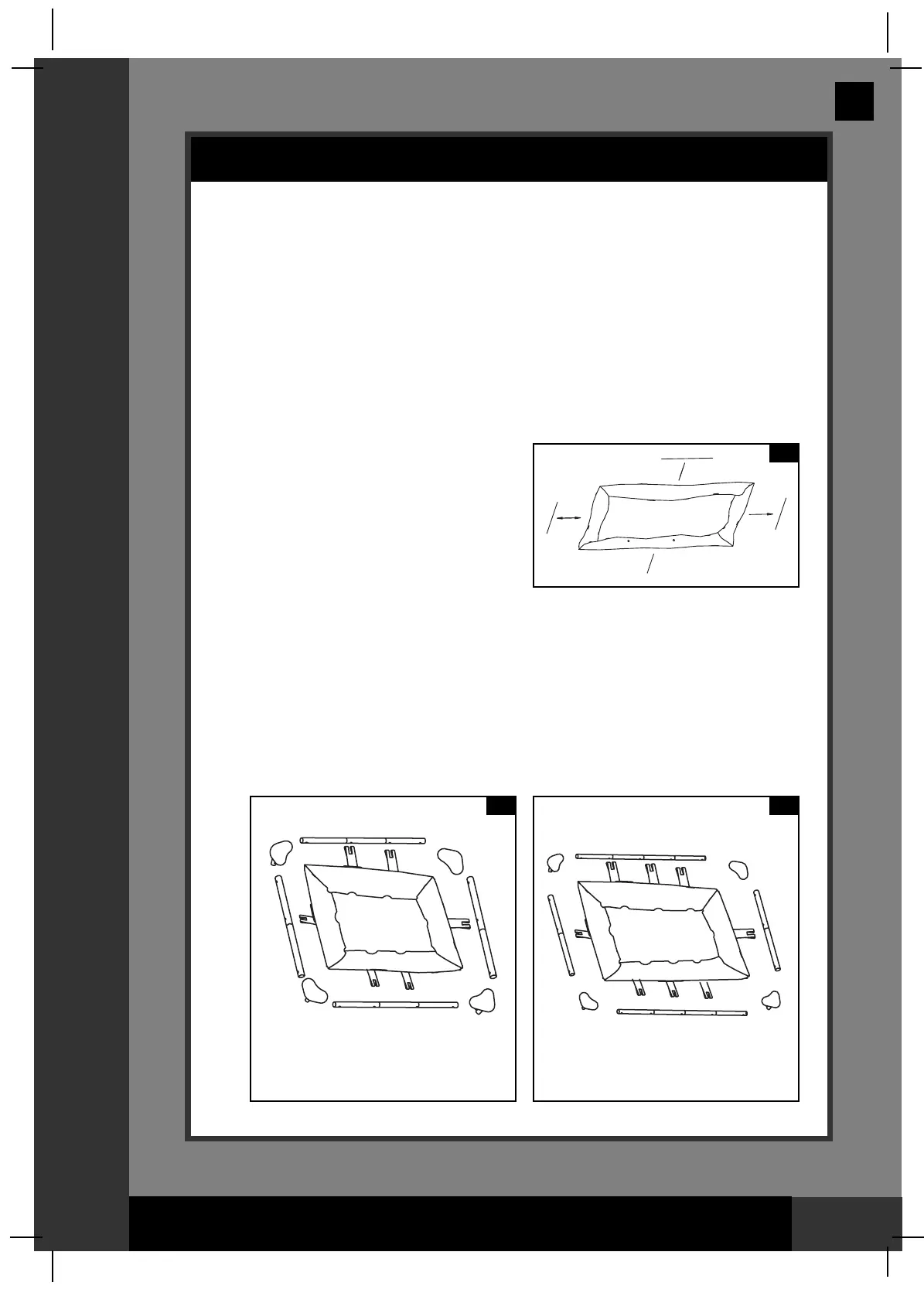

1. • Find a flat, level location that is free and clear of stones, branches or other sharp
objects that may puncture the pool liner or cause injury.
• Open the carton containing the liner, joints, legs, etc., very carefully as this carton can
be used to store the pool during the winter months.
• Remove the liner (12) from carton and spread it out over the ground cloth with the
drain valve towards the draining area. Place the drain valve away from the house.
Spread it out completely with its edges being at least 5 - 6’ (1.5 - 2.0 m) from any
obstacle such as walls, fences, trees, etc.
Open it up to warm it in the sun. This
warming will make installation easier. Be
sure to face the end with the 2 hose
connectors towards the electrical power
source.
IMPORTANT: Do not drag the pool liner
across the ground as this may result in
leaks or other damage (see drawing 1).
• During the set-up of this pool liner point the hose connections or openings in the
direction of the electric power source. The outer edge of the assembled pool is to be
within reach of the electrical connection for the optional filter-pump.
2. Remove all the parts from the carton(s) and place them on the ground in the location
where they are to be assembled. Check the parts listing and be sure all the pieces to be
assembled are accounted for (see drawings 2.1 & 2.2).
IMPORTANT: Do not start assembly if any pieces are missing. For replacement
pieces call the Consumer Service telephone number in your area.
After all pieces are accounted for, move the pieces away from the liner for of installation.
1
ELECTRICAL SOURCE
LINER
5 - 6'
(1.5 - 2.0 m)
5 - 6'
(1.5 - 2.0 m)
5 - 6'
(1.5 - 2.0 m)
2.2
(A)(A) (A)(B)
(A) (A) (A) (B)
(C)
(D)
(C)
(D)
177-1/4” X 86-5/8” X 33-1/2”
2.1
(A)(A)
(B)
(A)
(A)
(C)
(D)
(C)
(D)
(B)
86-5/8” X 59” X 23-5/8”
102-1/2” X 63” X 25-5/8”
118” X 78-3/4” X 29-1/2”
