Page 33

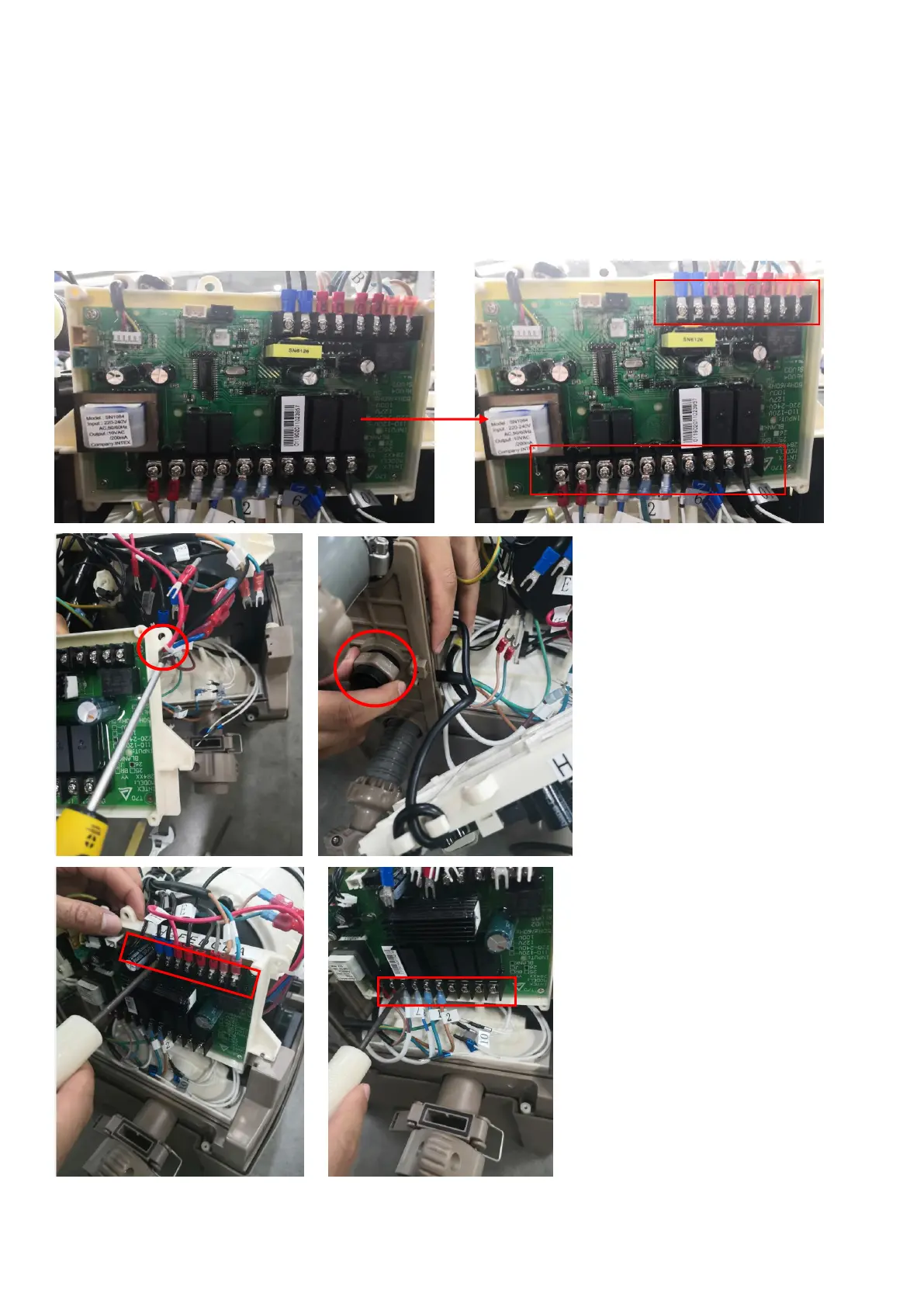

How to replace PCB
1. Refer to the instruction of Opening the Control Base to remove the screws and open the cover.
2. Remove the 2 screws that secure the white PCB cover to reveal the PCB. Once PCB internal layout is
appearing. There are two screws to hold the entire PCB parts.
3. Disconnect all the sensors / input terminals and all the around the PCB. Cut off the nylon belt which
secures the internal wiring to the board. Rotate the brown cover to detach the black cord.
