91PO
SAVE THESE INSTRUCTIONS
(91PO) 48” 2-SECTIONS POOL LADDER ENGLISH 7.5” X 10.3” PANTONE 295U 07/16/2015
English
Page 4

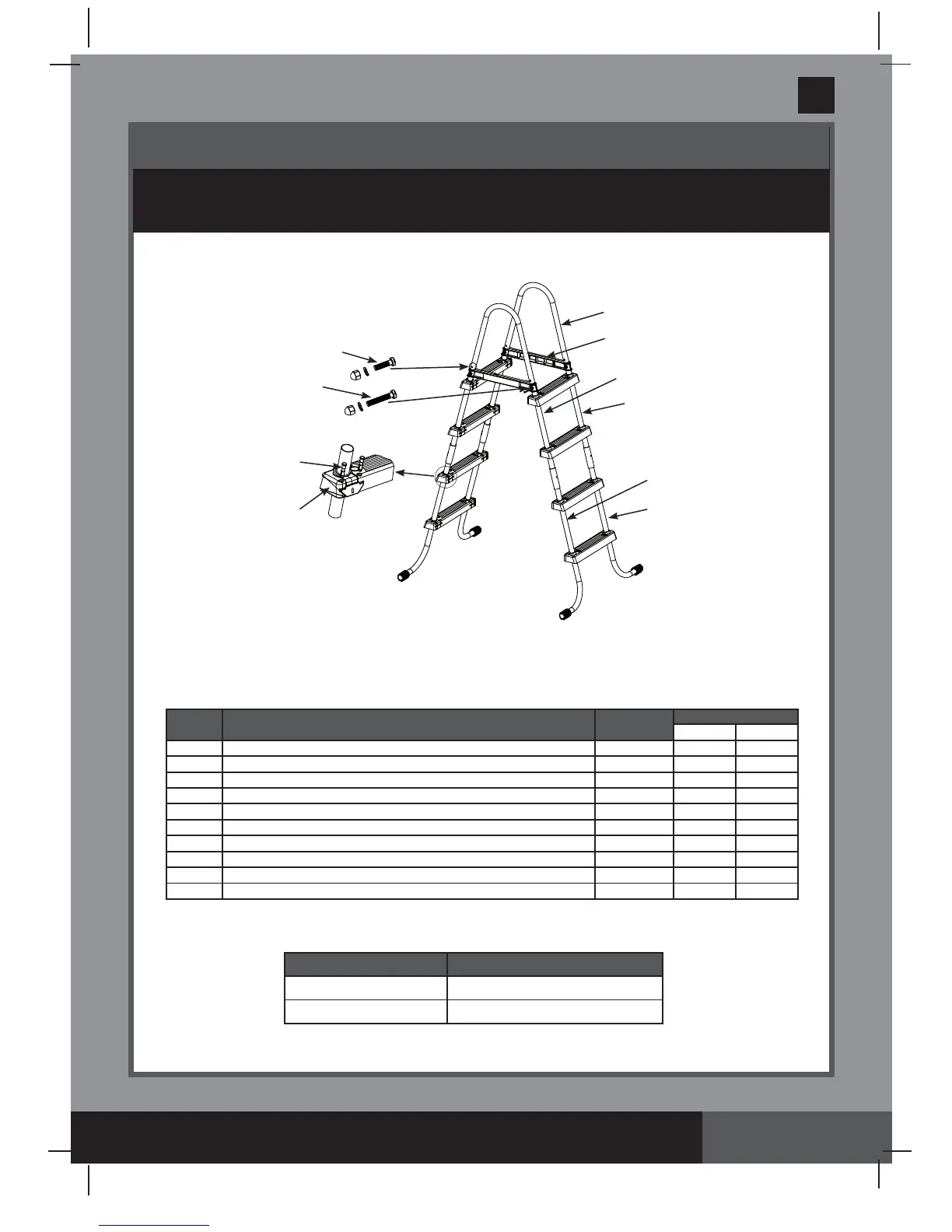

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
NOTE:
Drawings for illustration purpose only. Actual product may vary. Not to scale.
REF.
NO.
DESCRIPTION QUANTITY
SPARE PART NO.
#28062 #10903
1 U-SHAPED TOP RAIL 2
11167 11171
2 TOP BRACE 2
11168 11172
3
SHORT FASTENER FOR U-SHAPED TOP RAIL (WITH 1 EXTRA)
5
10810 10810
4
LONG FASTENER FOR TOP BRACE (WITH 1 EXTRA) 5
10227 10227
5
STEP MOUNTING PIN (WITH 2 EXTRA) 34
10349 10913
6
STEP 8
10348 10914
7
UPPER SIDE LEG (MARKED “A”) 2
11553A 11555A
8
UPPER SIDE LEG (MARKED “B”) 2
11553B 11555B
9
LOWER J-SHAPED SIDE LEG (
MARKED
“A”)
2
12266A 12267A
10
LOWER J-SHAPED SIDE LEG (
MARKED
“B”)
2
12266B 12267B
1
3
4
7
9
10
6
8
2
5
48” (122 cm) model
This ladder is designed and manufactured for Intex pool wall height:
Item # Pool Wall Height
28062 (white & blue) 48in (122 cm)
10903 (silver & white) 48in (122 cm)
To Next Page
