(92IO) 52" 2-SECTIONS POOL LADDER ENGLISH 7.5” X 10.3” PANTONE 295U 05/28/2012
92A
SAVE THESE INSTRUCTIONS
Page 7
English
SETUP INSTRUCTIONS
LADDER SETUP (continued)

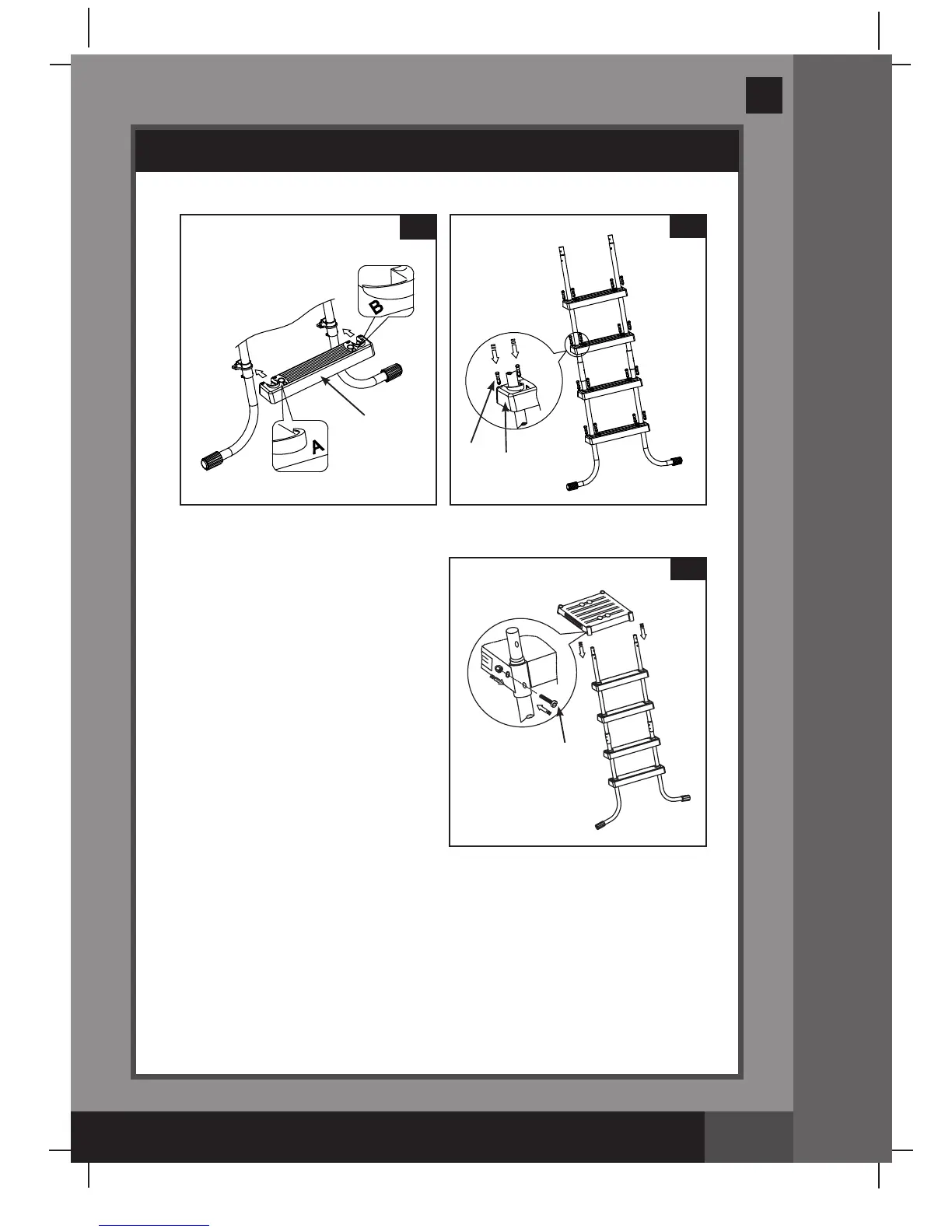

3. STEP INSTALLATION (refer to figures 2.1 through 2.2):
IMPORTANT: Make sure all pins are securely locked.
4. TOP PLATFORM INSTALLATION –
ONE SIDE AT A TIME (refer to
figure 3):
Identify hole “A” and hole “B” on the top
platforms (2), marked accordingly at
each corner. Slide the top platforms
over the legs, making sure hole “A” of
one corner of platform slides over leg
“A” and hole “B” of the other corner of
platform over leg “B”. The small holes
on the side of platform should align with
the lower holes on the legs. Fasten each
platform to the legs using the longer
fasteners/screws (4). Do not yet attach
the other side of the ladder to the top
braces – this assembly step will follow
later.
3
A
A
B
2.1
A
B
6
2.2
A
B
5
6
4
To Next Page
