(173PO) 12 VOLT TROLLING MOTOR ENGLISH 7.5” X 10.3” 05/21/2012
173
PO
SAVE THESE INSTRUCTIONS
Page 4

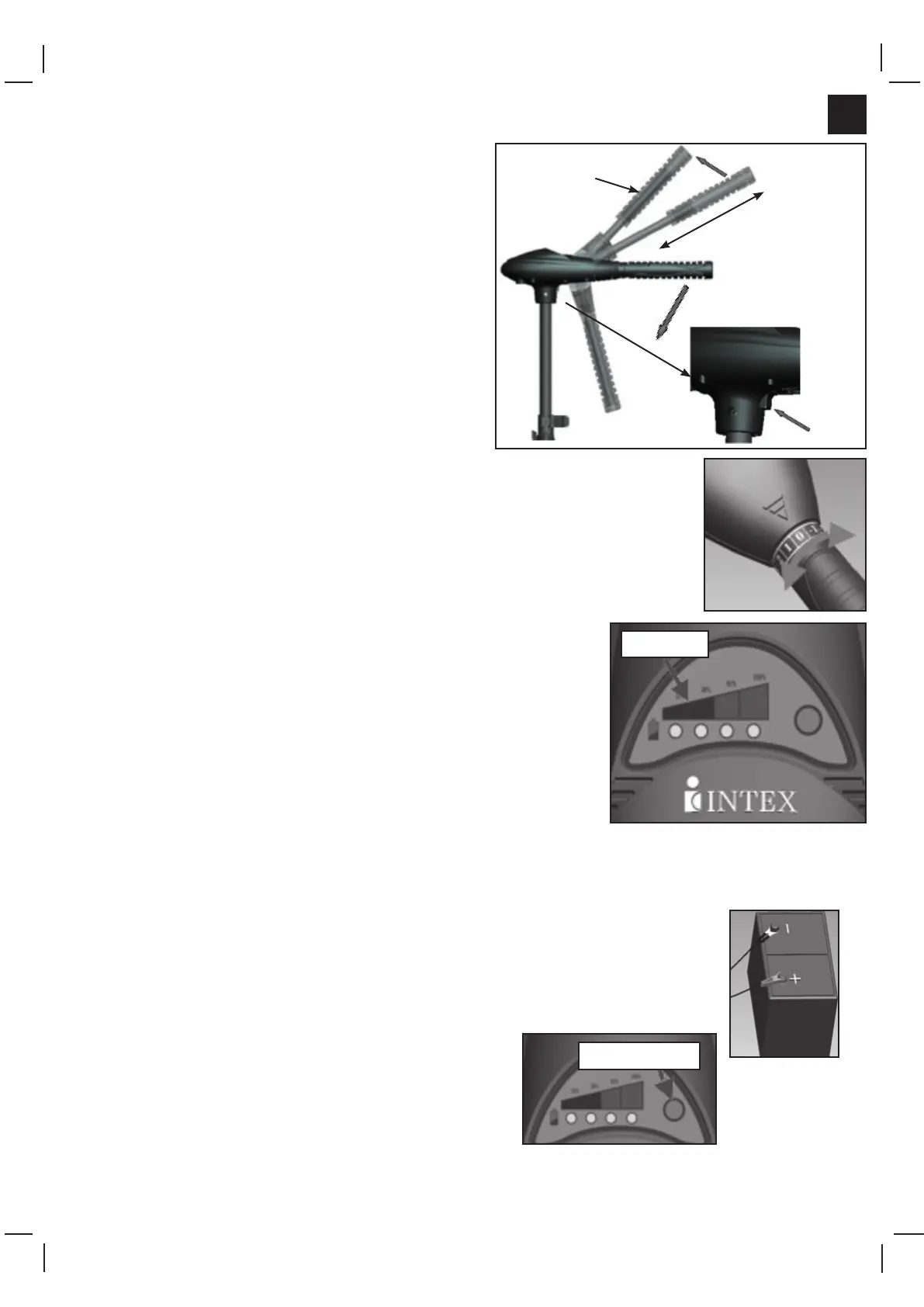

Tilt and extension handle adjustment and operation
IMPORTANT: To use the downward position, you
must press the release button located on the
underside of the pivot handle, and then push the
desired position.
the desired length position. The handle extends a 6
inches (15.2cm).
meets the face of the control box head.
Switch ON/OFF and speed adjustment
There are 5 forward speeds (1, 2, 3, 4 and 5) and 3
reverse speeds (-1, -2 and -3)
speed accordingly.
accordingly.
IMPORTANT:
Battery requirement and connection
IMPORTANT: For best result use a deep cycle marine 12 volt battery
(not included) with at least 60 ampere hours rating.
2. Connect the positive (+) red wire to the positive (+) battery terminal.
3. Connect the negative (-) black wire to the negative (-) battery
terminal.
The battery meter on the control box panel provides an indication of the
indicates that the battery must be recharged.
NOTICE: Maintain battery at full charge. Failure to recharge the battery within 12-24 hours is the leading
cause of premature battery failure. Proper care will ensure having battery power when you need it and
improve the battery life. Check with your local marine battery supplier for further details.
WARNING
Weed escape control button
propeller will rotate back and forth to disentangle itself from
the weeds.
NOTICE:
then press the weed escape button.
Battery meter
Tilt / twist / tiller
extension handle
Release
button
75
o
173
PO
Weed escape button
