Intex cl1704 User Manual

(286PO) RECHARGEABLE HANDHELD VACUUM ENGLISH SIZE: 4.875” X 7.25” 08/23/2015
286
PO
SAVE THESE INSTRUCTIONS
Page 2

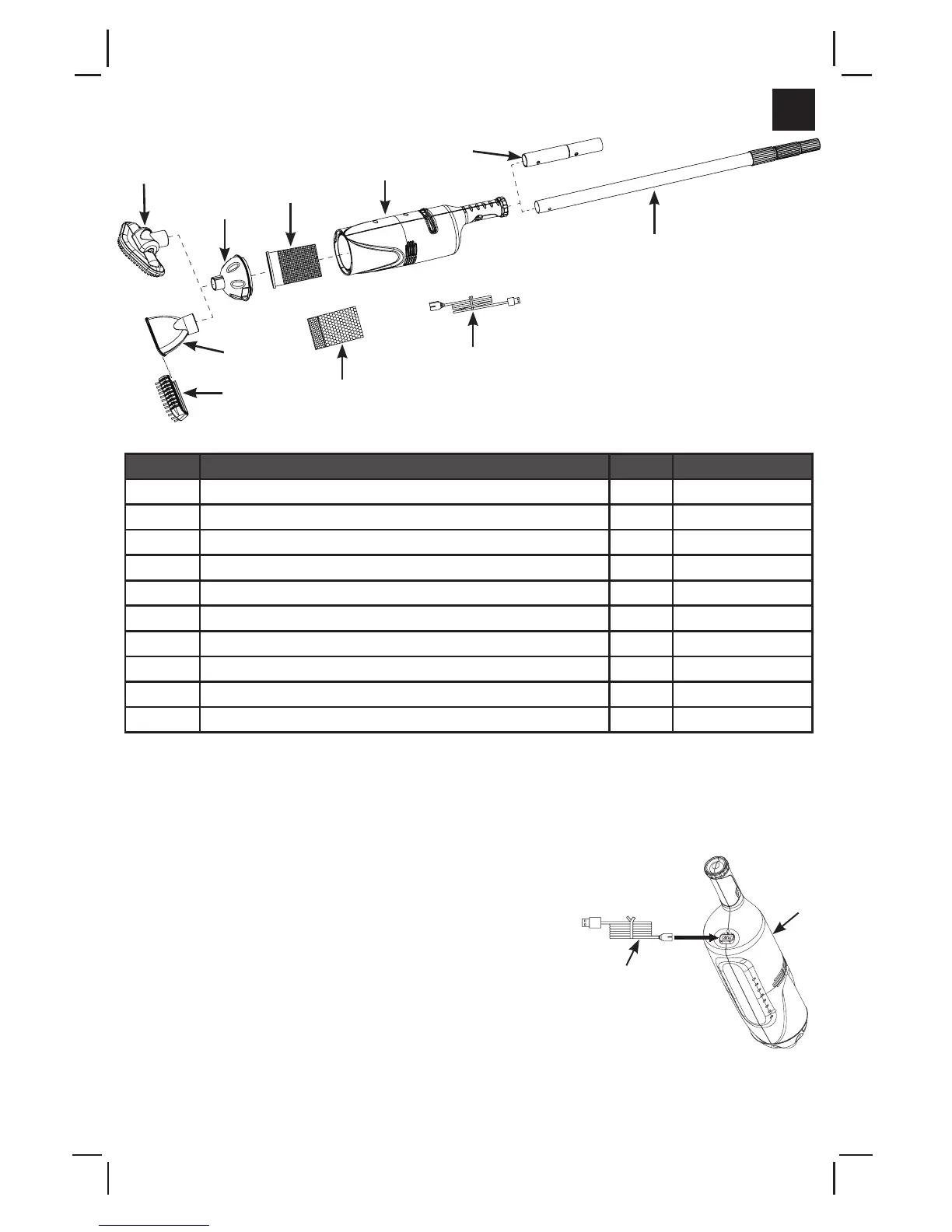

PARTS LIST
NOTE: Drawings for illustration purpose only. May not reflect actual product. Not to scale.
1
2
3
4
5
9
10
8
7
6
REF. NO. DESCRIPTION QTY. SPARE PART NO.
1 VACUUM BODY WITH NON-REPLACEABLE BATTERY 1 12271
2 FILTER BAG WITH GASKET 1 12278
3 VACUUM BODY COVER 1 12277
4 LARGE VACUUM BRUSH HEAD 1 12274
5 VACUUM NOZZLE 1 12275
6 VACUUM NOZZLE BRUSH 1 12276
7 MICRO-FILTER BAG 1 12279
8 VACUUM CHARGING USB CABLE 1 12269
9 TELESCOPING ALUMINUM POLE 1 10637
10 POLE ADAPTOR 1 12270
General:
• Plug charger not included. Only use a compatible standard female USB (smartphone or
tablet) plug charger with an output voltage of 5-5.2V DC, 1A.
• A full charge takes about 8-10 hours: provides about 40-50 minutes of operation.
• Make sure the charging receptacle on the product is dry before any recharging.
Charging the Battery:
1.
Connect USB cable to plug charger USB receptacle and
plug the charger into the main electrical outlet.
2
.
Connect the small end of the USB cable (8) into the
vacuum body (1) charging receptacle. See fig 1. The
indicator light will turn on.
Installation:
1.
Insert the filter bag with gasket (2) into the vacuum body
(1). See fig 2.1.
1
8
Fig 1

Intex cl1704 Specifications

General

Purpose	Above ground pool / In-ground pool
Quantity	1
Product type	Manual vacuum
Suitable for	Pond
Product color	Gray
Telescopic handle	Yes
Pool diameter (max)	5486 mm
Suitable for cleaning	Bottom
International Protection (IP) code	IPX8
Cables included	USB
Battery type	Built-in battery
Power source	Battery
Battery technology	Nickel-Metal Hydride (NiMH)

Weight and Dimensions

Handle length (max)	2387 mm
