(174PO) DELUXE POOL MAINTENANCE KIT ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 05/23/2017
S AVE THESE INSTRUCTIONS
174
PO
English
Page 4

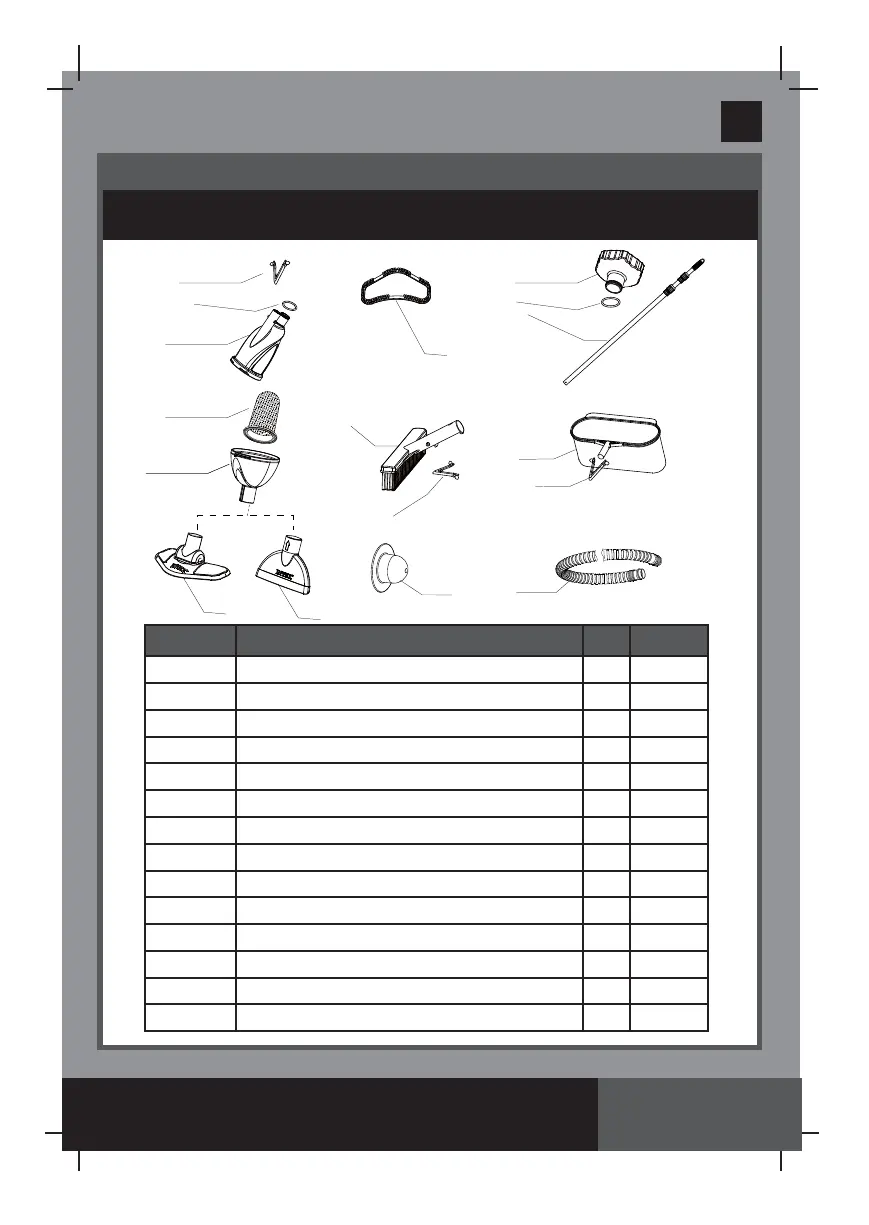

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the
contents and become familiar with all the parts.
NOTE:
Drawings for illustration purpose only. Actual product may vary. Not to scale.
1
2
5
4
3
6
7
8
2
9
11
10
1
12
1
13
COMMON DESCRIPTION QTY.
SPARE
PART NO.
1 SPRING (PREINSTALLED IN 3,11 & 12) 3 10794
2 HOSE SEAL (PREINSTALLED IN 3 & 9) 2 10134
3
VACUUM BODY (SPRING & HOSE SEAL INCLUDED)
1
11431A
4
DEBRIS BAG
1
10788A
5
VACUUM BODY COVER
1 11443
6 VACUUM HEAD (BRUSH INCLUDED) 1 11445A
7 BRUSH 1 11446A
8 FLAT VACUUM NOZZLE 1 11444A
9 ADAPTOR (HOSE SEAL INCLUDED) 1 11447A
10
TELESCOPING ALUMINUM SHAFT
1
10798A
11
BRUSH HEAD (SPRING INCLUDED)
1
11073A
12
SKIMMER NET (SPRING INCLUDED)
1
10796A
13
VACUUM HOSE
1 10797
14 FLOW REDUCTION ADAPTER 1 11237
14
