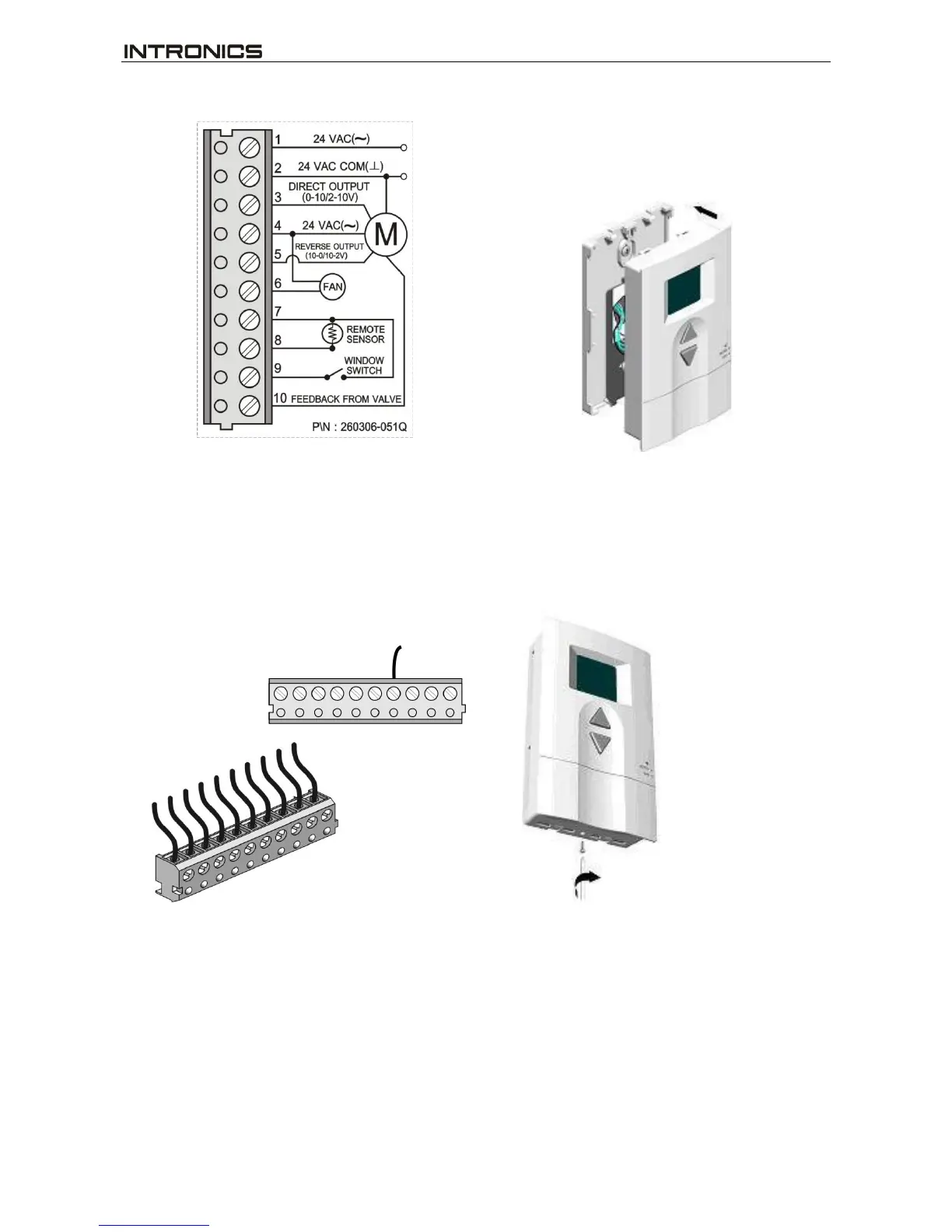

Fig.7 Wiring diagram
Note : Only one terminal from terminals 3&5 is
connected. It is subjected to the application.
Loosen the terminal screw, strip the wire and connect
the wire as shown in fig. 8 Firmly tighten terminal
screw when finished.
Fig.8 Connecting wire
Place the terminal back to the thermostat, make
sure it has the same orientation like in the picture
described at the back. Snap the thermostat to its
back plate.
Fig.9 Installing thermostat
Secure the thermostat by tightening the screw
provided to protect the thermostat from unwanted
access.
Fig.10 Secure the front cover
