Invacare Action NG - Tools for Adjustments and Regular Maintenance (Not Supplied); Dimensions and Labelling

EN30
EN31
Seat effective
width (mm)
Backrest
height
including
headrest
(mm)
Overall
length
(mm)
Length
without
footrest
(mm)
Backrest
angle
( 0° )
Bracket
angle
( 0° )
Distance
between
f
ront wheel and
rear wheel
(mm)
Distance
between
footrest and
seat (mm)
Distance
between
armrest and
backrest
(mm)
Overall
width (mm)
Width of
folded
wheelchair
(mm)
T
otal
height
(mm)
Height from
ground to
back seat
(mm)
Height from
ground to
front seat
(mm)
Wheelchair
height when
backrest is
folded (mm)
Backrest
height
(mm)
410/510
615/715
305
855/965
430/480
450/500
410
680/730
1045/
1350
1085
855
455
0/30
72
330/455
235/340
3.2. Tools for adjustments and regular maintenance
(not supplied)
Function Tool
Brake 5 mm Allen key
Footrest tube 5 mm Allen key
Footplate 5 mm Allen key
Adjustable armrests 5 mm Allen key
10 mm open-end wrench
Armpad T20 Torx key
Castor 13 mm open-end Wrench(X2)
Quick-release axle 19 mm open-end wrench
11 mm open-end wrench
After sale and disposal recommendations
• It is compulsary to use original Invacare
®
spare parts which
you can buy through any Invacare
®
dealer.
• For repair, please contact your local Invacare
®
dealer.
• Disposal : the metal parts can be disposed of for scrap
metal through recycling. Plastic parts are disposed of as plastic
scrap. Disposal must be carried out in accordance with the
respective national regulation. Please apply to your municipal
authorities/local government for details about local disposal
companies.

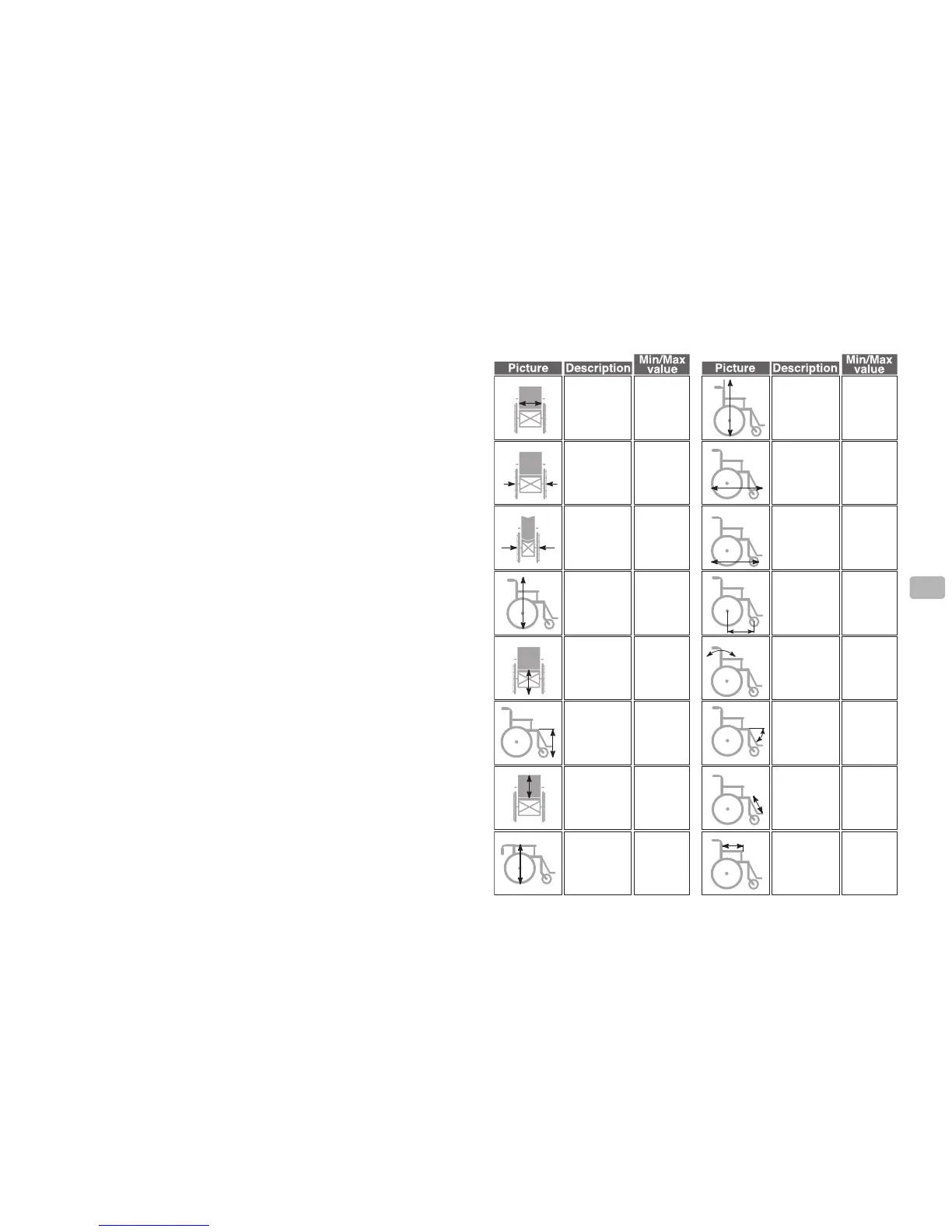

3.3. Dimensions and labelling
