Assembly Instructions
Wheel Mounting Block.
3 x M6 bolts and nyloc nuts are used to secure the
mounting block to the 3 x pre drilled holes in the rear
of the frame. The Self propelled wheel can then be
located at two positions, standard, and set-back for
added stability.
Manual brakes will require repositioning.
Ensure that all fixings are secure, and brake efficiency is
tested before use of the wheelchair.
Mounting block not to be positioned in reverse.

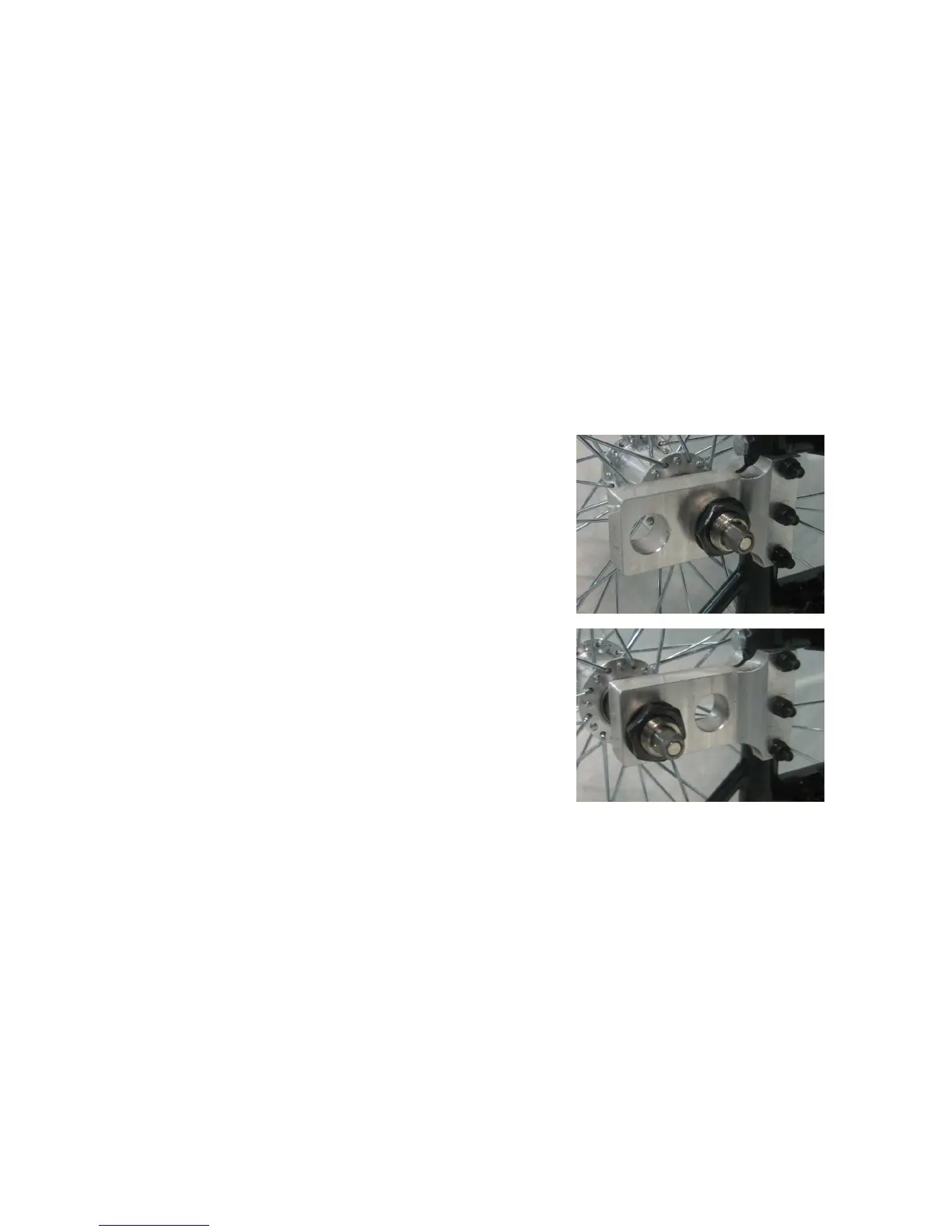

Standard position
Set back positionfor added stability
