14 Backrest Extension

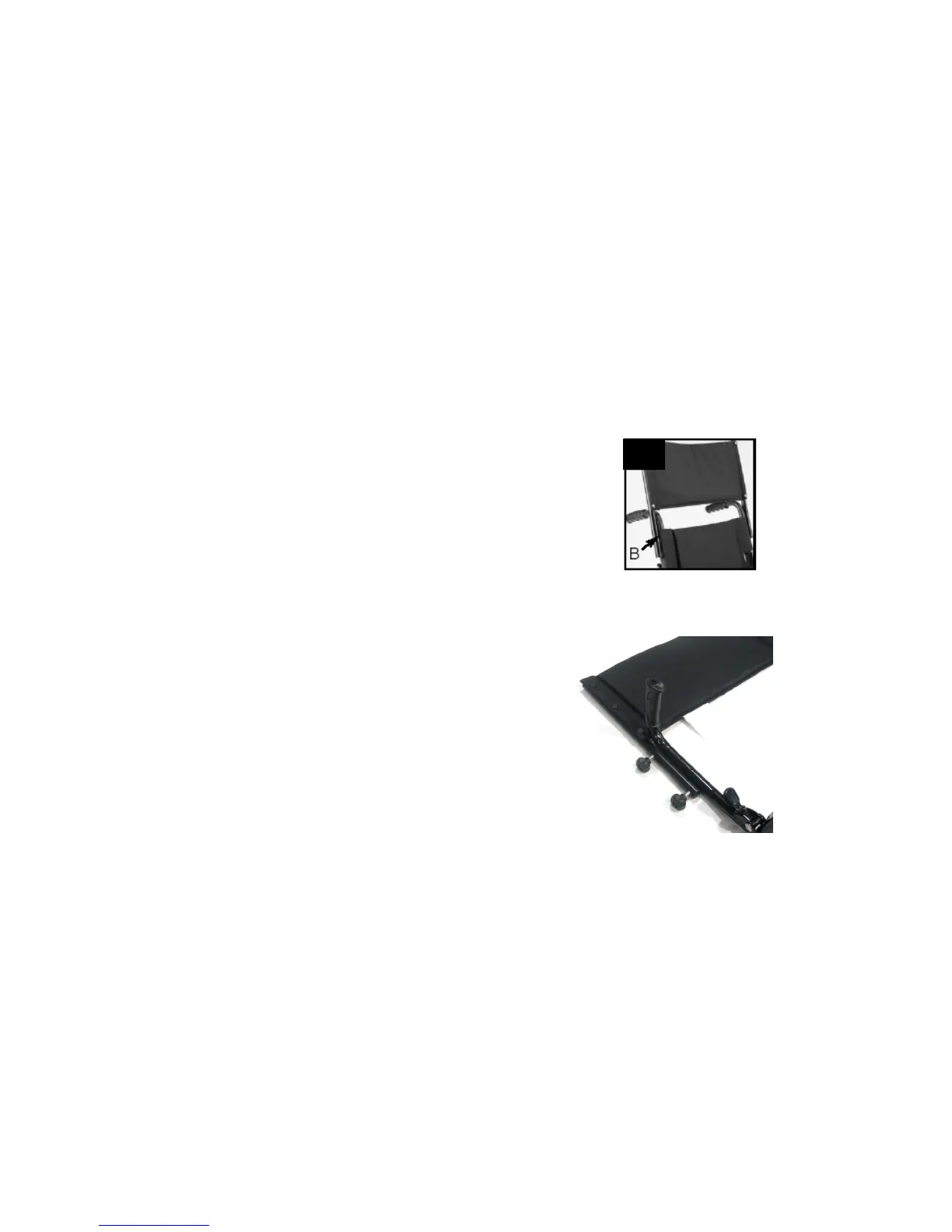

(Photograph 16 & 17)
The backrest extension has two uprights (B) and backrest
extension upholstery. The locating pegs should only be fitted to
the push handles of the backrest by a qualified technician.
When refitting, make sure that it is firmly fixed onto the
locations fitted to the backrest tubes. Raise the head rest
assembly to remove it from the tubes of the recliner backrest.
Adjustment: No adjustment is required for this extension.
However, it can be removed for transport.
Fitting Instructions - Backrest Extension is suitable for Vehicle Transport
The backrest extension can be used when using your
wheelchair as a seat in transportation. Please ensure
that the extension is securely fitted to the push handles.
Using a M5 x 30mm Thumb screw
(See photo)
Feed the Thumb screw through the tube and location
ring and firmly secure to the push handle.
