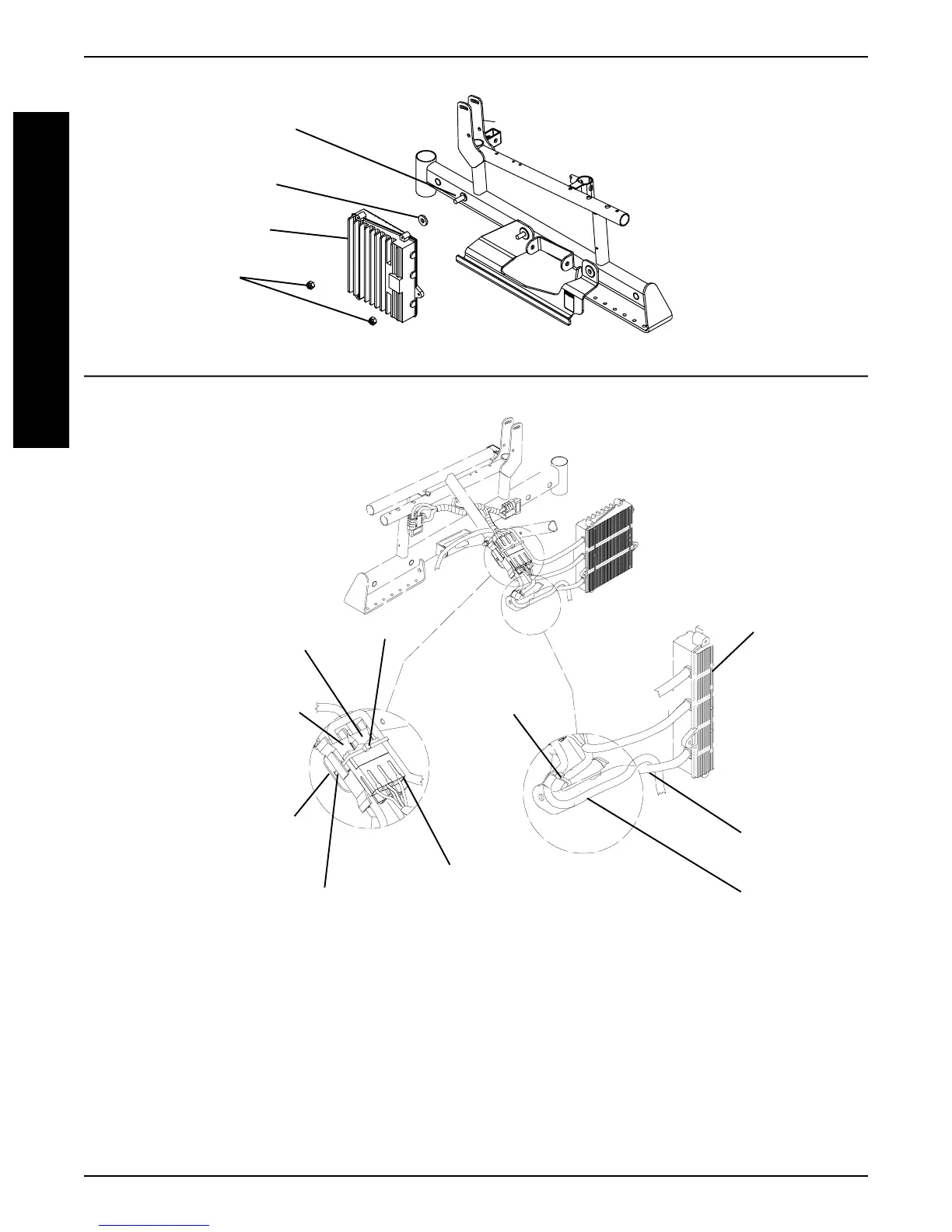

FIGURE 3 - REMOVING/INSTALLING MKIV CONTROLLER - 14-INCH WIDE MODELS
Left Hand Motor/Controller
Connection
Battery Wiring Harness
and Controller Connection
(BLUE)
Tie-Wrap
Wire Connector Support
Tie-Wrap
Left Hand
Motor Cable
Controller
Cable
MKIV
Controller
Slot
MKIV
Controller
Locknuts
Mounting Stud on
Wheelchair Frame
Washer
E
L
E
C
T
R
O
N
I
C
S
PROCEDURE 7 ELECTRONICS
Right Hand Motor/Controller
Connection
