Invacare Ranger II Basic - Page 40

40
PROCEDURE 11 CROSSBRACES
C
R
O
S
S
B
R
A
C
E
S

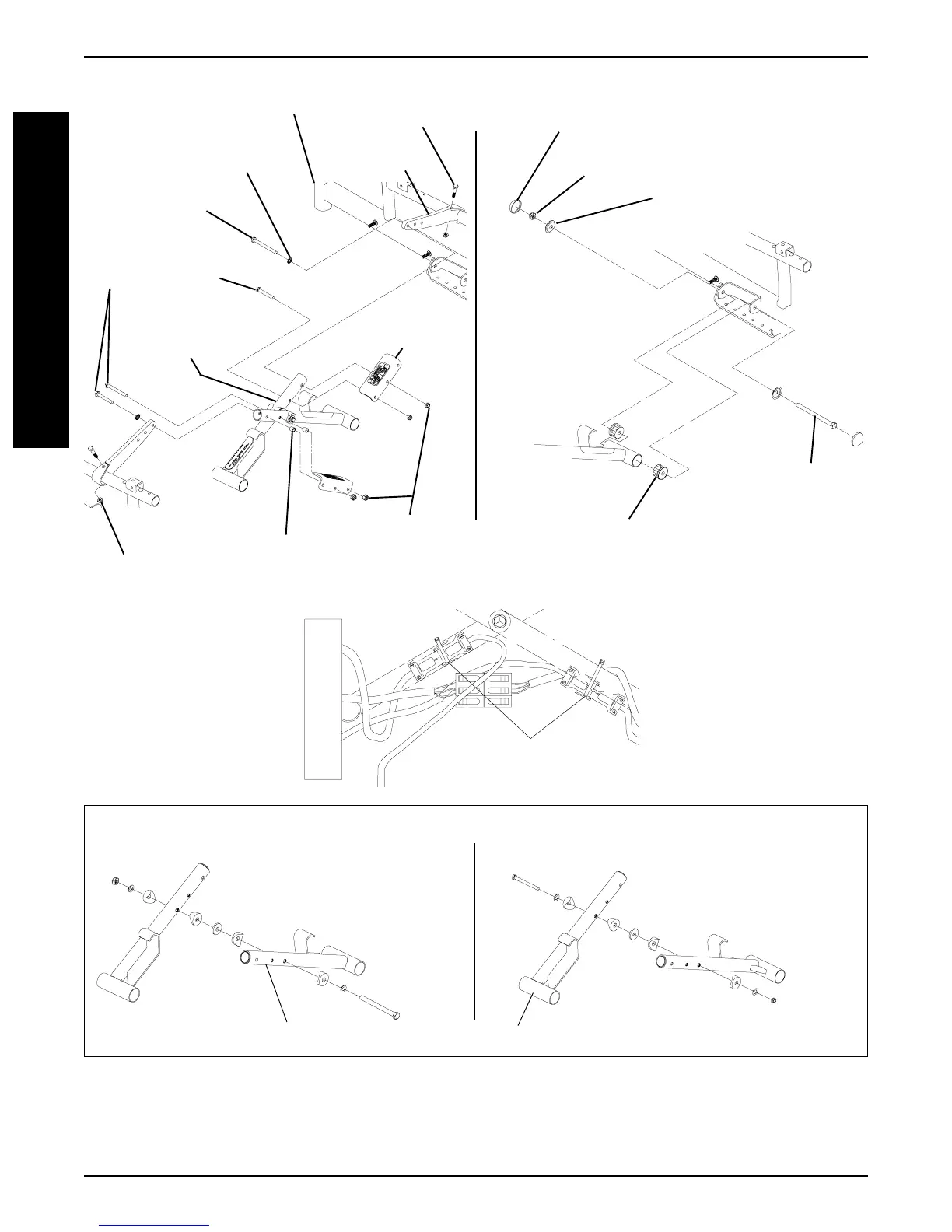

FIGURE 2 - REPLACING CROSSBRACES - CAPTAIN'S SEATS
Front of
Wheelchair
Note orientation of hex bolt, washers, coved washers and locknut for installation of new crossbraces.
Front of
Wheelchair
DETAIL "A" - (STEPS 9, 12)
MWD WHEELCHAIRS FWD WHEELCHAIRS
Wheelchair Frame
Locknut
(STEPS 4, 17)
Hex Bolt
(STEPS 4, 17)
Hex Bolts
(STEPS 5, 16)
Locknut (STEPS 8, 13)
Push Bracket
Crossbrace
Hex Bolts
(STEPS 5, 16)
Pivot Link
Spacer (STEPS 8, 13)
Pivot Tube Plug Pin (STEPS 10, 11)
Hex Bolts
(STEPS 8, 13)
Dust Cover (STEPS 6, 15)
Locknut
(STEPS 5, 16)
Spacer
(STEPS 5, 16)
Washer
(STEPS 5, 16)
Tie Wraps (STEPS 7, 14)
