63

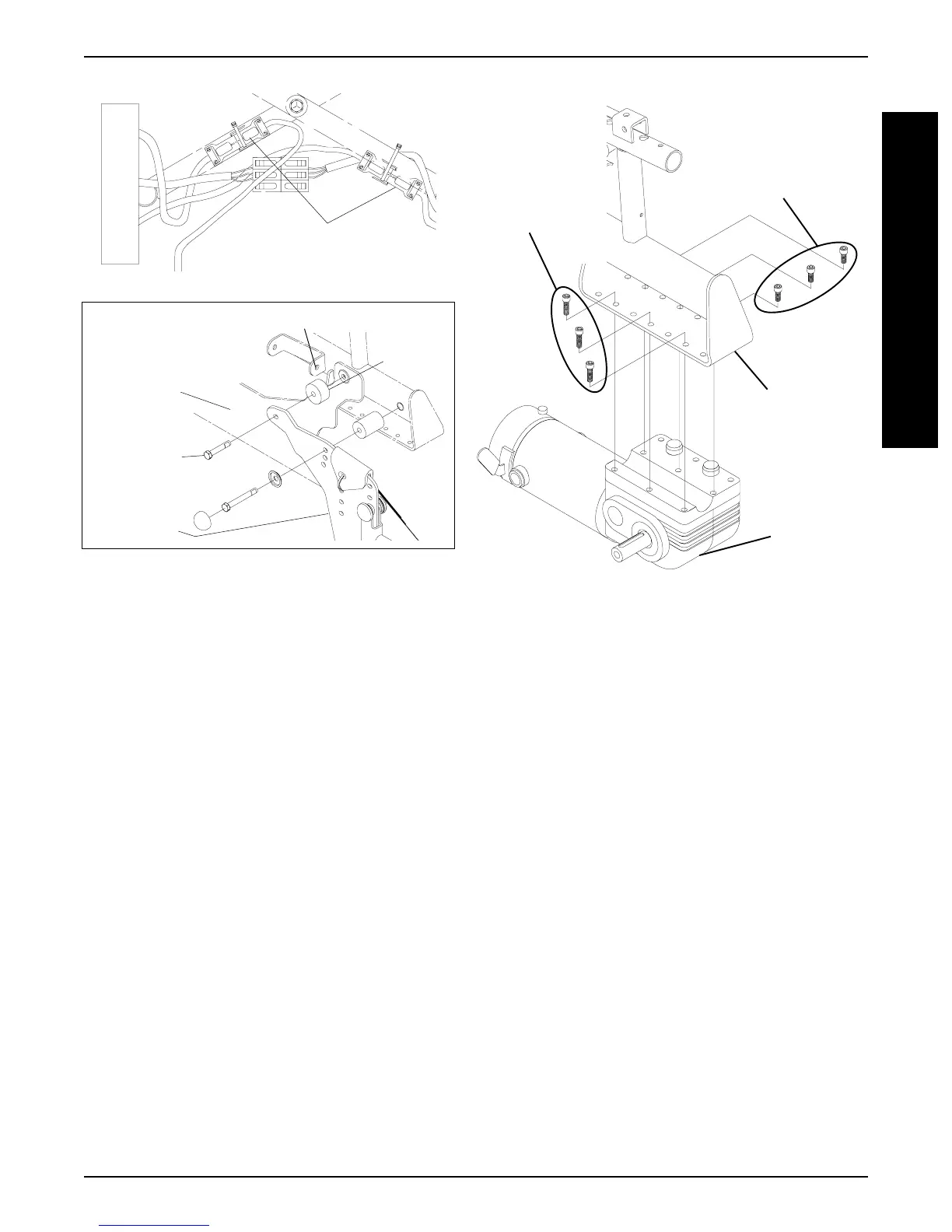

FIGURE 23 - REPLACING MOTOR/GEARBOX - RANGER II FWD - STANDARD
Wheelchair
Frame
LONG Socket
Screws (Apply Loctite
242 and torque to 60-
inch pounds)
(STEPS
8, 10)
Motor/
Gearbox
STEPS 4, 6,
13,14,15
Spacers
Battery Tray
Hanger
Bracket
Hex Screws
Footboard
Mounting
Bracket
Dust Cover (Not Shown)
SHORT Socket
Screws (Apply
Loctite 242 and
torque to 60-
inch pounds)
(STEPS 8, 10)
Battery Motor Connectors
(STEPS 2, 16)
PROCEDURE 13FWD WHEELCHAIRS
F
W
D
W
H
E
E
L
C
H
A
I
R
S
