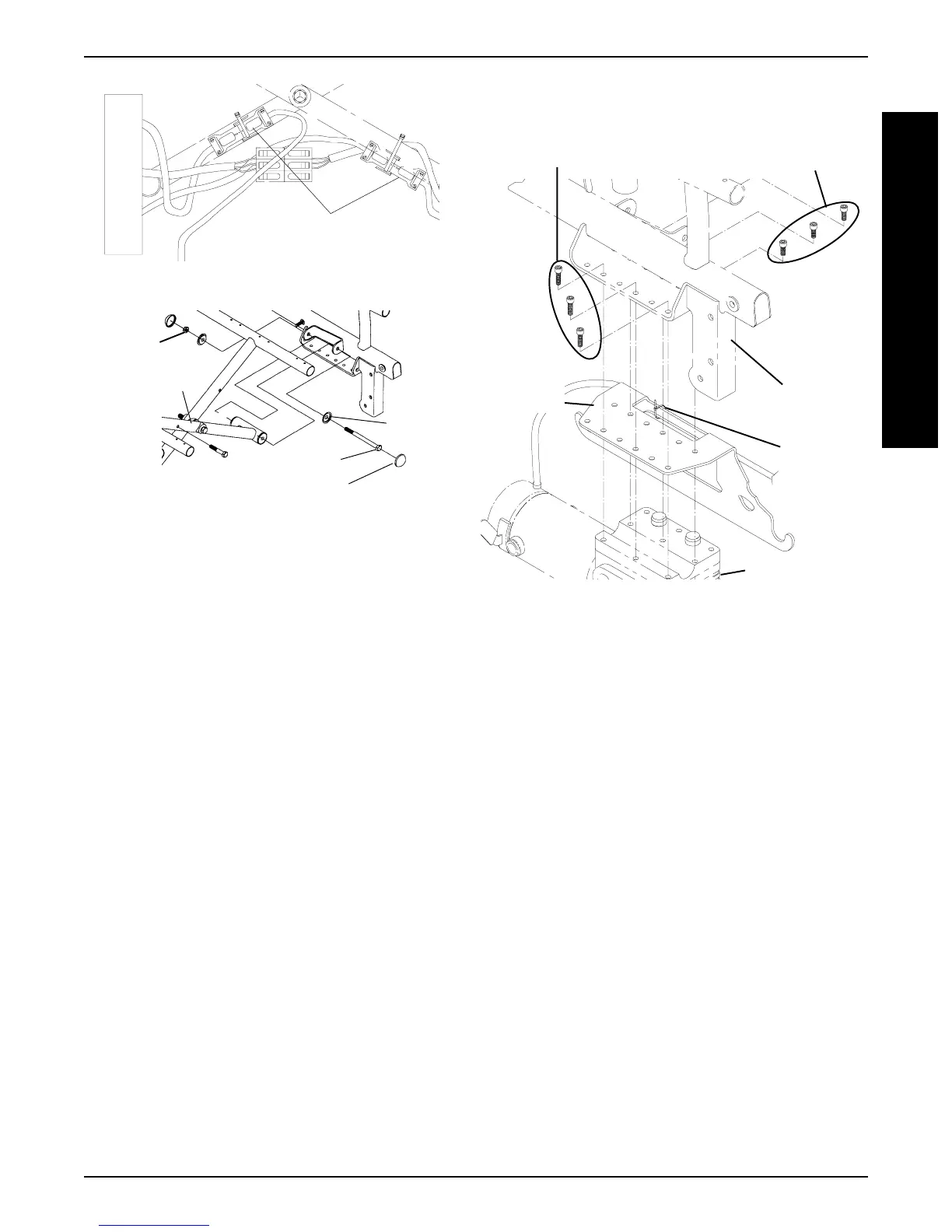

FIGURE 23 - REPLACING MOTOR/GEARBOX - RANGER II MWD STANDARD
LONG Socket Screws
(Apply Loctite 242 and
torque to 60-inch pounds)
(STEPS 9, 11)
Dust Cover
Hex Bolt
Washer
Crossbrace
Locknut
STEPS 5, 6 AND 14
Wheelchair
Frame
SHORT Socket Screws
(Apply Loctite 242 and
torque to 60-inch
pounds)
(STEPS 9, 11)
Motor/Gearbox
Tie Wrap
(STEPS 3,
16)
Battery Tray
Mounting
Bracket
Battery Motor Connectors
(STEPS 4, 15)
MWD WHEELCHAIRS
M
W
D
W
H
E
E
L
C
H
A
I
R
S
PROCEDURE 14
