The ear tips of the middle ear analyzer probe are disposable,
likewise that of the insert earphone for contralateral stimulus, and
those of ER-3 and ER-5 earphones; do not use the same ear tips
for different patients. Dispose of ear tips after use.
Disinfect the cushions of headphones between one patient and the
next.

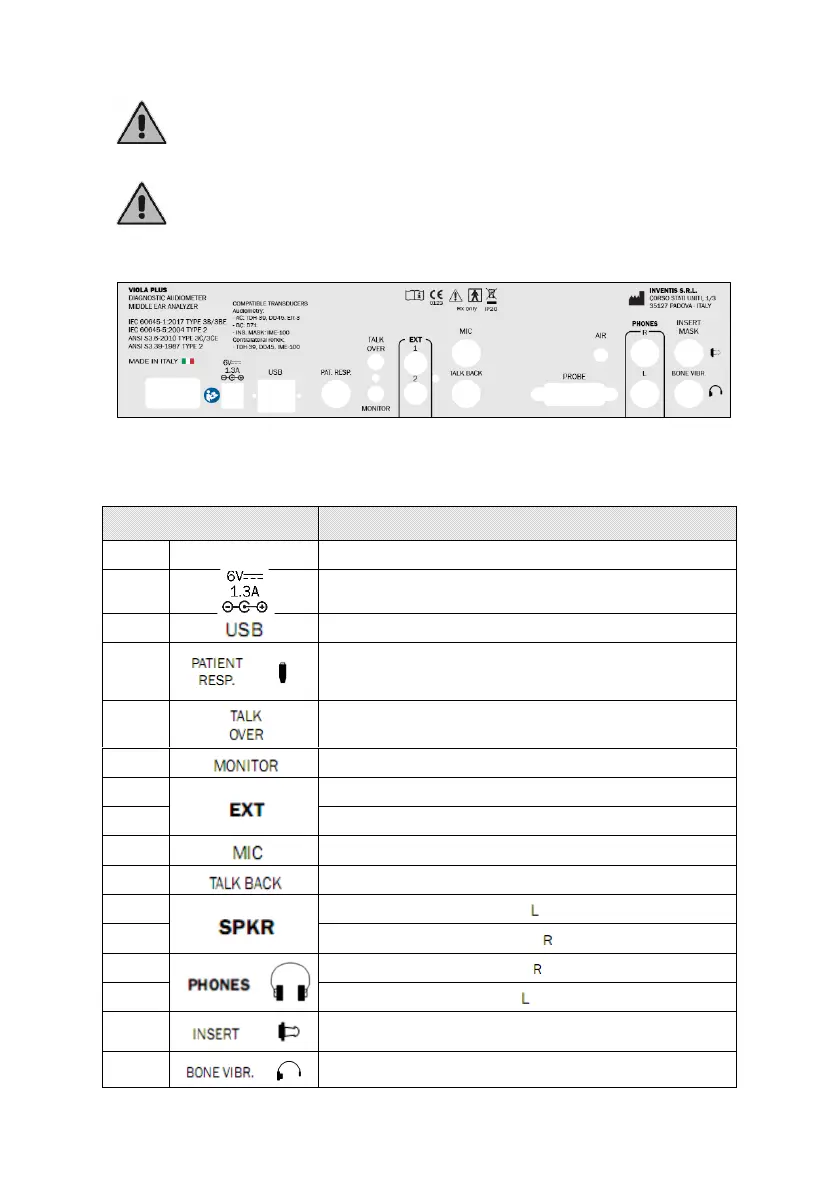

REAR PANEL CONNECTIONS
Rear Panel of Viola combo unit.
Viola Basic and Flute may not have some of these connectors.
Connector
Description
1
Power switch (0: Off, 1:on)
2
Power supply connection
3
USB cable for the connection to the PC
4
Patient response switch
5
Microphone for operator to patient
communication
6
Monitor headphones
7
External input 1 for speech audiometry
8
External input 2 for speech audiometry
9
Operator microphone for live speech tests
10
Patient microphone
11
Free field speaker: Left
12
Free field speaker: Right
13
AC headphones - Right
14
AC headphones - Left
15
Insert earphone for masking
16
Bone vibrator
KEYBOARD OF THE FLUTE MIDDLE EAR ANALYZER
1
2
3
4
5
6
7
8
9
10
12
11
13
14
15
16
