English • 27

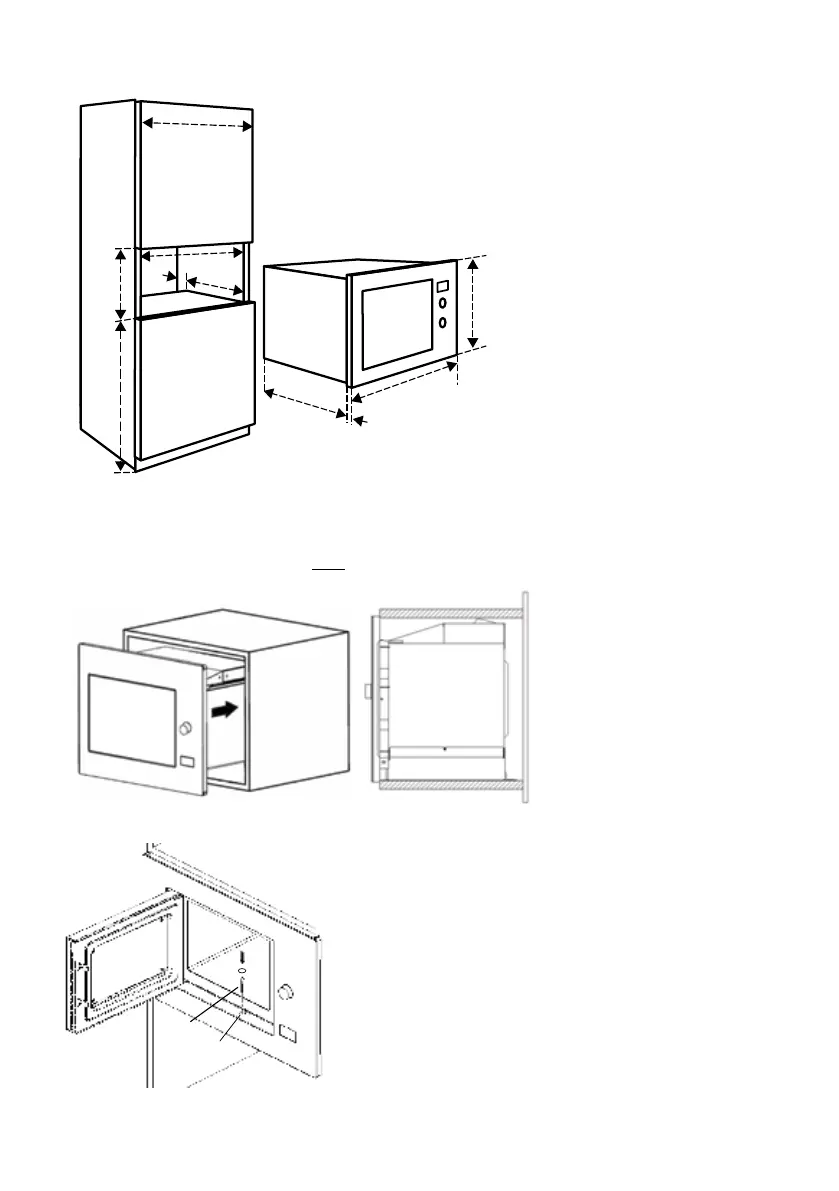

INSTALLATION DIMENSIONS
In the drawing below, all the dimensions are displayed in mm.
Installation Hole
Screw B
THE FIITING OF THE APPLIANCE
• Check that the cabinet and the space for the microwave oven meet the dimension and ventilation requirements.
• Slide the microwave oven in the cabinet. Note: Make sure the cable is not stuck and does not lie on top of the microwave
oven.
• Open the door of the microwave oven. Use the provided screw to fasten the microwave oven to the cabinet and place
the plastic cap on the screw.
• Close the microwave oven door and plug the appliance in.
• The microwave oven is now ready for use.
600
min.
550
min.
45
560
595
450
388
380
20
min.
850
* not suitable for built-under
