OUTER DIMENSIONS

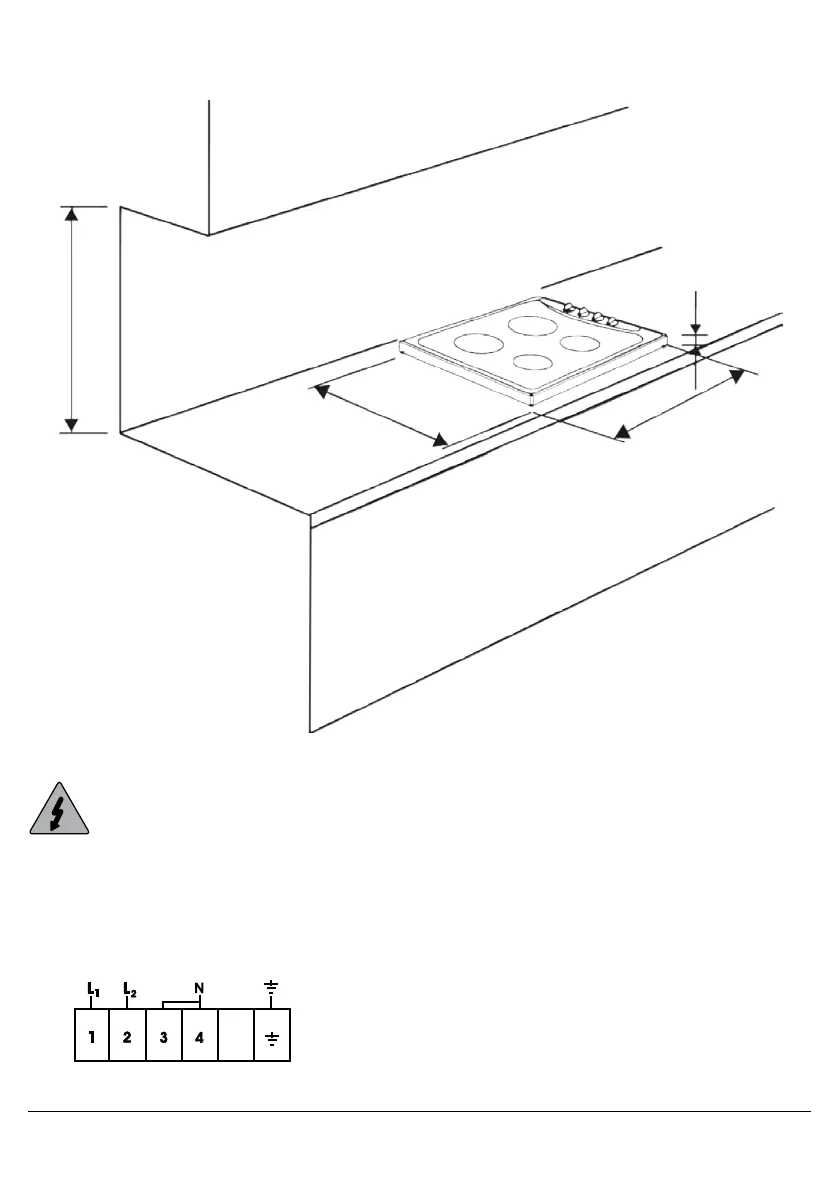

In the drawing below, all the dimensions are displayed in mm.
Sufficient clearance around the hob is essential for a safe use of the hob. Check that there is sufficient clearance. The minimum
distance of the hob to a cooker hood should be at least 650 mm.
514
584
54
ELECTRICAL CONNECTION
Attention: this hob includes a power cord with a Perilex plug. The connection is a 2 fase-connection.
• Check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance.
• The earthing of the appliance is compulsory by law.
• Attention: the connection point must always be accessible.
IMPORTANT: the hob is connected according to the schedule 2 ~ -1N 230V~
If a different connection is needed, the appliance should only be connected by a qualified fitter. Improper connection can cause the
hotplates to burn out. This is not covered by the guarantee.
Connection from factory 2 ~ -1N 230V~
