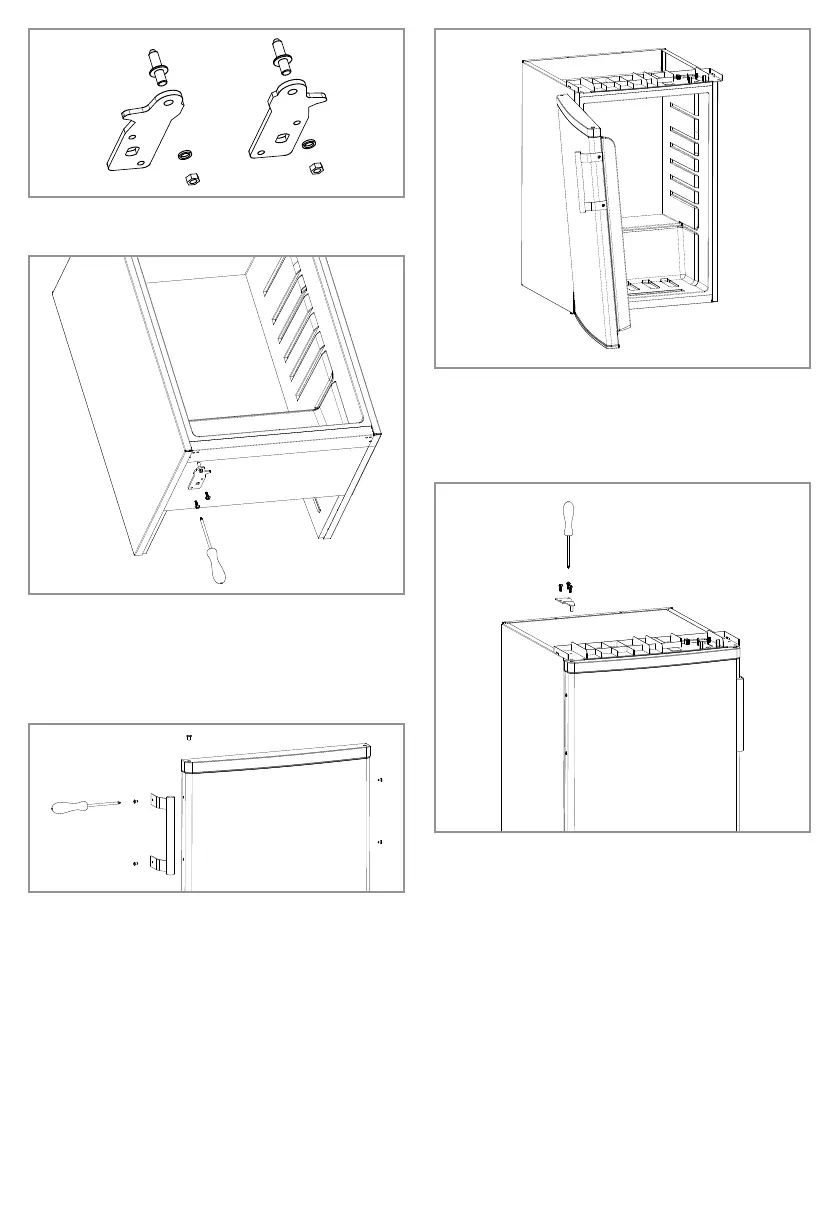

• While holding the door in the closed position, reassemble
the top hinge on the left hand side using the three
screws. Do not tighten the screws until the top of the
door is level with the counter top.
• Refit the top panel using the screws.
• Leave the appliance to stand for at least 3 hours before
you insert the plug into the socket.
• Replace the hinge pin into the bottom hinge.
• Replace the front leg.
• Set the freezer carefully upright.
• Remove the handle, if it is already fitted, and place it on
the other side of the door. Don’t forget to also refit the
white screw caps.
• Lower the door onto the bottom hinge pin and hold it.
English • 19
