Invicta 800 - Assembly with Firebox Support Option

800 leather insert Reference: P958144
XD – 18/02/2020 page 9/10

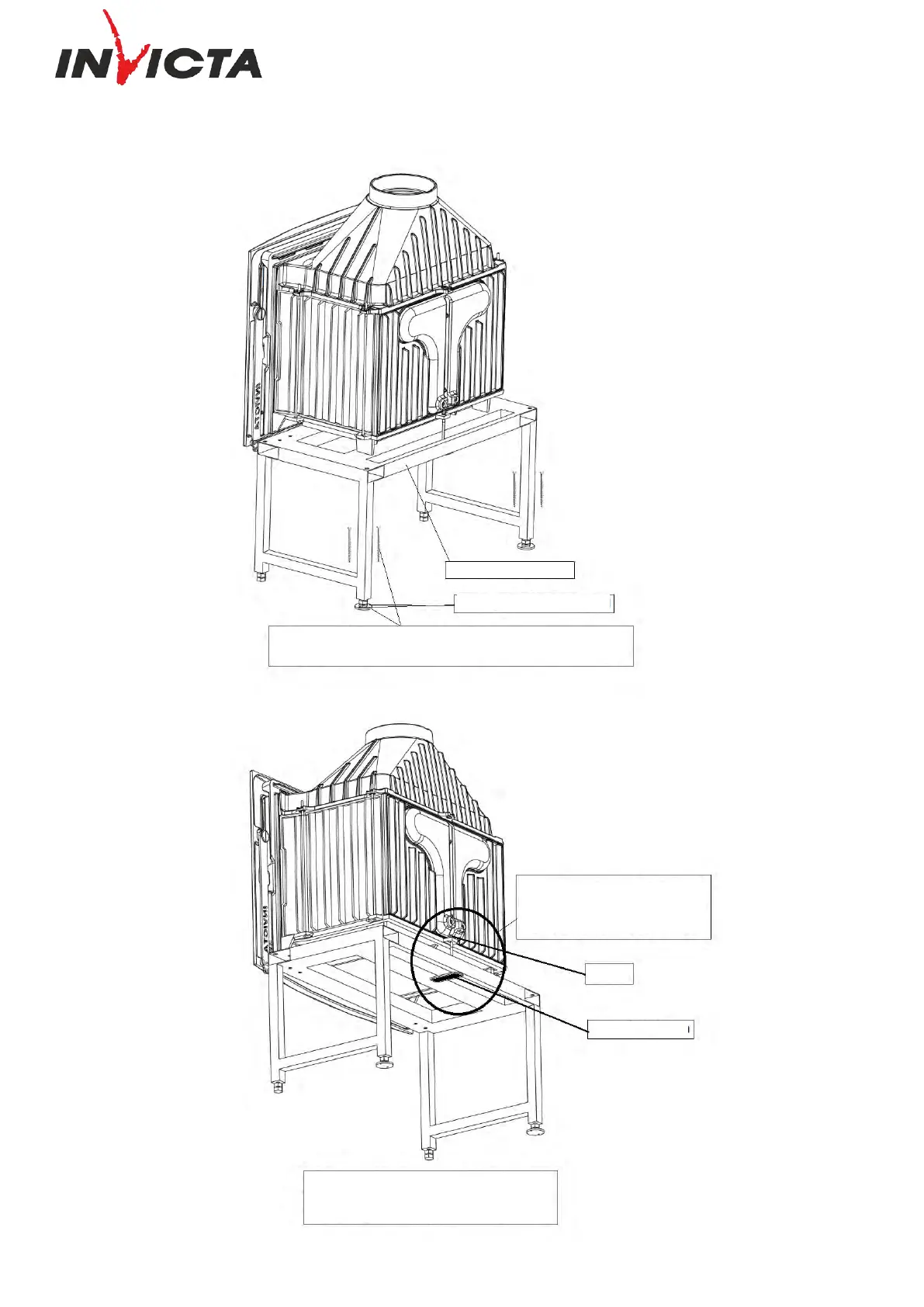

Assembly with the firebox support option
Back of the seat
Ground fixing holes
Place the pads on the back brackets
and fix to the ground using screws (not included)
Fix the bracket to the appliance
using the nut supplied with the
seat
nut
Fixing bracket
Place one of the 2 supplied fixing brackets
as shown on the diagrams above (only one
is needed for this model)
