Invicta 800 - Page 11

800 leather insert Reference: P958144
XD – 18/02/2020 page 2/10
Specific user and installation manual
Please read this additional specific manual and the general manual also provided with the appliance carefully.
Specifications as per EN 13229:
Construction specifications:
Rated power
11 kW
Efficiency
80 %
CO Rate%
0.15 %
Released dust concentration at 13% of O2
50 mg/Nm
3
Smoke temperature
315 °C
Running mode
Intermittent
Recommended fuel
Wood / 33 cm logs
Max log length 55 cm
Smoke mass flow
8.5 g/s
Distance from adjacent combustible materials:
Laterally: 8 cm (including 5 cm of insulation)
At the back: 13 cm (including 5cm of insulation)
(insulation specifications: 5cm thickness of rock wool, max conductivity 0.04W/m°C with aluminium side facing the insert)
Appliance weight
137 kg
Combustion chamber
With post combustion system
Connection to the chimney flue using the nozzle
on the top of the appliance
ext. diameter 200 mm
Insert dimensions

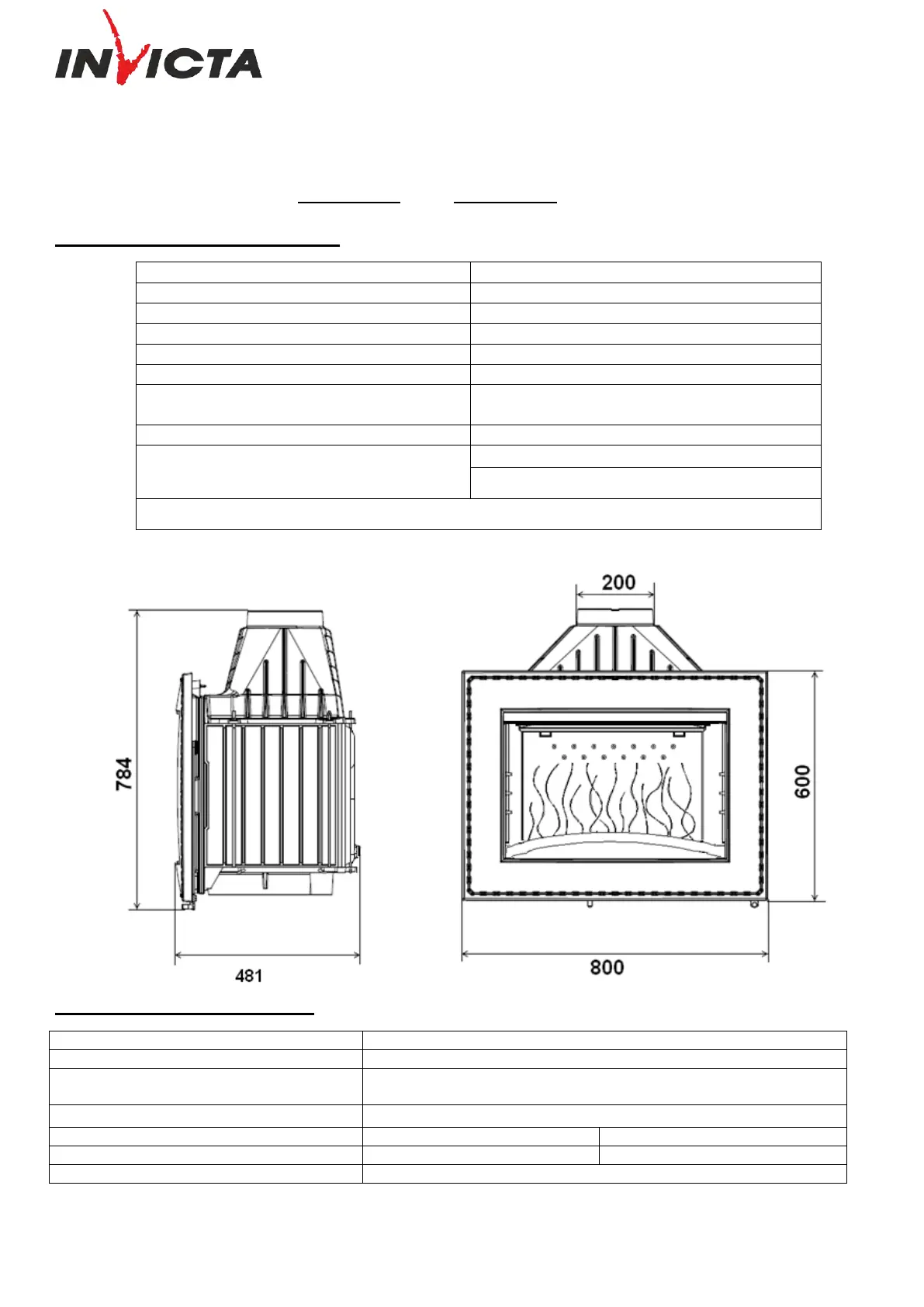

See above diagram
Door dimensions
h 600 mm
len 800 mm
Fire view
h 385 mm
len 580 mm
Identification plate
Engraved under the ash pan
Technical sheet AD 6581 44
