HEARTH REQUIREMENTS & FLOOR PROTECTION
Ensure you protect combustible flooring with a covering of non-combustible material. This Invicta series does not
require an insulated hearth pad. The minimum floor protection must be met under the stove and extend beyond
the stove as follows:
The minimum floor protection for US installations is 52 ½ in x 51 ¼ in.
The minimum floor protection for installations in Canada is 52 ½ in x 55 ¼ in.

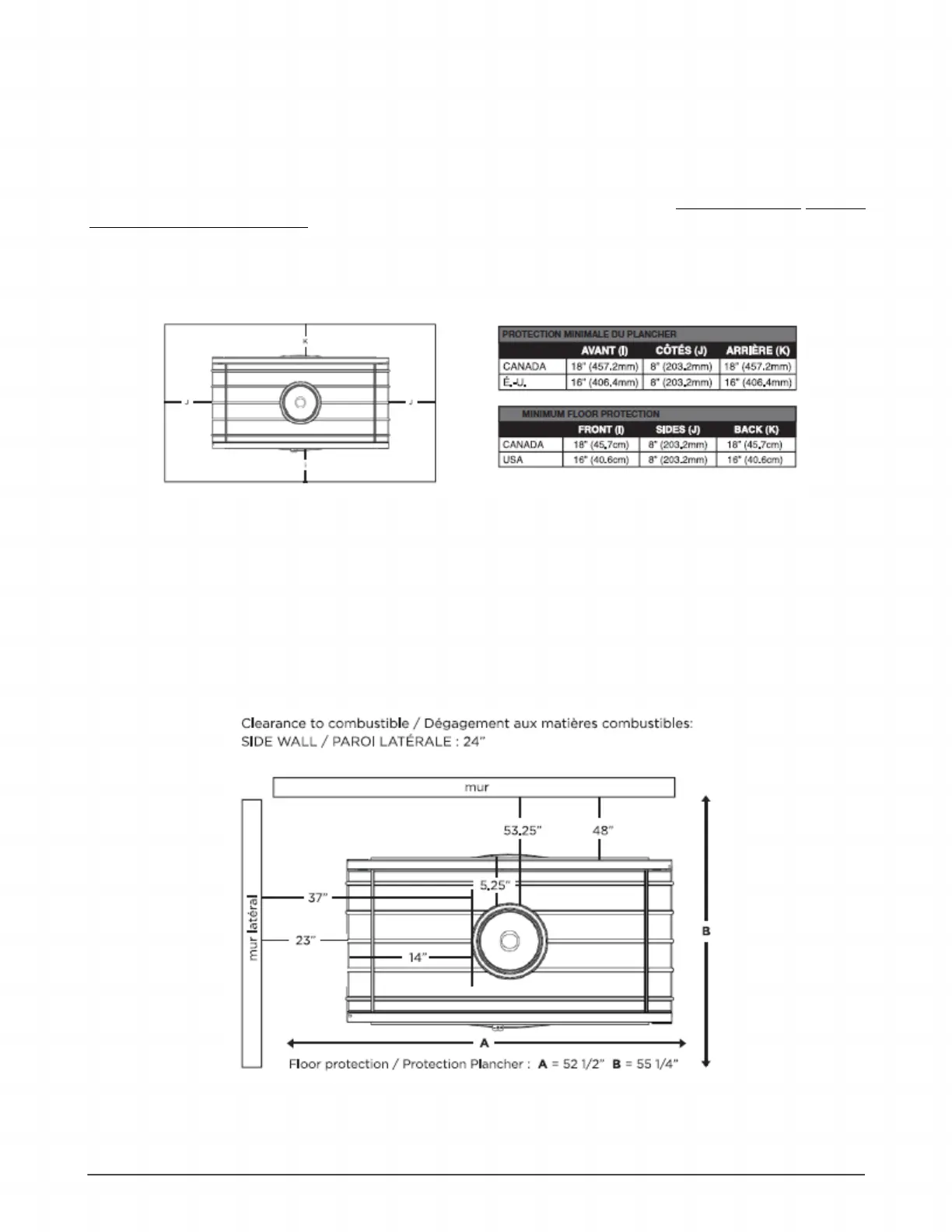

Figure 3 – Hearth Dimensions
COMBUSTIBLE SURFACE REQUIRED CLEARANCES
Note: Dimensions shown in the following figures are from the body of the stove unless otherwise indicated.
It is very important to follow minimum clearances for chimney connectors to combustibles such as walls and
ceilings when installing the stove near combustible surfaces.
Figure 4 – Clearance to Combustibles
