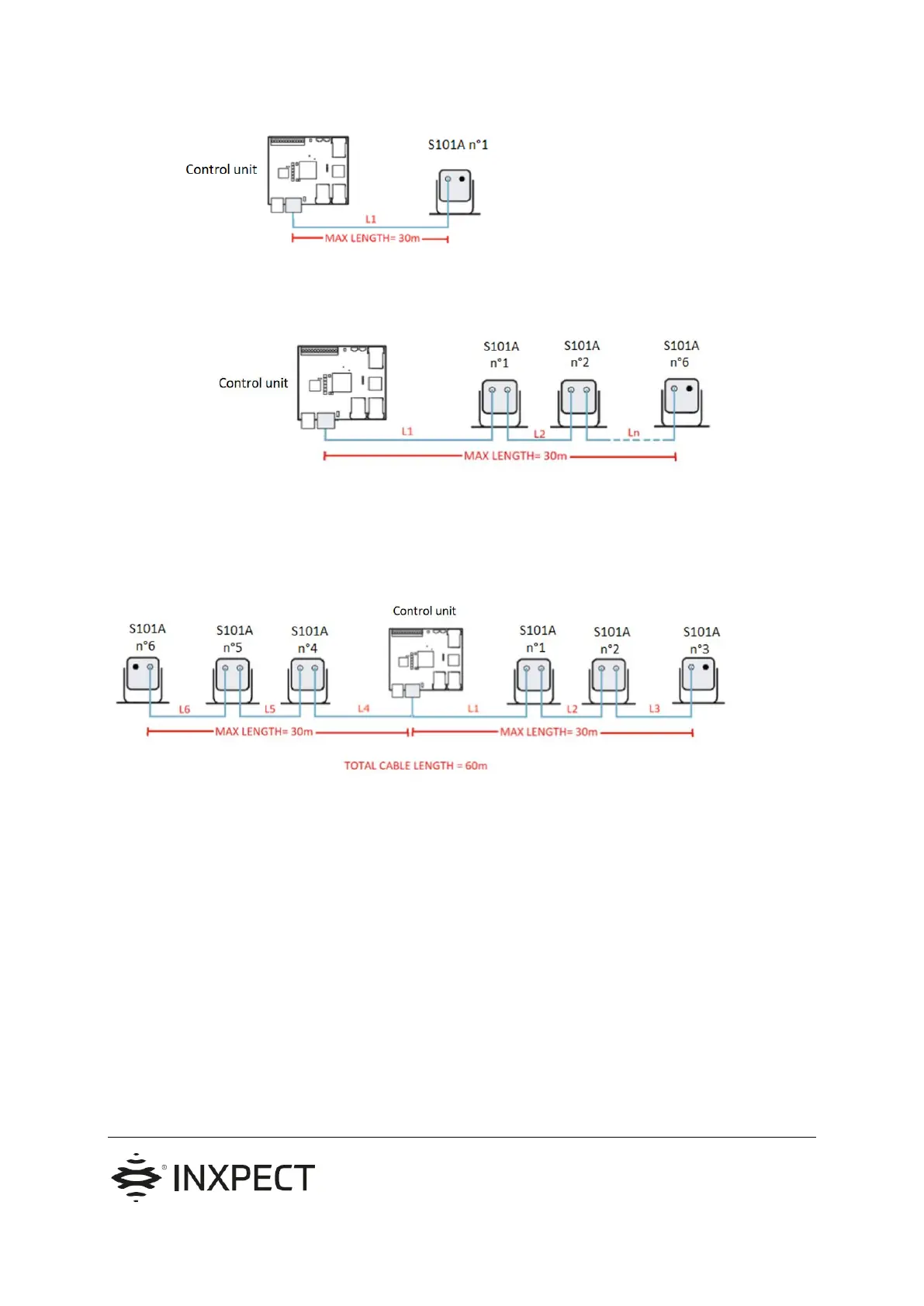

● Multiple S101A on the same bus line (chain of sensors)
The sum of the length of each cable must be equal or lower than 30 metres.
)
● Multiple sensors in two different bus lines with the control unit inside of the chain (*)
The sum of each cable’s length on the same bus line must be equal or lower than 30 metres, and the overall
length must be at maximum 60 metres.
, where 6 ). Each bus line may
have between 1 and 5 sensors. The maximum number of S101A sensors managed by a single control unit is 6.
(*) When the control unit is inside of the chain, it is necessary to exclude the termination resistance on the control
unit itself using the DIP Switch “A”.
