Cables specifications - Inxpect SRE 100 and
200 Series
Page 9/17

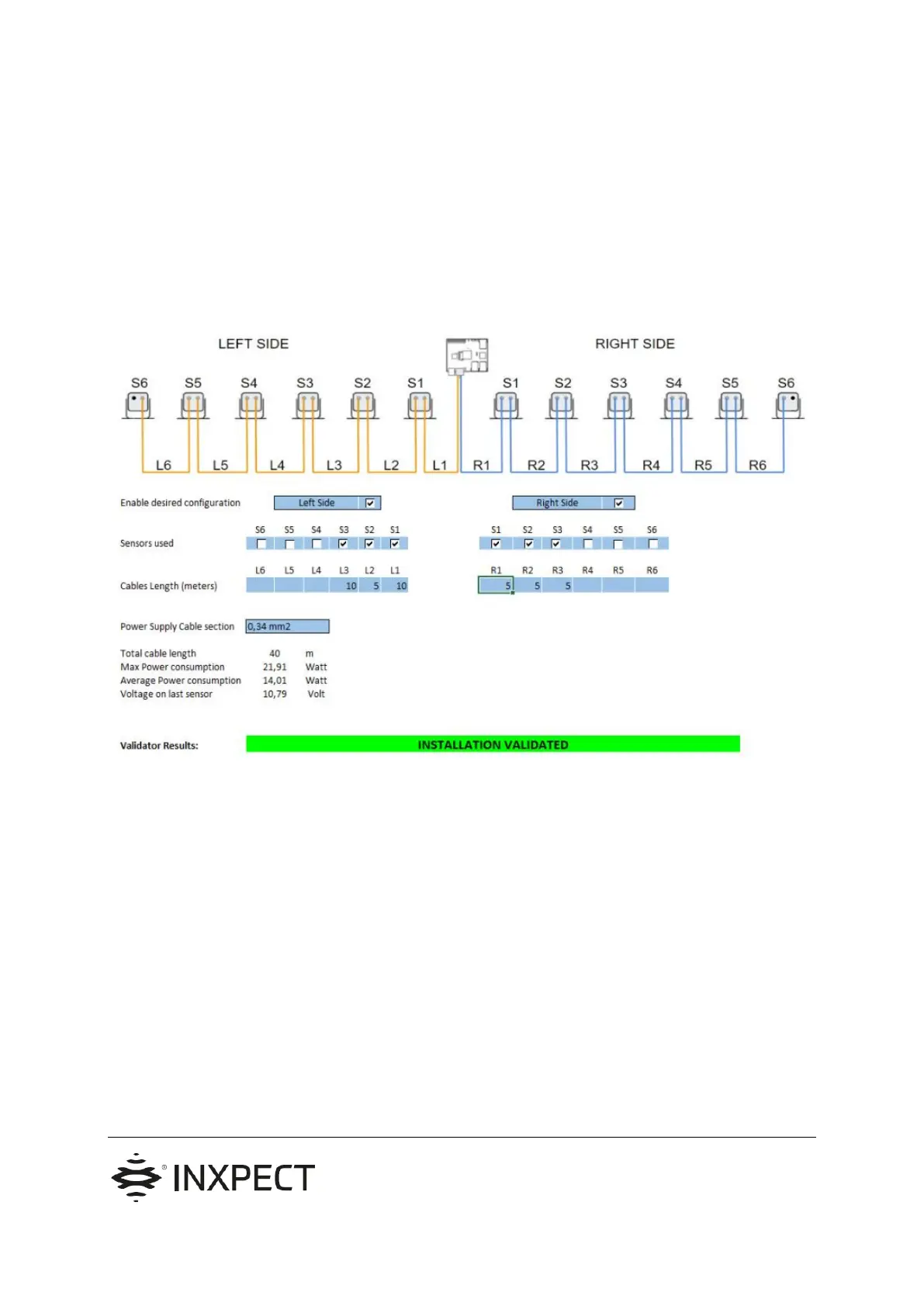

● Example 3 - Multiple sensors in two different bus lines with the control unit inside of the chain (*), a
valid configuration
In the following example we have:
- number of BUS lines: 2
- number of sensor for each line: 3+3
- length of each cable: 10+5+10 [m] and 5+5+5 [m]
- Power Supply cable section: 0.34 mm²
