Cables specifications - Inxpect SRE 100 and
200 Series
Page 10/17

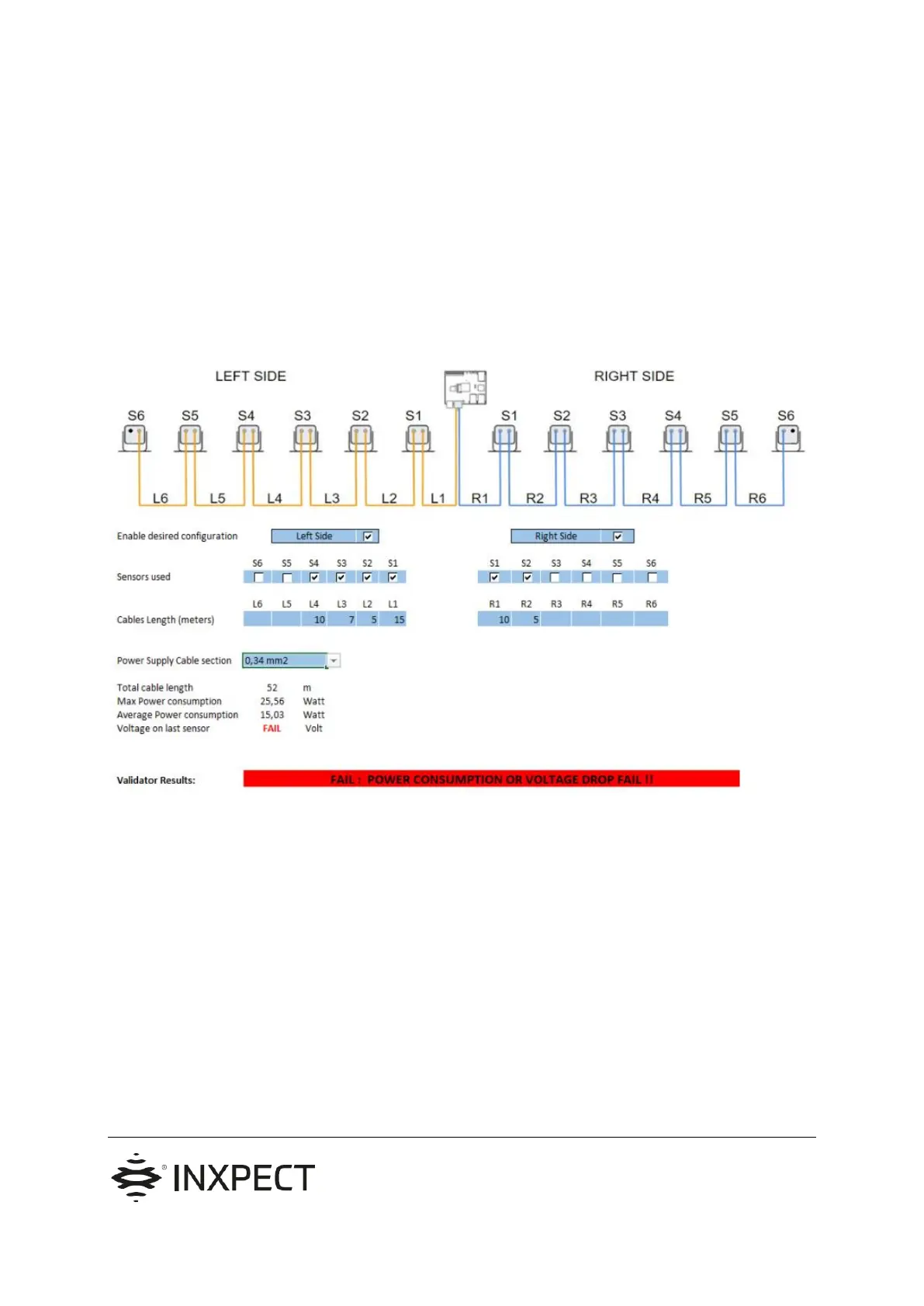

● Example 4 - Multiple sensors in two different bus lines with the control unit inside of the chain (*), a not
valid configuration
In the following example we have:
- number of BUS lines: 2
- number of sensor for each line: 4+2
- length of each cable: 15+5+7+10 [m] and 10+5 [m]
- Power Supply cable section: 0.34 mm²
