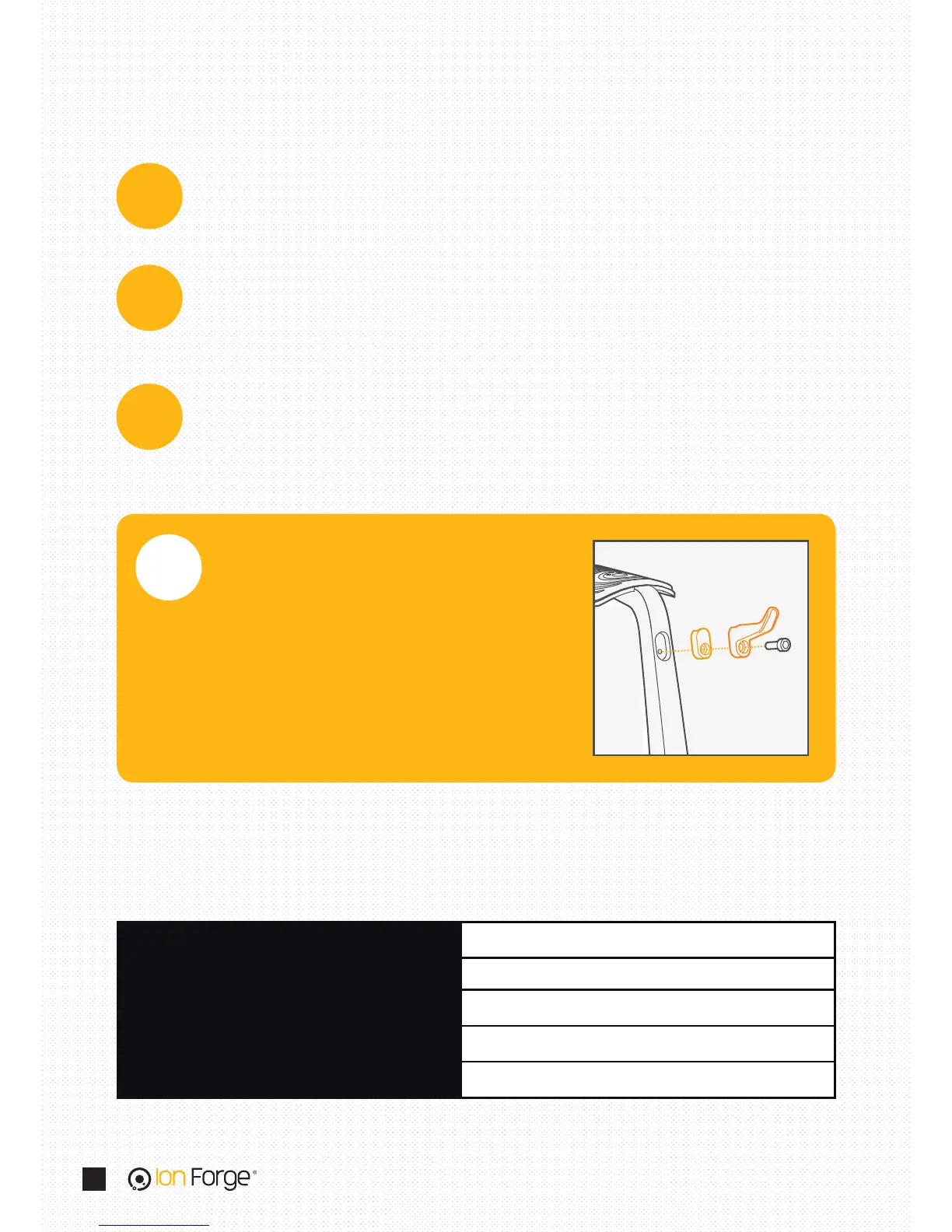

Assembly Instructions
From the underside of the base plate use the large M6 fasteners
to fasten the stand neck to the base plate.
Temporarily remove the silicone top mat from the top plate, seat
the top plate into the top recess of the stand neck and use the
small M5 fasteners to fasten the top plate to the stand neck.
Re-fit the silicone top mat to the top plate. Make sure that the
locating nubs on the underside of the top mat slot into the holes
in the top plate so that the mat sits flat.
Remove the plug pieces from
the rear of the stand neck by
unscrewing the M4 socket cap
fasteners. Replace the plug pieces
with the provided cable pin pieces
and then secure the cable pins to
the stand neck by refastening the
M4 socket cap fasteners.
STEP ONE
STEP TWO
STEP THREE
STEP FOUR (OPTIONAL)
1
2
3
4
Technical Specifications
STAND CLEAR HEIGHT FOR HEADPHONES 260 mm
STAND OVERALL HEIGHT 272 mm
TOP PLATE SIZE (W) 73 mm (L) 100 mm
BASE PLATE SIZE (W) 130 mm (L) 170 mm
WEIGHT 1.2 kg
