ION TAILGATER SMART - Rear Panel Connection Examples

5

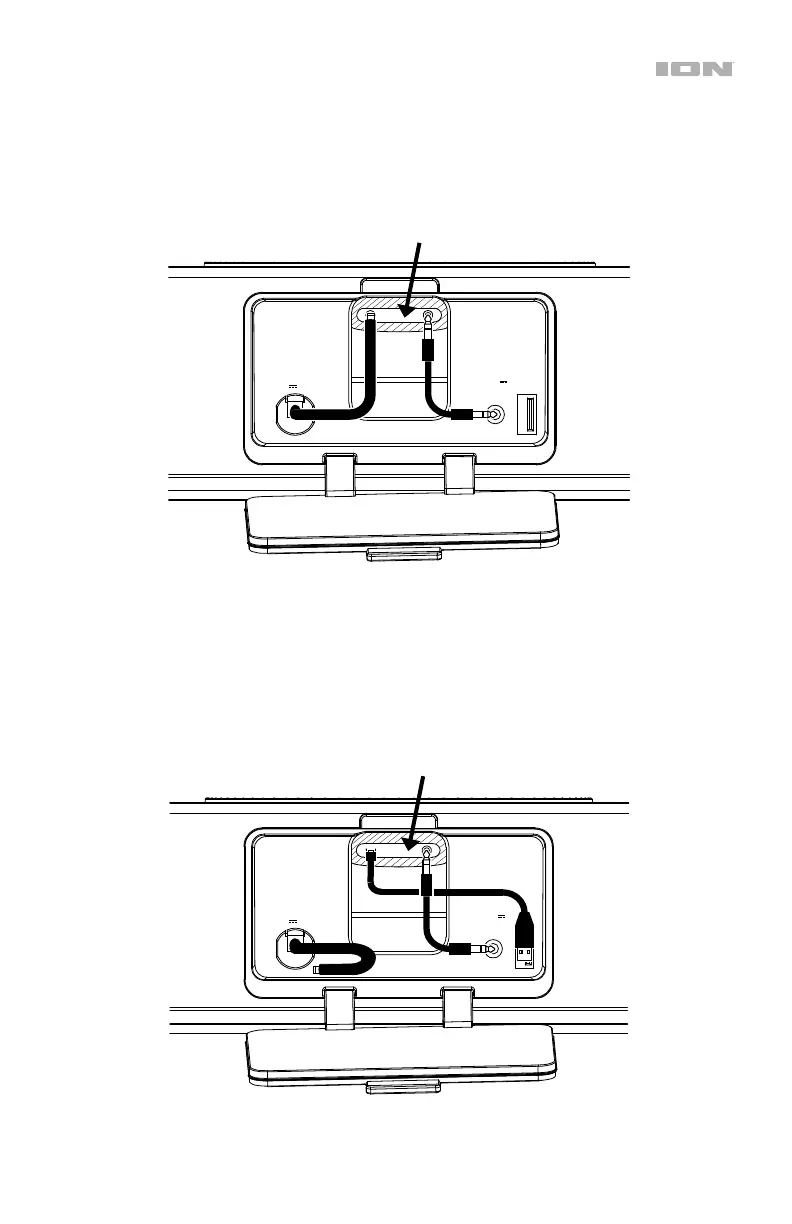

Rear Panel Recess (Example 1)
When connecting a 3rd generation Amazon Echo Dot, use the DC power cable attached to the
Rear Panel Recess for charging the unit. If you are not paired via Bluetooth, use the included
1/8” (3.5 mm) aux cable to transmit audio. See the Features section for more information.
Rear Panel Recess (Example 2)
When connecting a 1st/2nd generation Amazon Echo Dot or an Amazon Echo Input, use the
included USB cable for charging the unit. If you are not paired via Bluetooth, use the included
1/8” (3.5 mm) aux cable to transmit audio. See the Features section for more information.
Amazon device (positioned in
the holder on the Top Panel)
Amazon device (positioned in
the holder on the Top Panel)
12V 1.25A
5V 1.8A Max.
AUX IN
5V 1.8A Max.
AUX IN
12V 1.25A
