iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569-0200 | www.iOptron.com
HAZ is operated under unbalanced condition and could be tipped off if tripod is not secured.

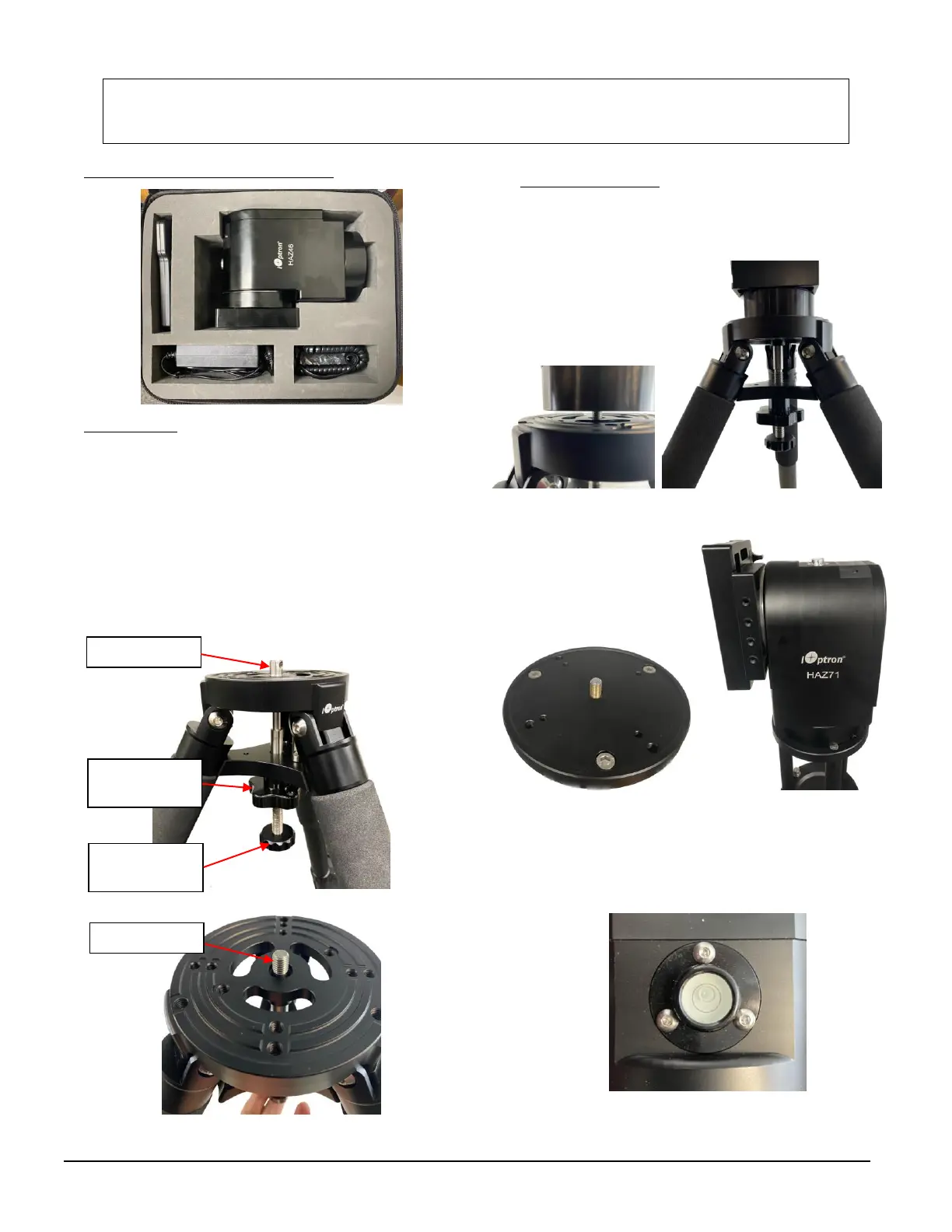

1. Remove mount head from package.
2. Set up tripod: The mount can be attached to a tripod
or a pier/minipier with a 3/8”-16 threaded post.
Extend the tripod legs. Adjust the tripod height and
level it. Tighten tripod leg locking knob to secure the
tripod. Shown below is a carbon fiber tripod #8061A
which can be used for multiple mounts. Remove
center post and alignment peg, if there is any
installed. Retreat tripod supporting tray locking knob
so the tripod center bolt can be push up through the
tripod head.
3. Attach mount head: Align the HAZ mount head base
hole to the tripod center rod. Tighten the center bolt
to secure the mount. Tighten the tray lock to secure
the tripod legs.
If you have a HAZ71 mount, you may use a MiniPier.
Level the mount by adjusting the tripod legs. Use the
build-in Bubble Level Indicator or an external leveler
for this purpose.
