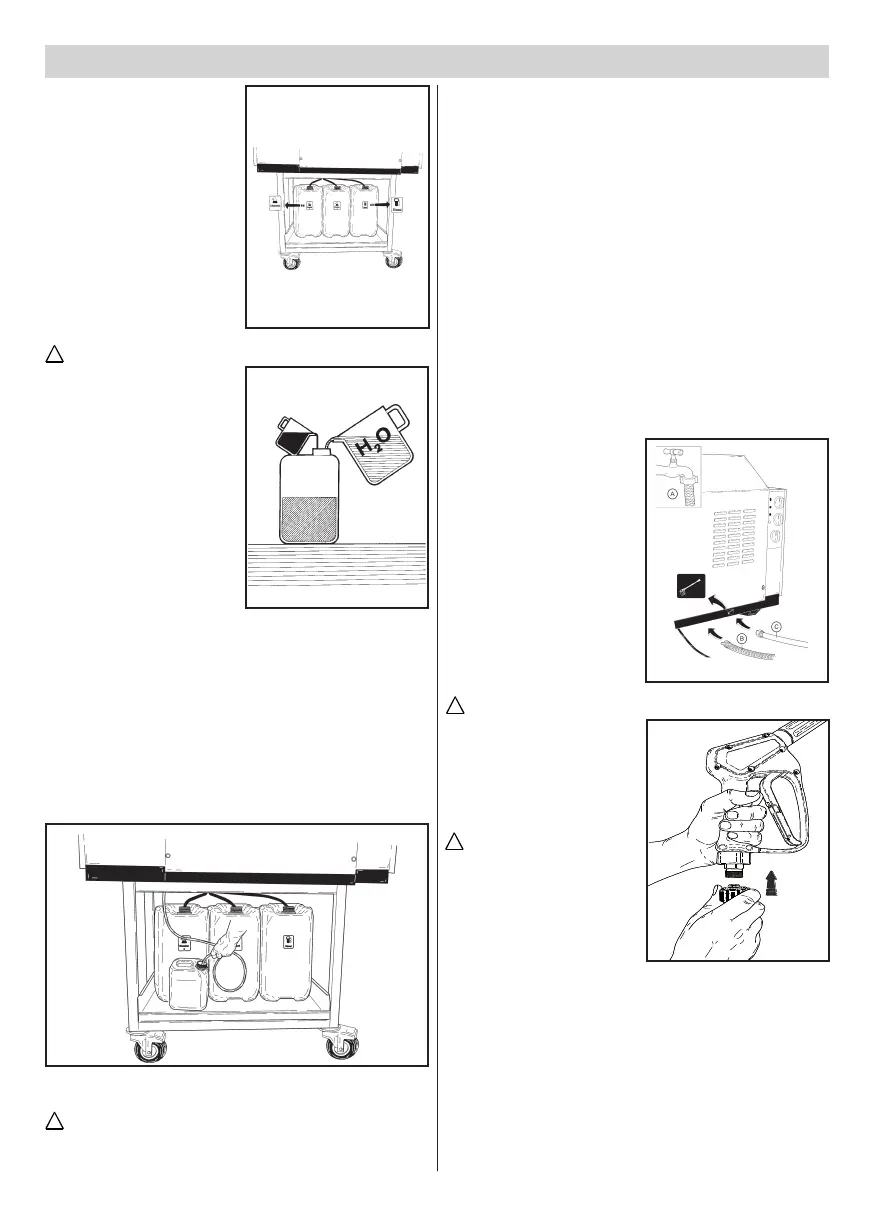

- 23 -
Connect the feed hose to the
mains (g. 5A) and to the ho-
setail on the cleaner (g. 5B).
Check that the pressure and
quantity of the water supplied
by the mains are su󰀩cient for
the cleaner to work properly:
2 to 8 BAR (29 to 116 PSI).
Maximum temperature of
feeding water 50°C (122°F).
Connect the high pressure
hose to the cleaner (g. 5C)
and to the lance (g. 6).
Danger
The cleaner must operate
with clean water. Dirty or
sandy water, corrosive che-
micals and solvents can
cause severe damage to
the cleaner.
Danger
Never suck up liquids contai-
ning solvents or acids in the
pure state, for example petrol,
paint solvents or diesel. The
spray mist from the lance is
highly inammable, explosive
and poisonous.
Failure to respect the above
absolves the manufacturer
of all liability and repre-
sents negligent use of the
product.
FIG. 4
COMMAND AND CONTROL DEVICES
Warning
Before connecting the machine to the water supply and to the
power mains, it is essential to know the function of the cleaner's
FIG. 3
FIG. 6
FIG. 5
command and control devices.
SAFETY DEVICES
The safety devices protect the user and the appliance. They
must not be tampered with or used for other than their desi-
gnated purpose.
Safety valve: protects the high pressure hydraulic circuit in
the event of a by-pass valve malfunction or if the hydraulic
circuit is blocked.
The safety valve is calibrated by the Manufacturer and sealed.
Operations involving the safety valve must be performed by a
technical service centre only.
Safety device on lance handgrip: Prevents the trigger on the
handgrip from being operated accidentally.
Thermal cutout: stops the high pressure washer if the electric
motor overheats.
WATER CIRCUIT CONNECTION
FILLING THE DETERGENT
TANK
The detergent tank is not in-
cluded with the water cleaner.
Use a container that is suitable
for holding detergents.
The water cleaner is designed
for the alternative use of two
di󰀨erent detergents from two
separate tanks (g.2).
Detergent tanks are available
as optional accessories.
Warning
From the range of recommen-
ded products, choose the one
most suited to the washing job
to be done (g. 3) and dilute
it with water according to the
instructions on the pack.
Ask your dealer for the cata-
logue of the detergents that
can be used depending on
the type of washing job to be
done and the type of surface
to be treated.
After using a detergent, the
detergent intake circuit must
be flushed out with clean
water.
!
!
!
FIG. 2
FILLING THE WATER SOFTENER TANK
The water softener tank is not included with the water cleaner.
Use a container that is suitable for holding anti-lime agents.
Fill the tank with water softener solution. Use only products
recommended by the manufacturer and/or dealer. Follow the
instructions given on the packaging meticulously. (Do not dis-
perse water softener in the environment).
!
