IPCEagle 415P-AD - Page 10

10

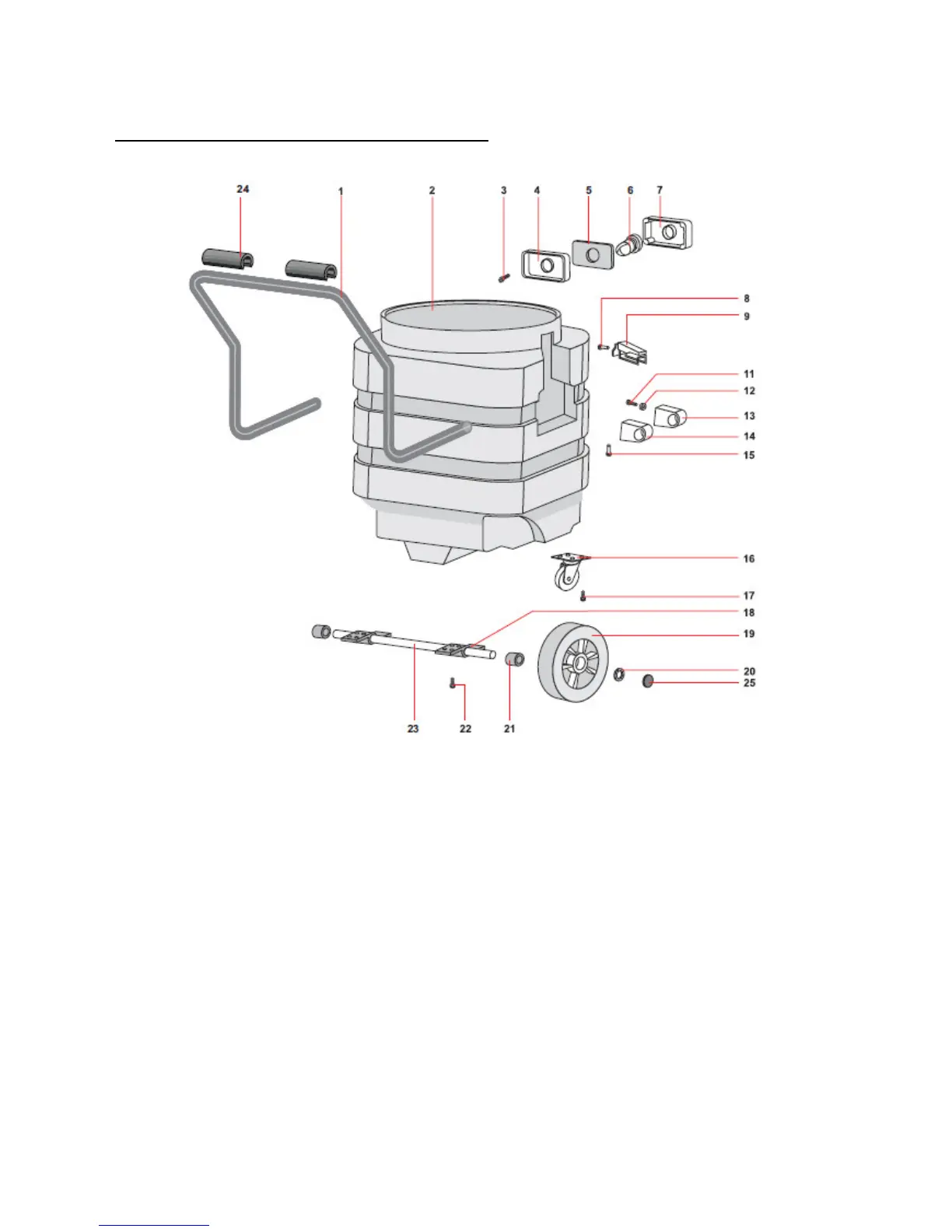

Tank and Cart Assembly 415P-AD, 429P-AD
No. Part# Description Qty.
1 S82558-1 V Handle 1
2 S82623NE Tank, Poly 24g Black 1
3 S81026 Screw 5x30 4
4 S82584G6 Retainer, Tank 1
5 S82846 Gasket 1
6 S82593 Deflector 1
7 S82652AG6VE Inlet Cover w/button 1
8 S81300 Rivet 4
9 S87390 Latch 2
10
11 S81050 Screw, 5x35 8
12 S82974 Washer, Plastic 4
13 S81072-1NE Support, Handle Front 2
14 S81860-1NE Support, Handle rear 2
15 S81302NE Rivet 4.8x17 2
16 S82559 Caster, Swivel 2
17 S82680 Screw 4x15 8
No. Part# Description Qty.
18 S82556 Support, Axle 2
19 S80904 Wheel 2
20 S82557 Retainer, Wheel 2
21 S82607 Spacer, wheel 2
22 S81006 Screw 8
23 S82555 Axle 1
24 S86250 Handle Grip 2
25 S83835NE Cap, Wheel 2
