IPCEagle 415P-AD - Page 12

12

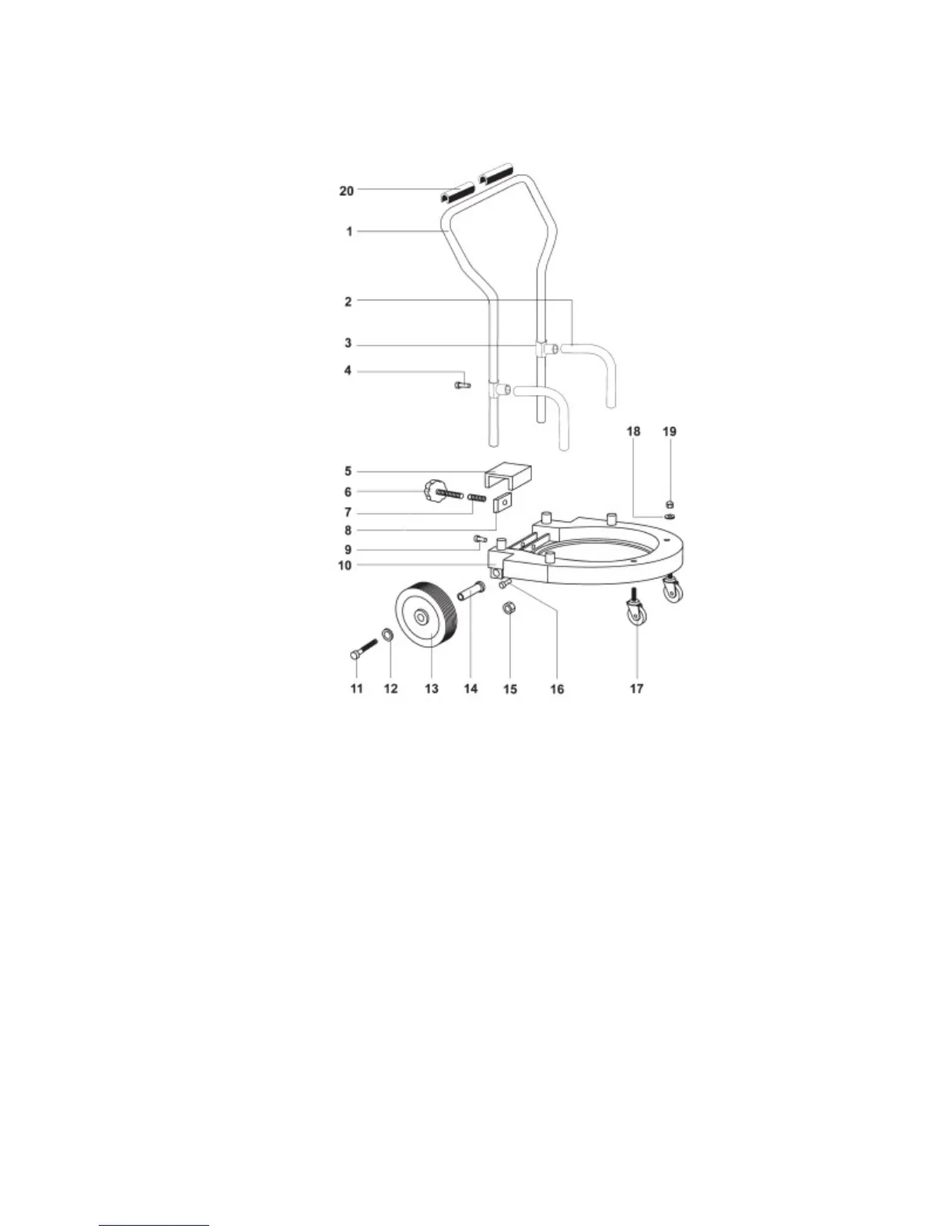

Cart Assembly 415DS
No. Part# Description Qty.
1 S82993 Handle 1
2 S80917 Support, Handle 2
3 S80913 T-Tube 2
4 S81301 Rivet 5x11 2
5 S80902 Block 1
6 S80914 Hand Wheel 8x60 1
7 S81402 Spring 1
8 S81403 Plate, Threaded 1
9 S81301 Rivet 5x11 2
10 S80901 Base, Cart 1
11 S80915 Screw 12x140 2
12 S81028 Masher M12 2
13 S80904 Wheel 2
14 S81401 Bushing 2
15 S82052 Spacer 2
16 S81301 Rivet 5x11 2
17 S80479 Caster 2
18 S81012 Washer 2
19 S80478 Nut M10 2
20 S86250 Hand Grip 2
