17
T80020

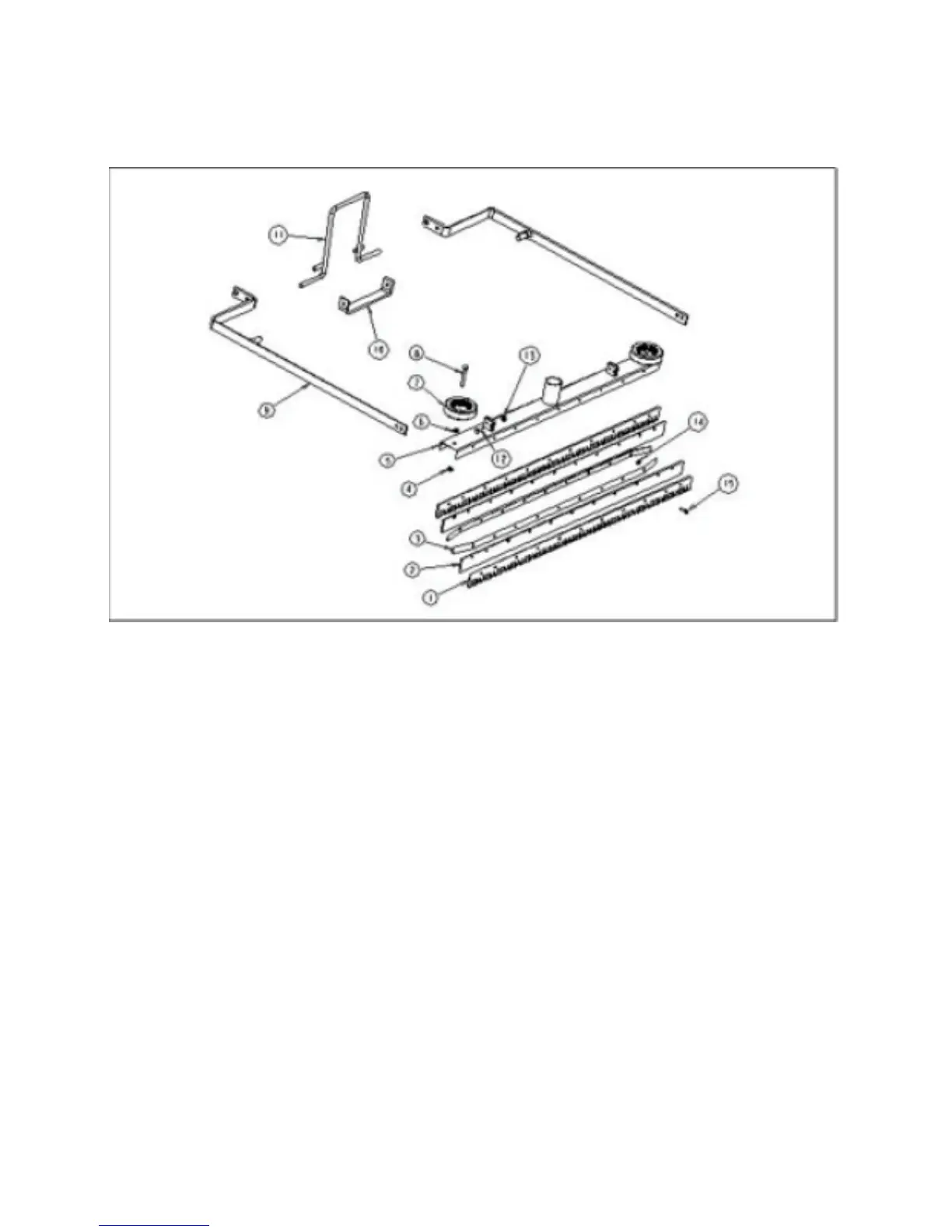

30” Front-Mounted Squeegee fits 415/429/430 models with Polyethylene Tanks
No. Part# Description Qty.
1 BD735602 Blade, Slotted 2
2 BD735601 Blade, Solid 2
3 BD7015509 Support, Blade 2
4 BD735609 Nut, Nylock 1/4-20 2
5 BD715508 Housing Assy. 1
6 BD735609 Nut, Nylock 1/4-20 2
7 BD735607 Wheel, Guide 2
8 BD735608 Bolt, 1/4-20 x 1.75” 2
9 BD705201 Lifting Arm Assy. 2
10 BD705202 Cross Member 1
11 BD705203 Latch Assy. 1
12 BD735610 Bolt, 1/4-20 x 1” 6
13 BD735609 Nut, Nylock 1/4-20 6
14 BD735605 Nut, Nylock 10-24 22
15 BD735603 Screw 10-24 15
Not Pictured T80021 Hose Assy. 1
