CHECKING UPPER TAPE PLATE

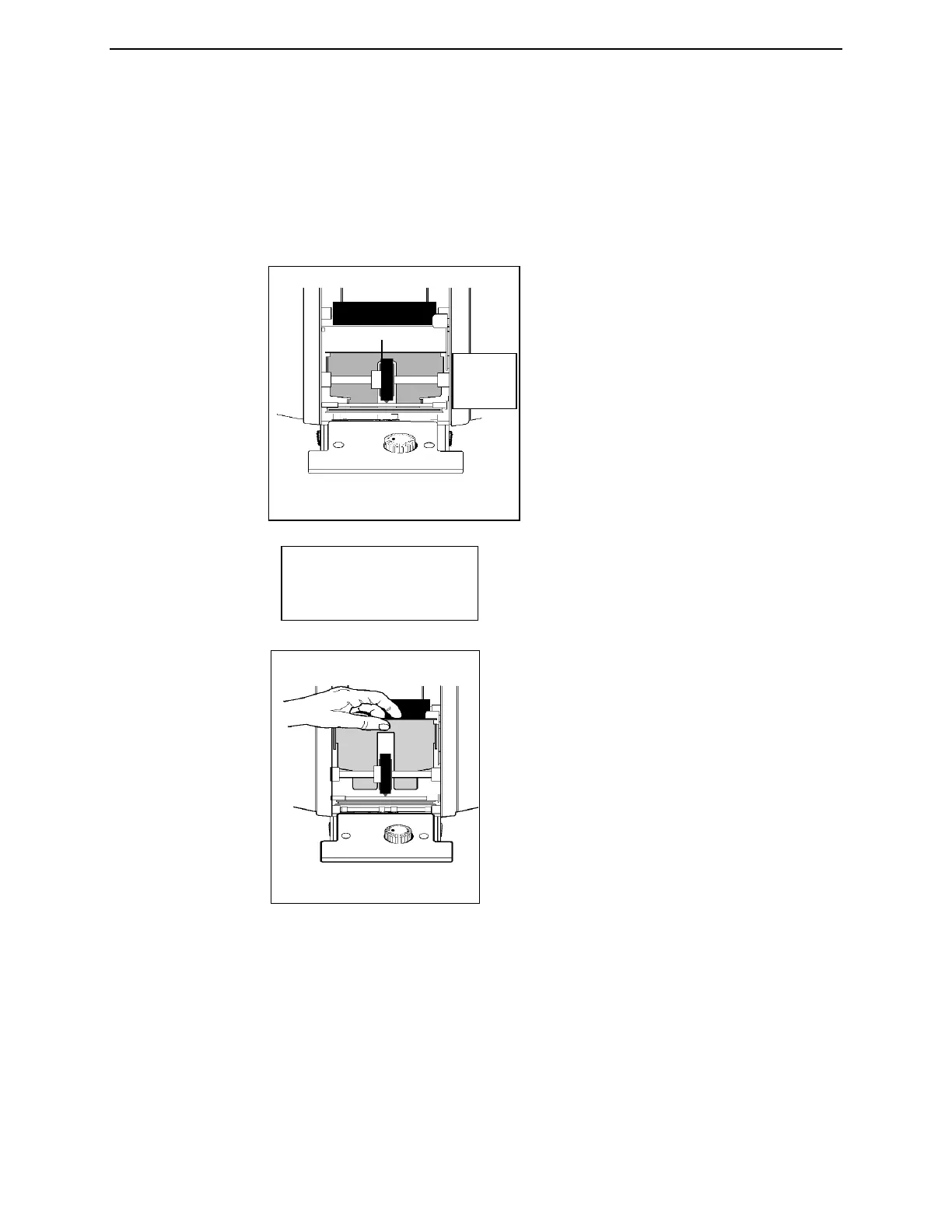

Make sure the upper tape plate is in its proper position as shown in Figure 6. If the plate is not correctly
positioned:
1. Hold the upper tape plate by its rear edge, See Figure 7, and guide it forward so that the front slot
centers around the drive wheel.
2. When the cutouts in the sides of the plate are above the retaining buttons, drop the plate down and
slide it forward as far as it will go.
NOTE: There is a round guide bar just before the cutting blade. The front of the upper tape plate should
be under that guide bar.
