5. Position the bottle onto the right side of the dispenser. The spring-loaded center of the bottle’s cap
must be on the pylon protruding up from the water tank. See Figure 10.
CAUTION: Under normal operating conditions, the bottom of the
heater assembly may be HOT. Handle the assembly ONLY by the
tabs sticking out from the sides. See Figure 9.
!

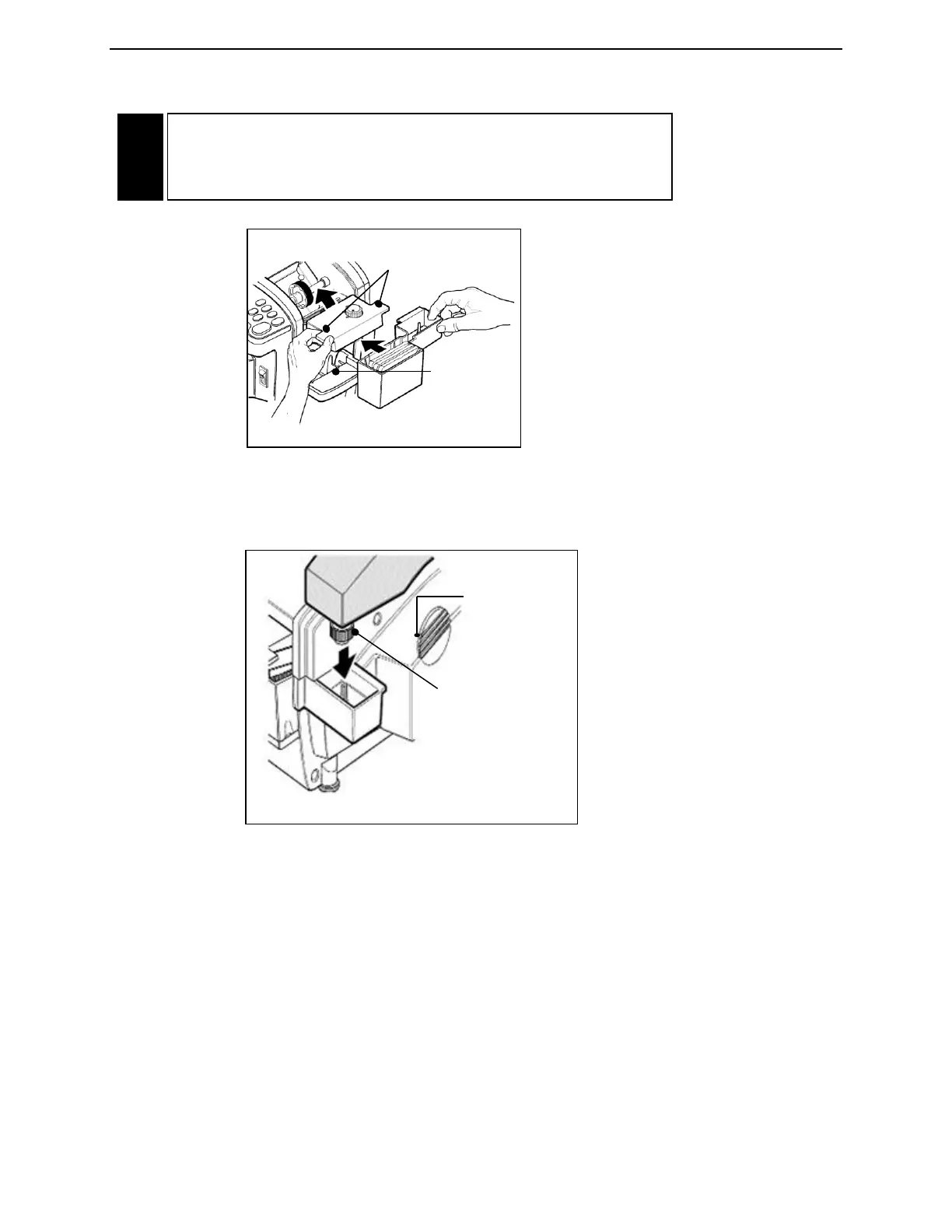

FIGURE 9 - Handling the Heater Assembly
The tank will
drop slightly
into this
shelf when it
is correctly
positioned
Use these tabs to raise
and lower the heater
assembly
FIGURE 10 - Attaching the
Bottle to the Dispenser
Bottle
normally
fits in this area
Center of the
bottle cap fits
over the pylon
in the tank
