iPower PWF2701SH - Assembly

SETUP 10
ASSEMBLY:
FOR TECHNICAL QUESTIONS, PLEASE CALL 1-855-888-3598
4. Connect the Pressure Hose to the Pump
RXWOHW¿WWLQJDQGWLJKWHQWKHQXW¿UPO\E\
hand, DO NOT use any tool to tighten.
See Figure D.
Figure D
2.
See Figure B.
Figure B
Figure C
Take out the End Cap in the Frame,attach
the Handle on to the Frame by inserting
the clip.
3. Attach the hose Holder to the Panel.
See Figure C.
5. Connect the Pressure Hose to the
handle of the Spray Gun and tighten the
QXW¿UPO\E\KDQG
See Figure E.
Figure E
6. Remove the protective cap on the Wand
Wand
Spray Gun Tip
inlet. Insert the Wand into the Spray Gun
WLSDQGWLJKWHQWKHQXW¿UPO\E\KDQG
See Figure F
Figure F

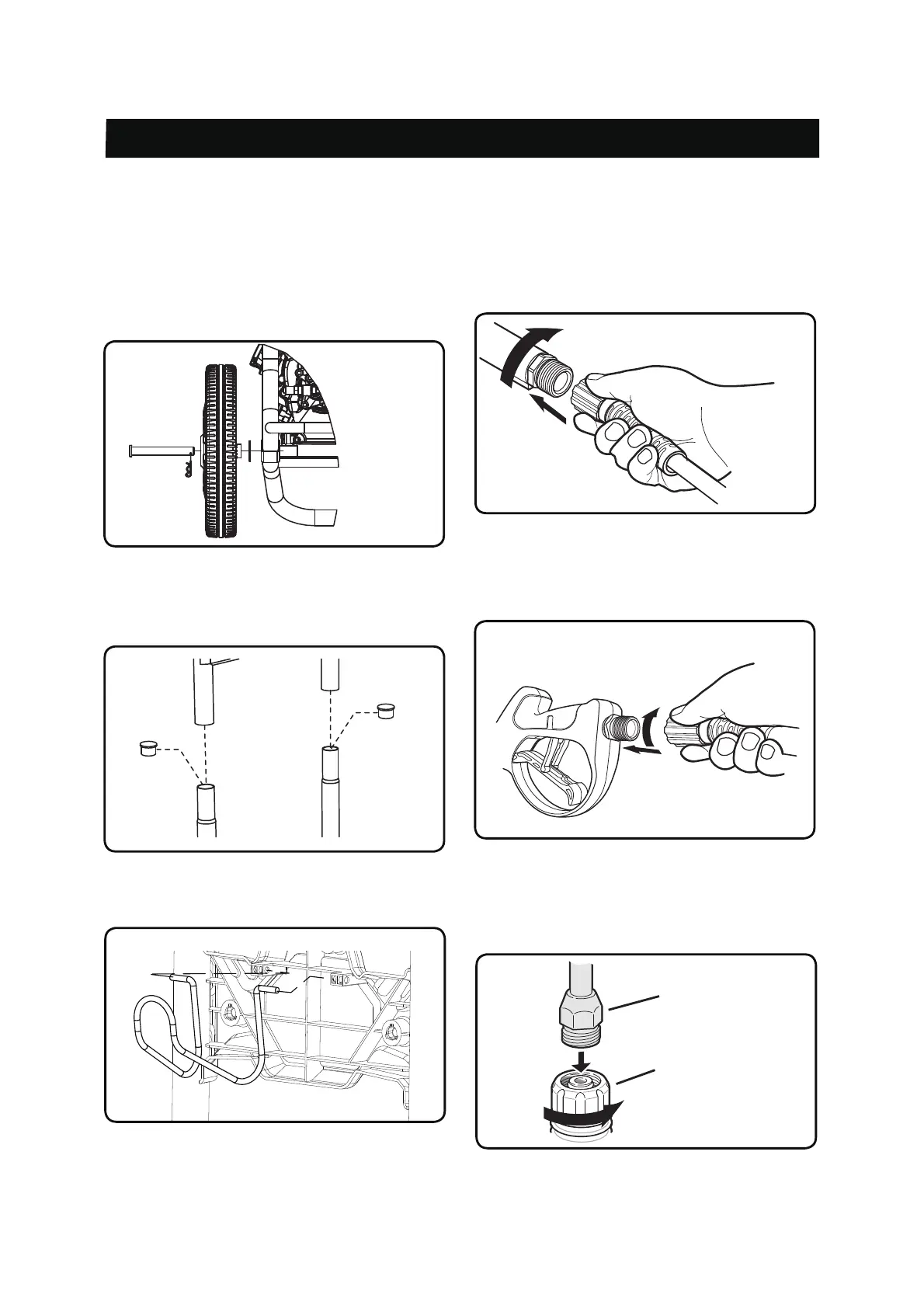

1. Insert the axle through the wheel,
flat washer and frame sleeve in turn,then
insert the pin lock clamp through the
hole on the axle.
See Figure A.
Figure A
