Washer-Extractors
30
5-08-51

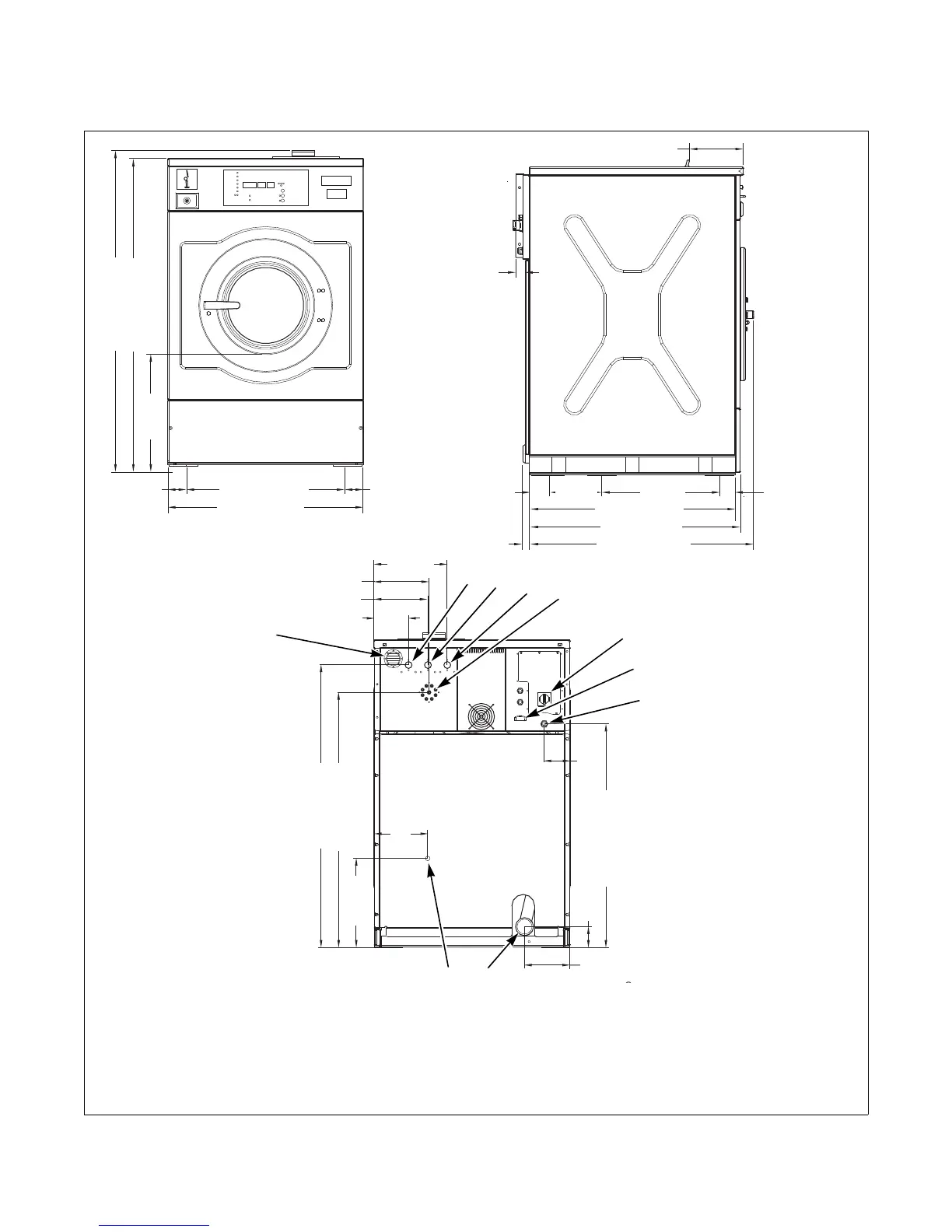

Machine Dimensions - Model IWF055 (2-speed)
1 Hard Water Connections .75 in. 6 Ventilation Tub
2 Warm Water Connections .75 in. 7 Electrical Connections
3 Soft Water Connections .75 in. 8 Drain Valve
4 Liquid Soap Connections 9 Steam Connections
5 Main Switch 10 Ventilation Soap Dispenser
Figure 17
54.17 in. (1376 mm)
53.19 in. (1351 mm)
1.97 in.
(50 mm)
9.49 in.
(241 mm)
26.77 in. (680 mm)
3.54 in.
(90 mm)
19.69 in.
(500 mm)
33.86 in. (860 mm)
354 in.
(90 mm)
0.55 in.
(14 mm)
38.76 in. (984.5 mm)
20.39 in.
(518 mm)
11.1 in.
(282 mm)
35.43 in. (900 mm)
36.5 in. (927 mm)
CHM2127N
CHM2126N
CHM2128N
1.97 in.
(50 mm)
12.64 in.
(321 mm)
5.94 in. (151 mm)
9.49 in. (241 mm)
48.9 in. (1242 mm)
44.1 in. (1121 mm)
9.25 in.
(235 mm)
15.41 in.
(392 mm)
38.68 in. (983 mm)
4.53 in.
(115 mm)
7.88 in.
(200.5 mm)
3.62 in.
(92 mm)
10
1
3
7
5
2
6
89
4
1.93 in.
(49 mm)
9.29 in. (236 mm)
