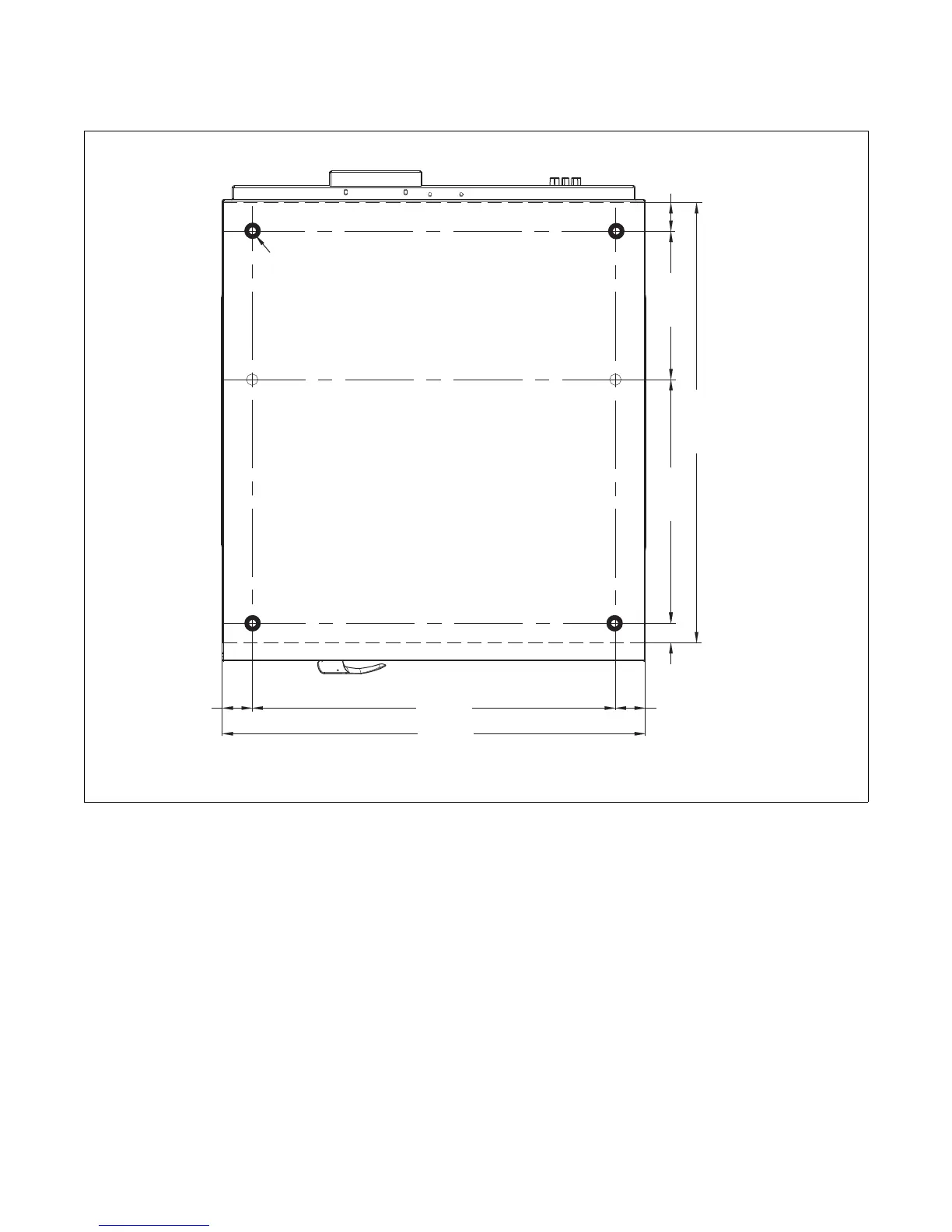

Mounting Bolt Hole Locations - Model IWF075 (2-speed)
CHM2163N
Figure 20
CHM2163N
1.81 in.
(46 mm)
33.46 in.
(850 mm)
2.64 in.
(67 mm)
22.44 in.
(570 mm)
40.55 in.
(1030 mm)
2.76 in.
(70 mm)
13.66 in.
(347 mm)
2.76 in.
(70 mm)
38.98 in.
(990 mm)
ø1.06 in.
(ø27 mm)
