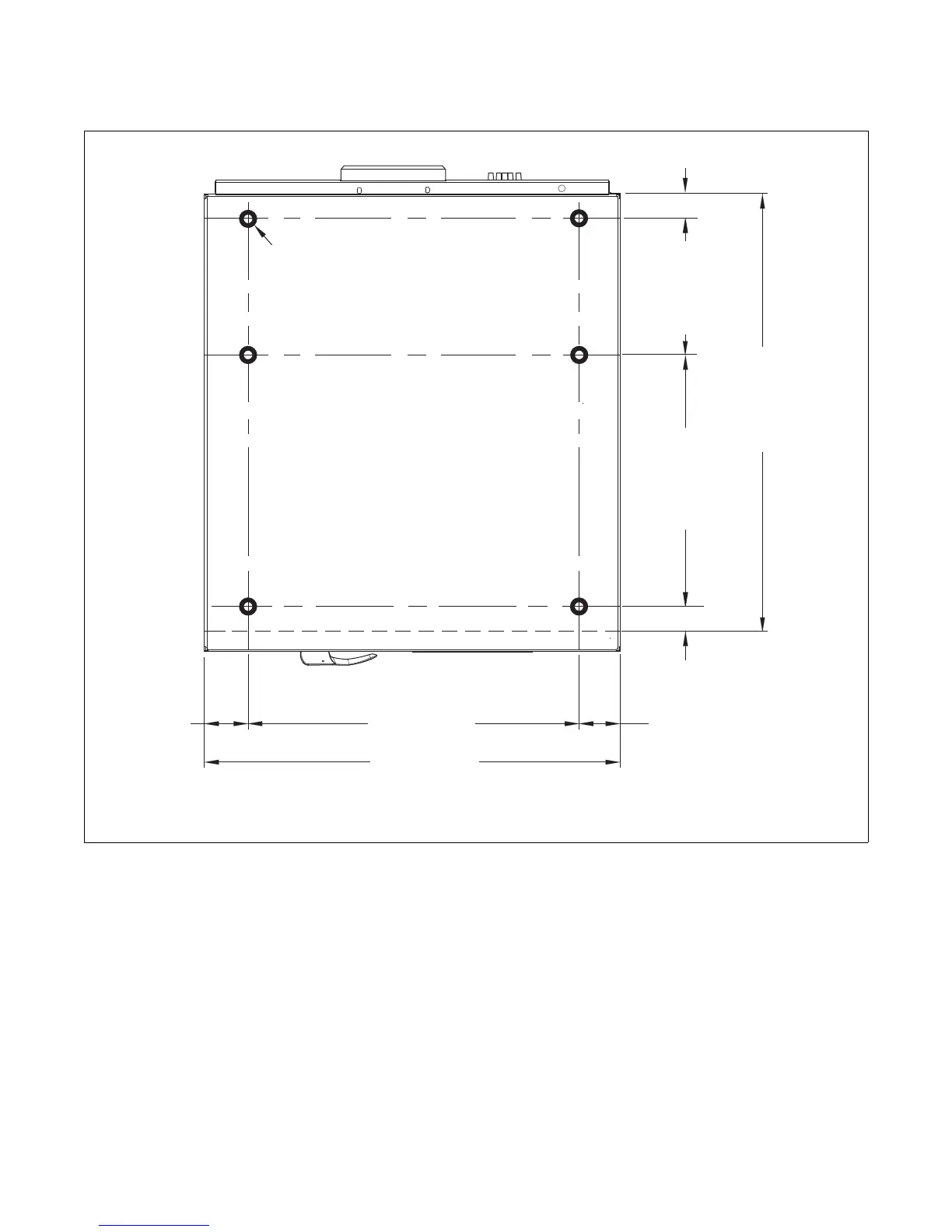

Mounting Bolt Hole Locations - Model IWF055 (M-speed)
CHM2170N
Figure 40
CHM2170N
3.54 in.
(90 mm)
26.77 in. (680 mm)
1.97 in.
50 mm)
1.97 in.
(50 mm)
11.1 in. (282 mm)
35.43 in. (900 mm)
20.39 in. (518 mm)
3.54 in.
(90 mm)
33.86 in. (860 mm)
ø1.06 in.
(ø27 mm)
