IPSO WE234 - Technical Remarks and Wiring; Electrical Heating Connections; Motor Internal Wiring

28
V
+
6
3x220V R5 3x380V R5
12kW 3x2kW V LC1D253 + LC1D0901
3x2kW
15kW 3x2kW V LC1D253 + LC1D1810
3x3kW
18kW 3x3kW V LC1D323 + LC1D1810
3x3kW
21kW 3x3kW ------ ------ + LC1D1810
3x4kW ------ ------ V LC1D1810
24kW 3x4kW ------ ------ V LC1D1810
3x4kW ------ ------ V LC1D1810
Heating
Technical remarks

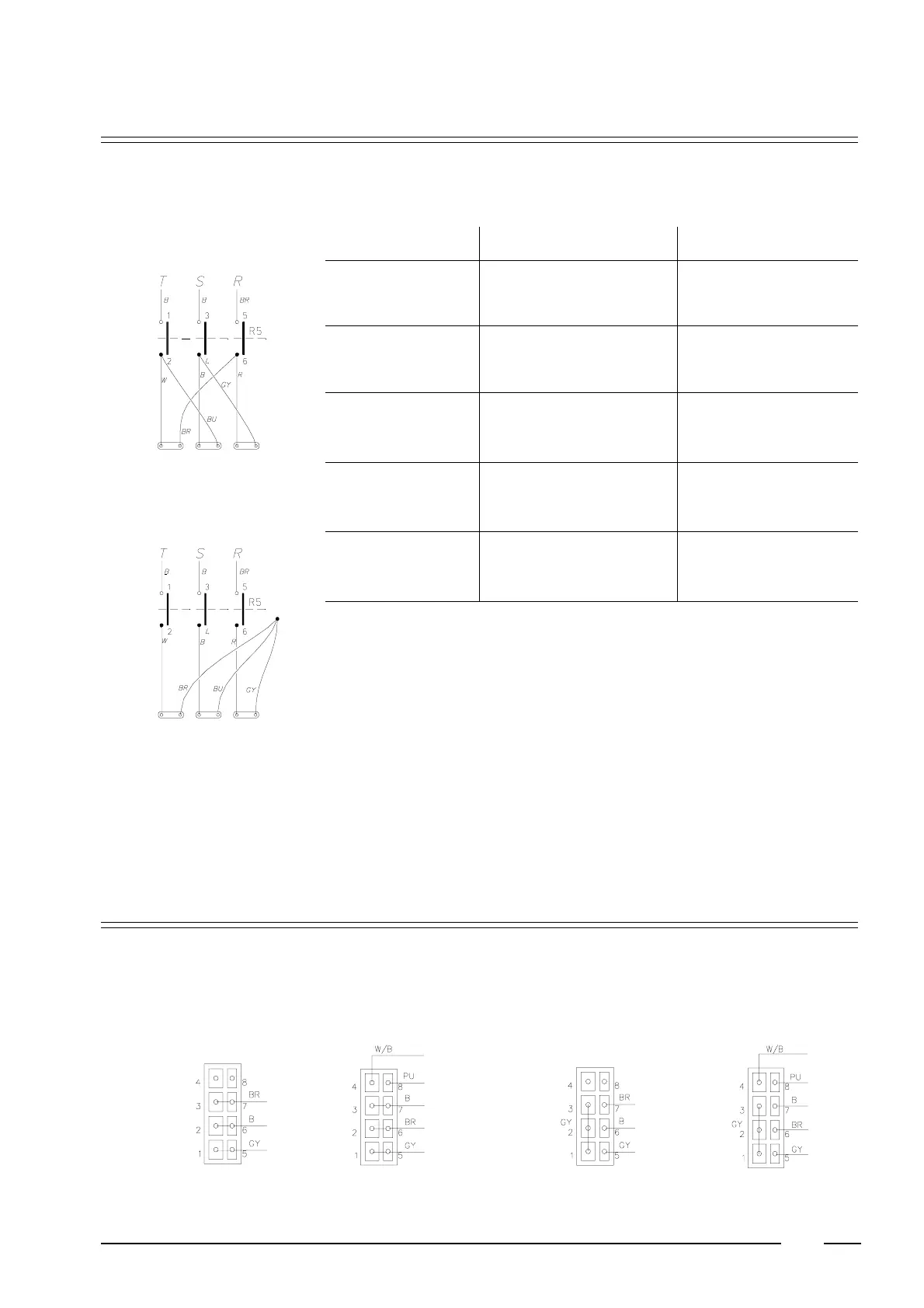

Internal connections of the electrical heating
B = Black Br = Brown
Gy = Grey Bu = Blue
R = Red W = White
PU = Purple W/B = White/black
Remark:
Other executions are available as options.
Internal connections of the motors
220V 380V
Low speed High speed Low speed High speed
