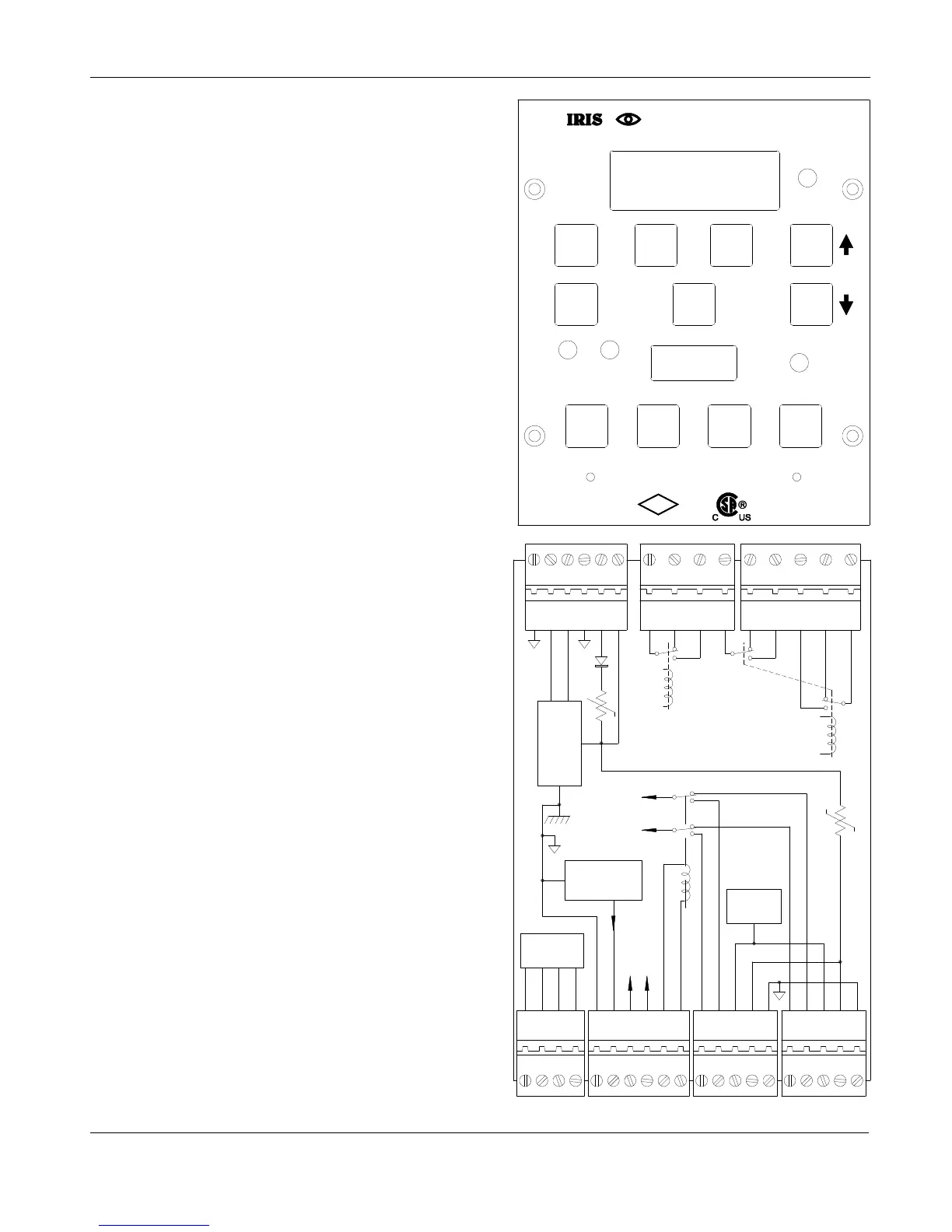

IRIS MODEL P522 APPLICATION MANUAL ADDENDUM 2A
15 May 2008
F1
.75A
F2
.25A
SC C
SC OFF
SC ON
RF C
RF OFF
RF ON
RF ON
RF OFF
RF C
+TX
-TX
+RX
-RX
GND
SIG
GND
SIG
SC
+V
GND
GND
AC1
AC2
GND
BAT
+24V
METER
+
RMT
+
CHAN
SEL
+
V.H.
SEL
V.H. A
____ _____
SIG
GND
SIG
SC
+V
GND
V.H. B
____ _____
RS-422
ANALOG
CURRENT DRIVE
0-20mA OR 4-20mA
CHAN
SELECT
SHUTTER
DRIVE
SIG
SIG GND
SC
RELAY
RF
RELAY
+24V
24V
10W
DC
POWER
SUPPLY
VH
SEL
RELAY
OUT
CHANGES FOR
P522AC
SIGNAL PROCESSOR
The P522AC is an upgrade
to the P522 Signal Processor.
It features universal AC input power, a higher current
rating for the relay contacts, a +24V OUT terminal to
power the SEL inputs, and compatibility with all
S5XX vi
ewing heads. All the user features of the
earlier P522 are maintained plus the self-
resetting
fuses, front panel
lettering and the source impedance
resistor requirement of Addendum 1.
P522AC SPECIFICATIONS
ELECTRICAL
Main Power - 85- 264 VAC, 47- 440Hz,
0.3A MAXIMIM
Battery Power - 22-24 VDC, 130mA
plus 100mA/View Head
ENVIRONMENTAL
Ambient Temp. - 0
o
C to 52
o
C CSA Rating
- 0
o
C to 60
o
C FM Rating
OUTPUTS
Flame Relay - 2 Form C Contacts
Self-Checking Relay - 1 Form C Contact
Contact Ratings - 5A @ 30VDC, 125VAC
and 277VAC
Analog Signal - 0-19.8mA or 4-19.8mA
360 ohms max. resistance
Power to View Heads - fused with self-resetting
fuses at 0.25A
+24VDC OUT - 50mA MAXIMUM
INPUTS
Isolated Chan. Select - 7.5 - 30 VDC
Input R = 3900 ohms
Coil for V.H. Select - 17- 48 VDC (24 VDC nom)
SERIAL COMM.
RS-422 baud rate - 4800 to 38400, user selected
Cable - Two twisted pairs
VIEWING HEAD CABLE:
When using S5XX
view heads in ordinary locations, use IRIS C-
328 cable
or another cable running in a metal c
onduit to the
control room or signal processor enclosure,
or use
IRIS C-330 cable or a shielded
cable with UL ITC and
CSA CIC (C22.2 No. 239) ratings without conduit.
When using S55X viewing heads in hazardous
locations the above cabling specifications als
o apply,
except that if conduit is used, it must be sealed at both
ends.
Contact information:
Sales and Applications: Factory and Repairs:
IRIS Systems Inc. JB Systems, Inc.
#7583 Vantage Place 4944 113
th
Ave. N
Delta, B.C. Canada Largo, FL 33760
V4G 1A5 Ph: 727-545-3900
Ph: 800-667-IRIS Fax: 727-547-9589
Ph: 604
-
584
-
4747
