IRIS P522

IRIS MODEL P522 APPLICATION MANUAL
Page 7
IRIS CABLE
3 CONDUCTORS PLUS 1 COAX
3CONDUCTORS: 16 AWG 19 STRAND INSULATED WITH
CROSSED-LINKED-POLYETHYLENE .017 THK
COLORS: BLACK-RED-GREEN
1 COAX: 16 AWG 19 STRAND INSULATED WITH
CROSSED-LINKED-POLYETHYLENE .017 THK
COLOR WHITE
36 AWG BRAIDED SHIELD 90% COVERAGE
WITH .012 THK JACKET COLOR BLACK
CABLED: POLYPROPYLENE FILLERS FOR ROUNDNESS
JACKET: CROSSED-LINKED-POLYETHYLENE
STRIP 3/8“ TYPICAL
GROMMET
FLAT WASHER
CABLE ENTRY NUT
SHIELD *
CABLE
PREPARATION
1 3/4“
(TYP)
CABLE
CABLE CLAMP
CONNECTOR WITH
REAR COVER REMOVED
INSULATE SHIELD WITH SHRINK
TUBING LEAVING 3/8“ STICKING OUT
CONNECTOR JACKSCREW
FINAL ASSEMBLY
* CABLE IS SHOWN WITH SHIELD
ALREADY REMOVED FROM WHITE WIRE

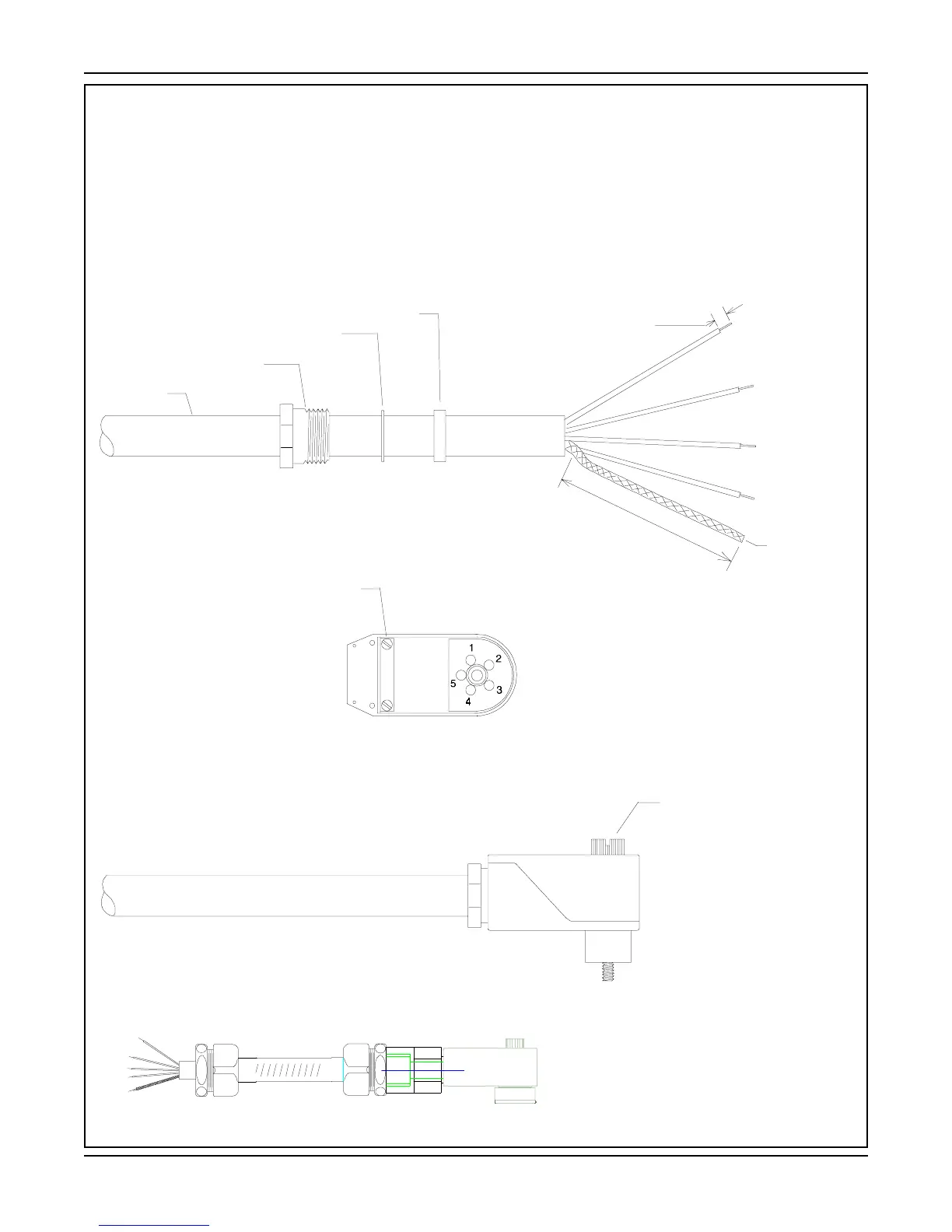

FIGURE 3 - WIRING AND ASSEMBLY - VIEWING HEAD
Optional LTA Adapter
