USING THE MOBILE APP
ANDROID DEVICE
On your Android device, open the “Google Play Store” and download and install
“IROAD”
1
After running the application, register your device.
- Activate the registration stand-by mode by pressing the Wi-Fi registration button
“Stand-by mode for the registration” (Voice guidance)
2
Tap Connect Now
- From the IROAD, select your dashcam.
- The SSID and model will be shown.
- Once the user selects the device, it will be registered & connected.
3
iOS DEVICE
On your iOS device, open the “App Store” and download and install
“IROAD”
1
After running the application, register your device.
- Activate the registration stand-by mode by pressing the Wi-Fi registration button
“Stand-by mode for the registration” (Voice guidance)
2
Tap Connect Now
- follow the on-screen instructions to connect the product to your smartphone.
3
Select the Wi-Fi Network
- From the Wi-Fi setting menu on your smartphone, select the Wi-Fi network starting with
“IROAD”
4
Enter Password
- Enter “qwertyuiop” in the password field
Now the product is connected to your iOS device via Wi-Fi
5
The password is the first row of the alphabet on the keyboard
●
USING THE MOBILE APP
2021.07.30 10:30:15
2021.07.30 10:30:15
2021.07.30 10:30:15
2021.07.30 10:30:15
2021.07.30 10:30:15
Normal
Normal
Normal
Normal
Normal
2021.07.30 10:30:15
0 km/h
Normal
info
Security LED
Battery Protection
Power OFF
12V / 24V
LOW BATTERY PROTECTION
System
SECURITY LED
high temperature shutdown
HIGH TEMPERATURE SHUTDOWN
Main Screen
- Displays information about the connected product.
- Move to the live view screen.
- Playback the recorded videos.
- Configuration the dashcam settings.
A
Playback recording for Front / Rear Camera
- Playback the recorded videos.
- Choose video clip from the list and save it.(Video or Image)
B
Configuration System
- Configuration the dashcam settings. (Once settings changed, the device will be rebooted)
C
CBA
Connect with Dash cam
IROAD DASH CAM
live view Recording list Settings
USING THE PC VIEWER
1
2
1
Front/Rear video playback screen
1
Video Controller
2
map / Full-screen
Switch screens (Front / Rear)
7
Dashcam settings
Minimize / Maximize / close the PC viewer
8
Speed indicator
(only when GPS/OBD2 is connected)
3
Display the vehicle status
Transmission / Brake, Acceleration
Turn signal / RPM / Engine coolant temp
Steering angle
(only when OBD2 is connected)
6
G-sensor information
4
The following provides brief information about the PC VIEWER screen layout.
3
6
5
7
8
4
Recording file list
5
SPECIFICATIONS
Model
Image sensor
Resolution/Frame
Viewing angle
Wi-Fi supported
Wi-Fi button
Audio input
Video/Audio
Vibration Sensor
Voice guidance
External GPS
OBD Scanner
Storage medium
Recording mode
Uninterrupted power
Power supply
Operating temperature
Humidity
Dedicated PC viewer
Application
IROAD X11
Front : SONY STARVIS(IMX335) Image Sensor
Rear : SONY STARVIS(IMX335) Image Sensor
Front & Rear : QHD 2560x1440 / 30fps
Front & Rear : 155°
Smartphone Playback/Settings, Firmware Automatic Update
Activate "Stand-by Mode for Registration"
Embedded MIC
MP4 / ADPCM
3-axis Acceleration Sensor
Effect sound/buzz alerted to inform the condition of the device
Voice guidance supported
Synched with Google map,
inform the location and travelling speed of the vehicle
Real-time Vehicle information, Vehicle Diagnosis & Fuel Economy Statistics
Micro SD 32GB ~ 512GB (Class10)
Driving, Event(Impact), Parking(Timelapse, Motion Detection)
Uninterrupted Power
(Low voltage cut-off, overheating prevention is embedded)
DC 12V/24V
-20 ~ 70° C (Storage temperature : -30 ~ 90° C)
10 ~ 95%
Win7, Win8, Win10 (64Bit), Mac (OS X 10.7 64Bit or higher)
(Latest update, 4K resolution and HDCP 2.2 display support,
Intel 7 Core Processor and above or 4K support graphic card)
Android 6.0, IOS 10.0 or higher : Firmware update supported
PACKAGE
Basic Components
Front Camera
/ Cradle
Rear Camera
/ Cradle
Uninterrupted
Fuse Cable
IROAD Genuine
MicroSD
Wi-Fi USB Dongle User Manual
/ Warranty
Rear Camera
Cable
Optional Items
OBD Scanner External GPS
Antenna
Cigar Jack
Power Cable
OBD-Ⅱ Power Cable
(Non-Electric / Eletric)
USB MicroSD
Reader
The Basic components may change without prior notice.
●

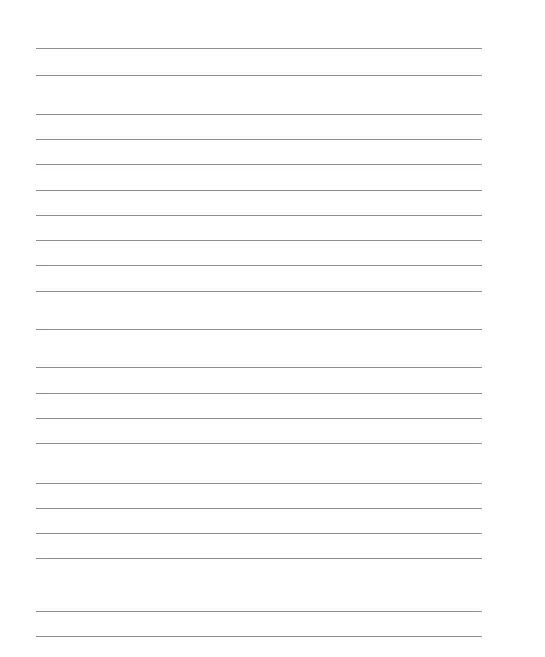

MEMO
