Assembly:

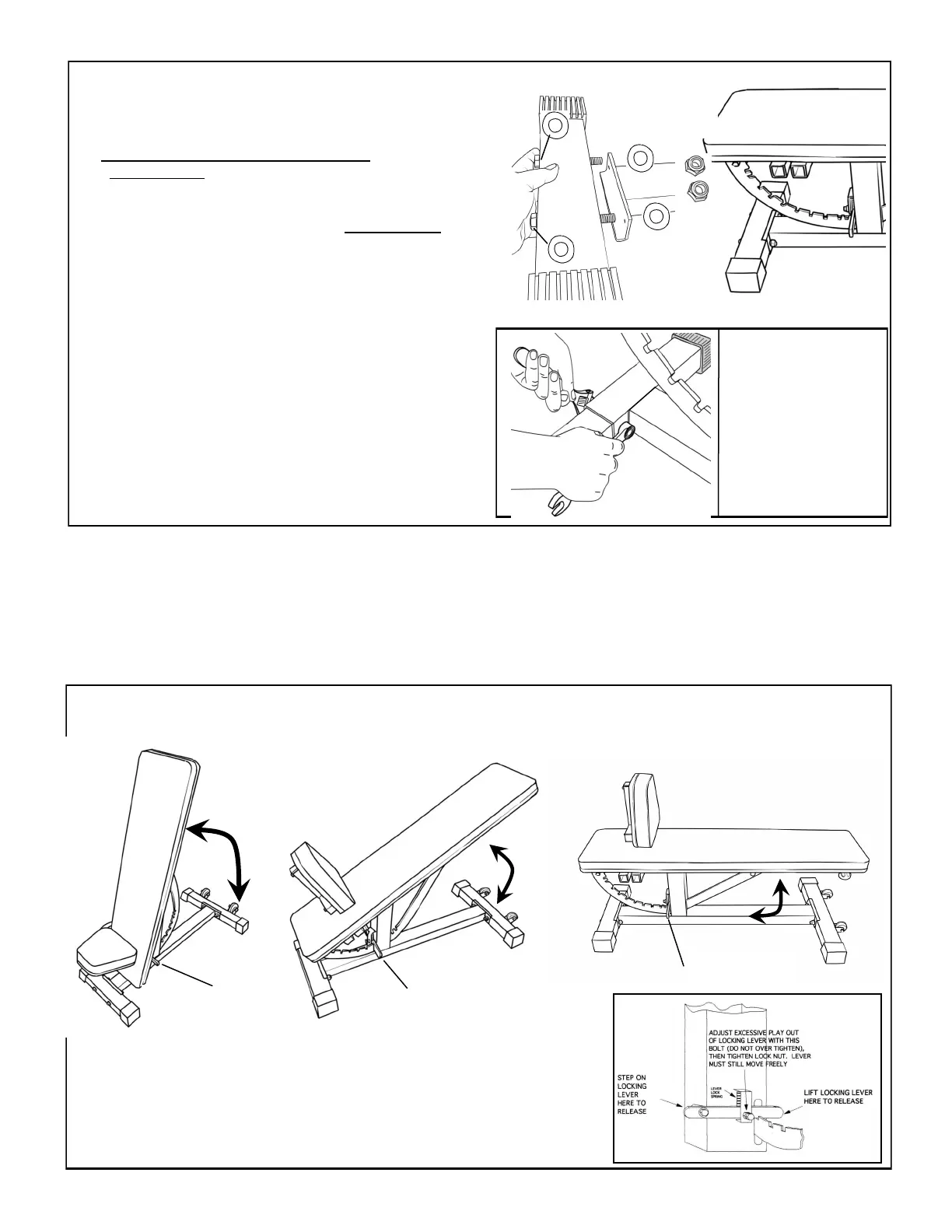

1. Remove contents from box. Find bolt pack.
2. Install foot while bench is upside down for convenience
but do not tighten. 2x M12 x 100mm bolts 4x M12
Washers and 2x Nylock Nuts.
3. Repeat process with opposite foot. Do not tighten.
NOTE: Foot with Wheels can be mounted on either
side according to preference, but the standard posi-
tion is as shown in Manual.
4. Turn Super bench upright with feet on the floor before
tightening bolts. Tighten bolts on level surface only to
assure the bench is level. Bolt tension of 30ft lbs recom-
mended.—Do not overtighten which may cause leveling
issues.
5. Remove adhesive backing from Ironmaster Emblem and
install as shown in desired location.
NOTE: Assembly requires 2x 19mm wrenches (Not
included).
Operation:
Be sure the locking lever enters the locking ring notches completely before using the bench. To adjust, lift the locking
lever and move the bench to any of the 11 desired angles and lock lever into position. The incline seat simply plugs in
from the side into position. There are three choices of plug ins available to best match height/comfort of user.
CAUTION: Keep fingers clear of locking lever where it engages with the locking ring.
CAUTION: Make sure locking lever seats completely into any of the 11
positions within the locking ring. Failure to locate properly my result in the
locking lever slipping out of position during use. If the locking ring cannot
locate correctly please see troubleshoting. Should these adjustments fail
to solve the problem, discontinue use and contact Ironmaster for
further assistance.
The Super Bench can be set to 11 angles: 0, 5, 10, 20, 30, 40, 50, 60, 70, 80, and 85 degrees.
Tighten securely once
both feet are installed
M12 Washer and M12
Nylock Nut on inside of
frame
Install M12 X100mm bolt
and M12 Washer from
outside
LOCKING LEVER
LOCKING LEVER
LOCKING LEVER
100mm Bolt
12mm Nylock Nut
Washers
